Commercial flush bolts

Our range of flush bolts are easy to install and manufactured from durable materials meaning they stand the test of time - available with radius corners for simple door preparation and improved styling.

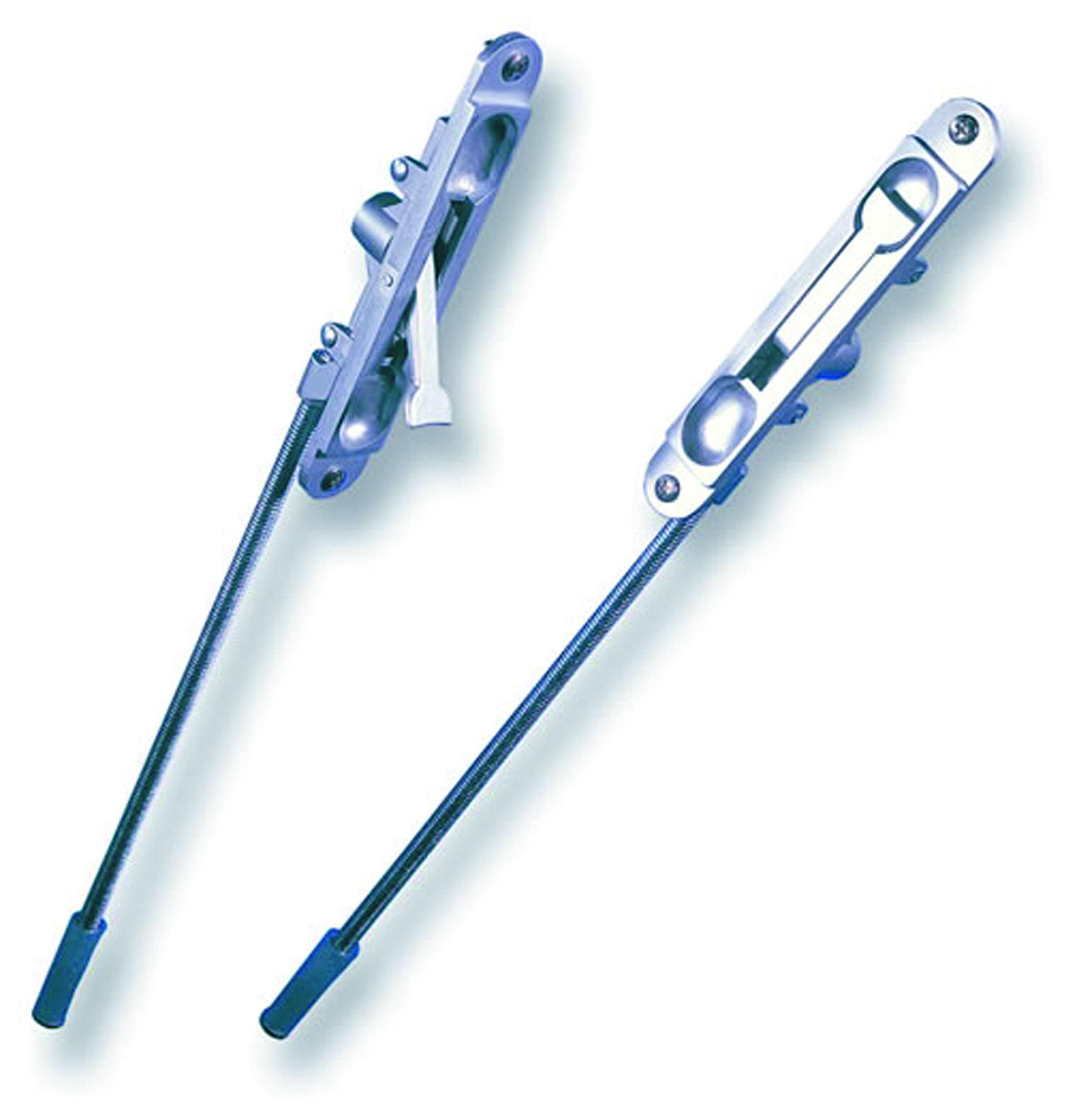

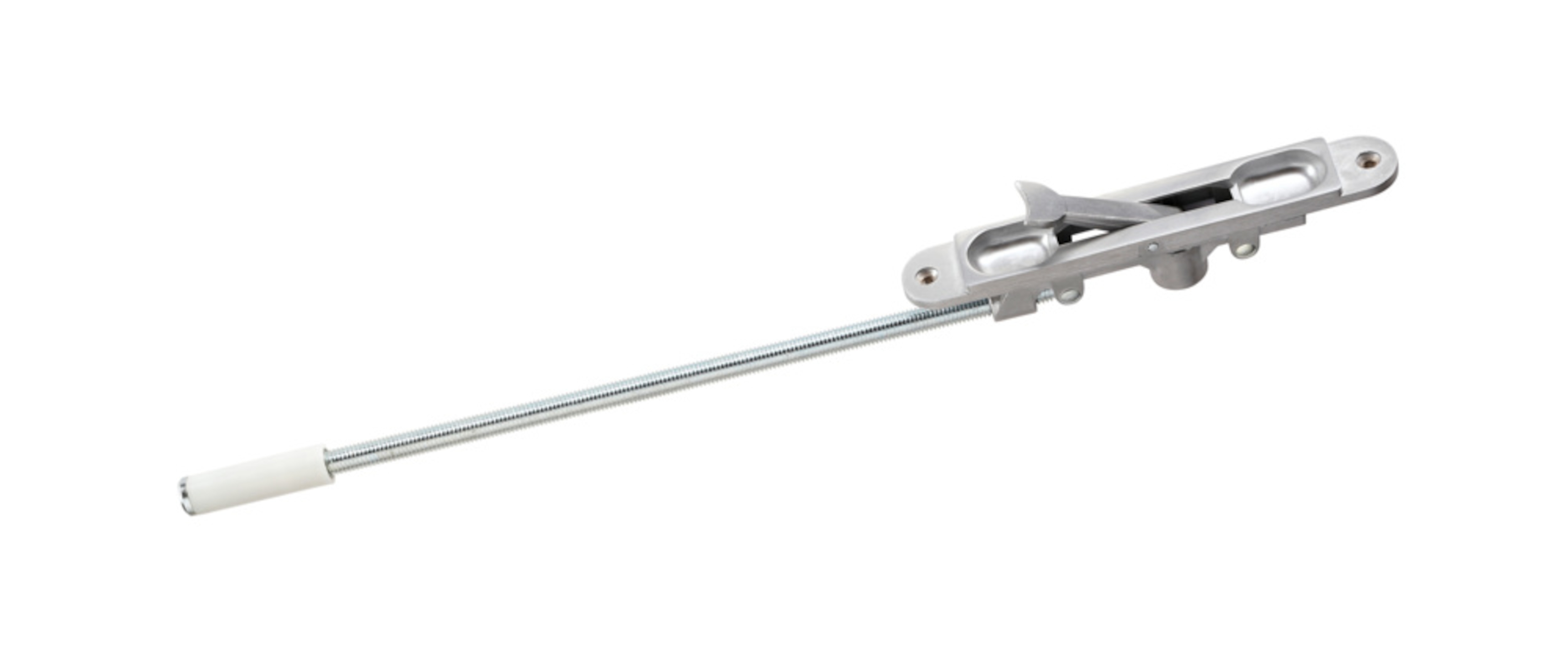

6201-01 flushbolt
6201 flush bolt used for securing the passive leaf of a pair of doors.

Dimensions : 305 x 23 x 24.8mm

Overall flush bolt length: 305mm

Overall rod length: 270mm

Case: Die-cast zinc alloy body mechanism

Bolt: Hardened steel bolt, zinc plated, anti-rattle sleeve

Bolt throw: 18mm

Rod: 7mm zinc plated steel, 40mm thread length

Finish: SC

Brackets: Not supplied

Supplied with: Aluminum door fixings

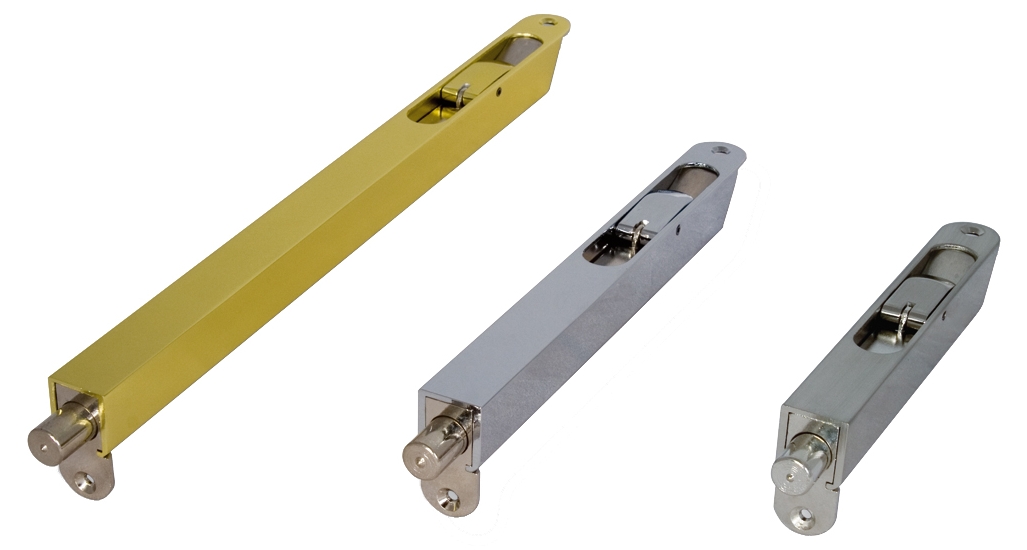

8060 satin anodised aluminium 200mm flushbolt
Stainless steel flush bolt, used for securing passive leaf on a pair of doors. Available with 2mm intumescent strip for 30 and 60 minute fire doors.
8060 stainless steel 150mm flushbolt
Stainless steel flush bolt, used for securing passive leaf on a pair of doors. Available with 2mm intumescent strip for 30 and 60 minute fire doors.
8060 stainless steel flush bolts
Experience seamless security with the 8060 Flush Bolts. Designed for durability and elegance, these bolts effortlessly blend into your door, providing a sleek and reliable way to secure your space. Perfect for both modern and classic interiors, they offer peace of mind with a touch of sophisticated style.
