Rack and pinion

Rack and pinion door controls are the most traditional and widest used style, they are supplied complete with a link arm to allow the opening and closing motion. We offer some of the most efficient rack and pinion closers on the market to ensure doors are easier to open whilst retaining a strong closing force. The range comes in a variety of finishes and every closer has a matching arm set, meaning it is easier to suite and they can be styled to meet almost any application. Our extensive range of rack and pinion door controls for doors and gates have fully adjustable closing and latching speeds which are guaranteed to be consistent across a wide range of temperatures.

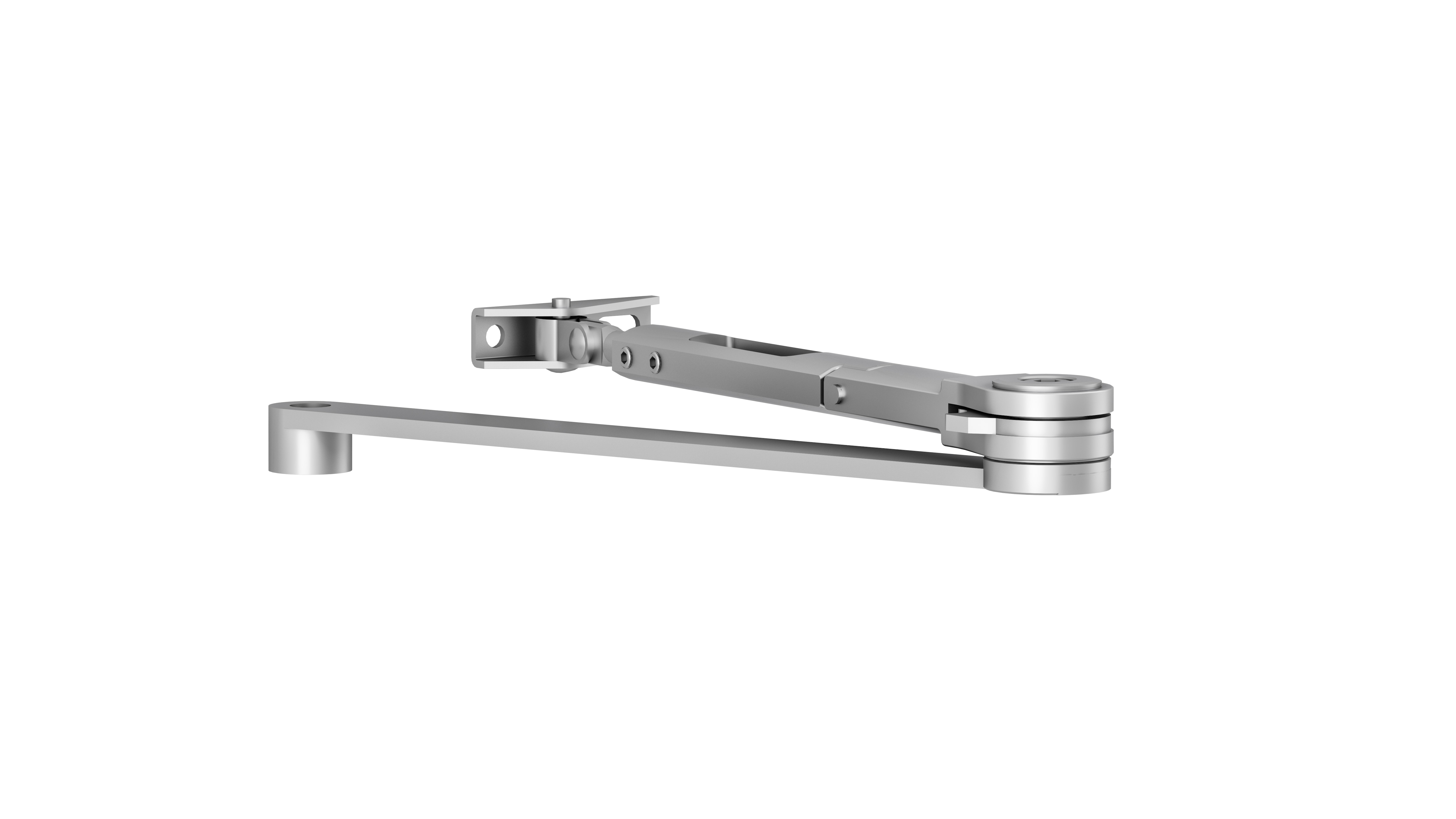

Accessories
Accessories designed for use with ASSA ABLOY rack and pinion door closers.

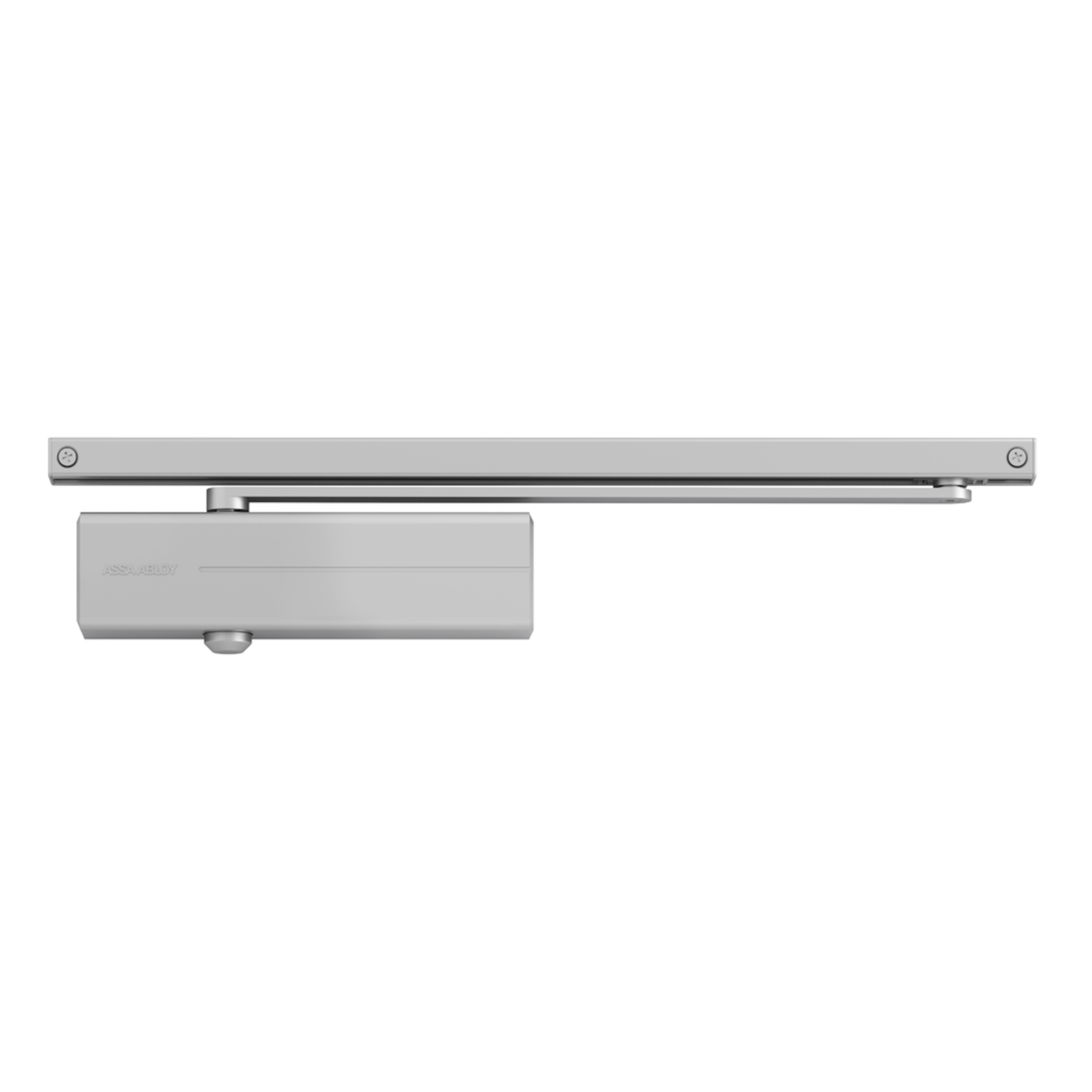

ASSA ABLOY DC135 Fixed Size EN3 Rack and Pinion Door Closer
Our ASSA ABLOY DC135 fixed size EN3 rack and pinion door closers are designed for doors weighing up to 60kg and max door width of 950mm. Suitable for use on metal doors only, fire-rated to FD60/FD90/FD120/FD240. Features include; adjustable closing speed, adjustable latching speed and adjustable backcheck. Ideal for use in student accommodation or budget hospitality projects.

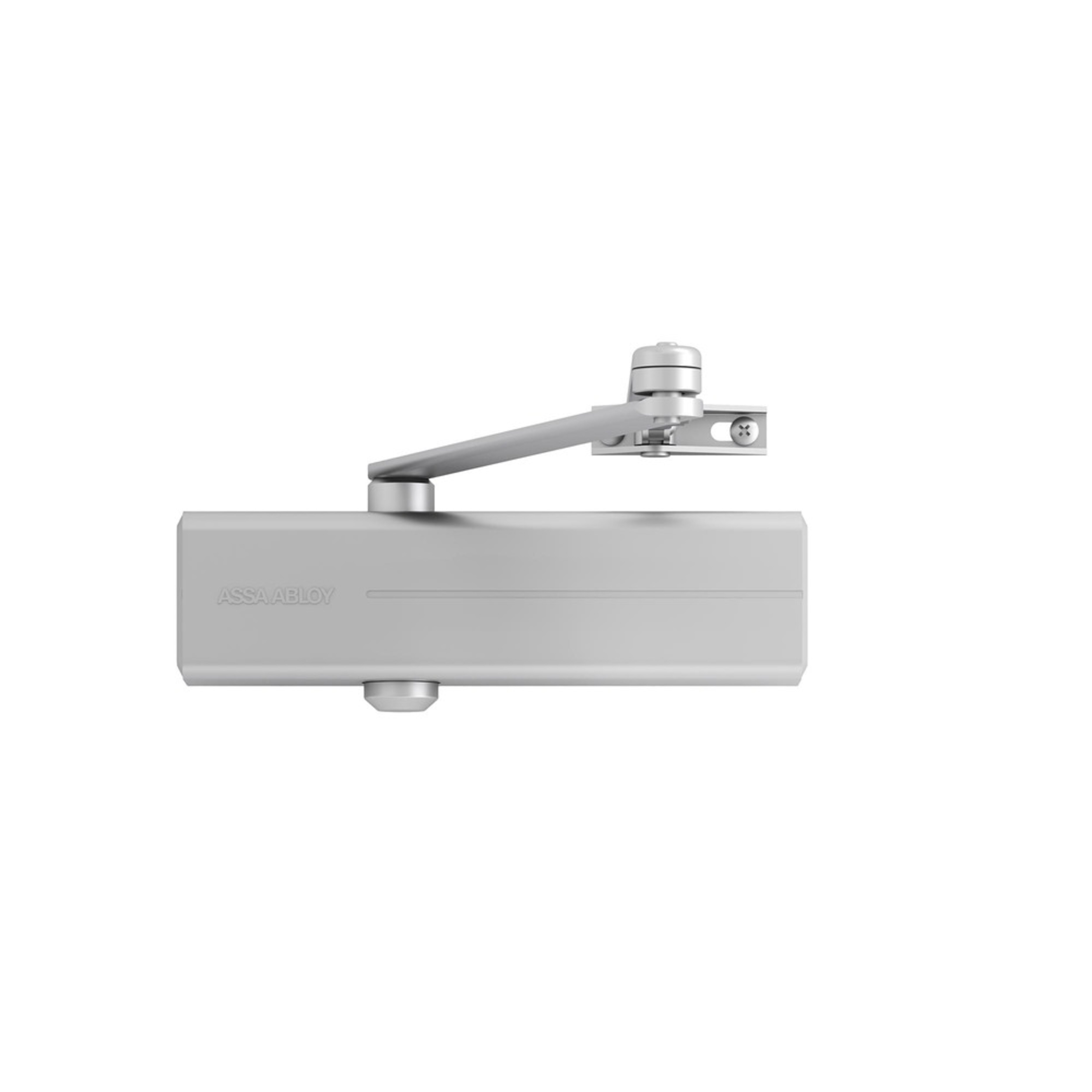

ASSA ABLOY DC140 Variable Size EN2-5 Rack and Pinion Door Closer
Our ASSA ABLOY DC140 variable size EN2-5 rack and pinion door closers are designed for doors weighing up to 100kg and max door width of 1250mm. Suitable for use on timber doors fire-rated to FD30/FD60/FD120 and metal doors fire-rated to FD60/FD90/FD120/FD240. Features include; adjustable closing speed, latching speed and adjustable backcheck. Ideal for half-leaf doors of leaf and a half doorsets.

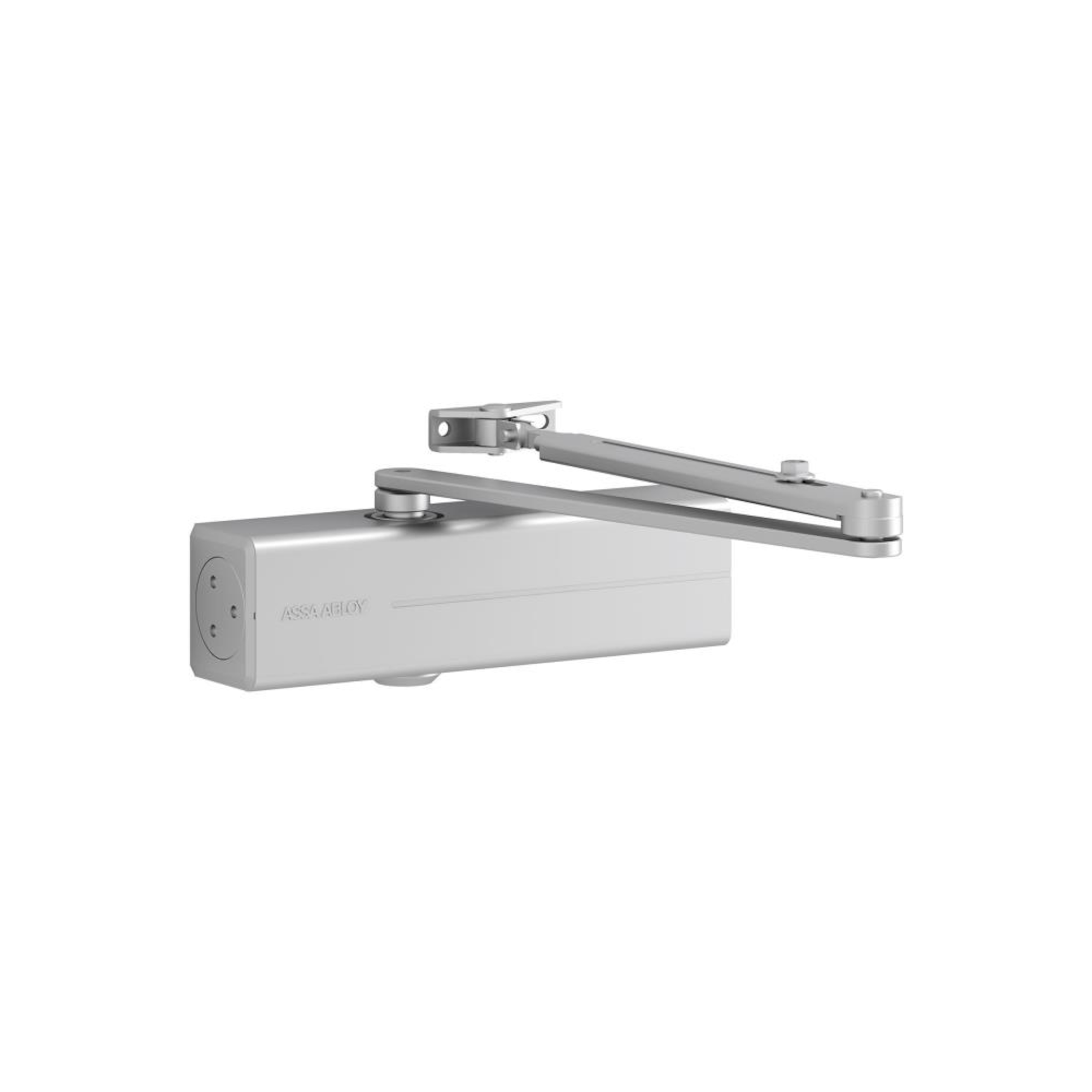

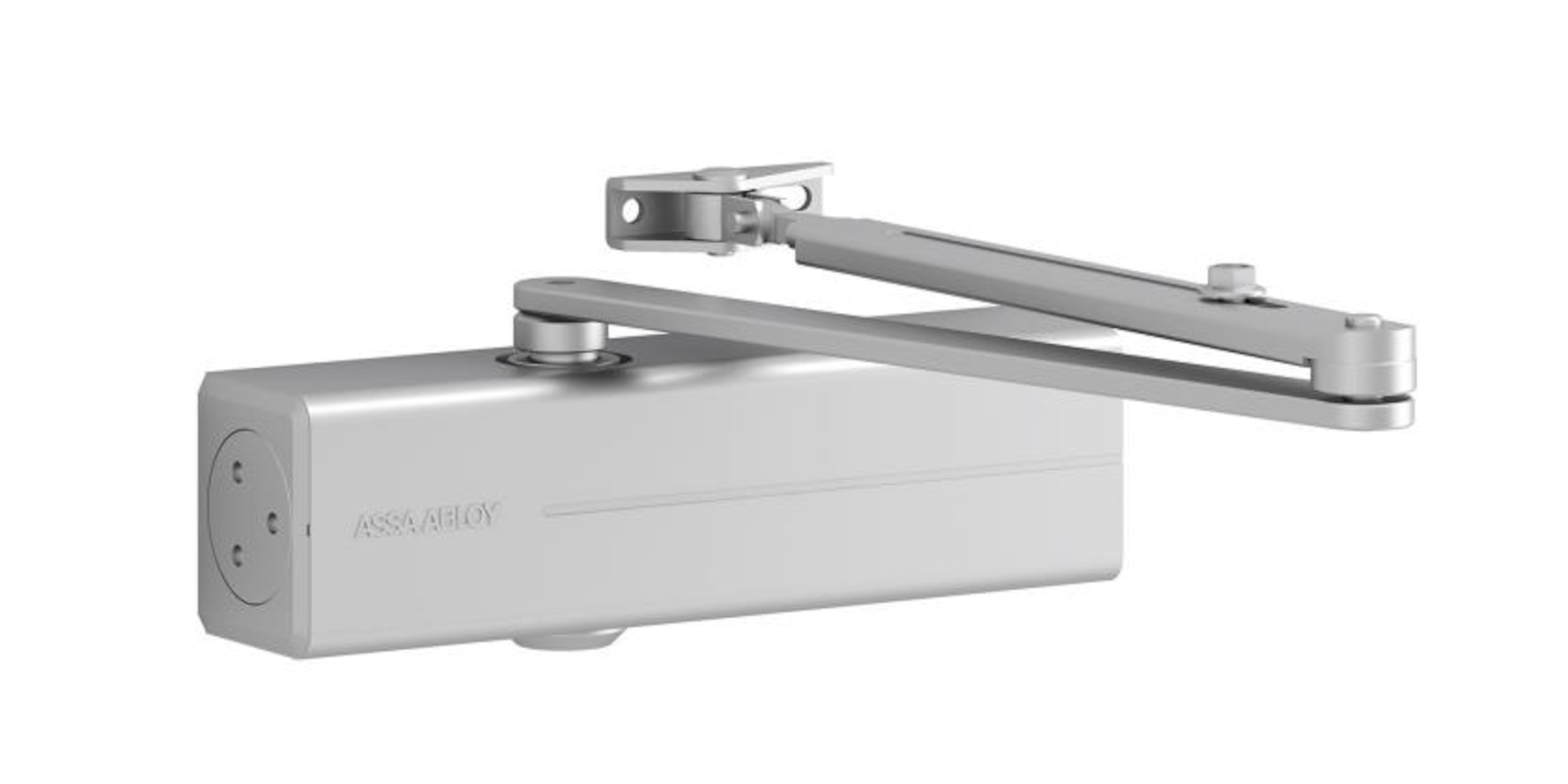

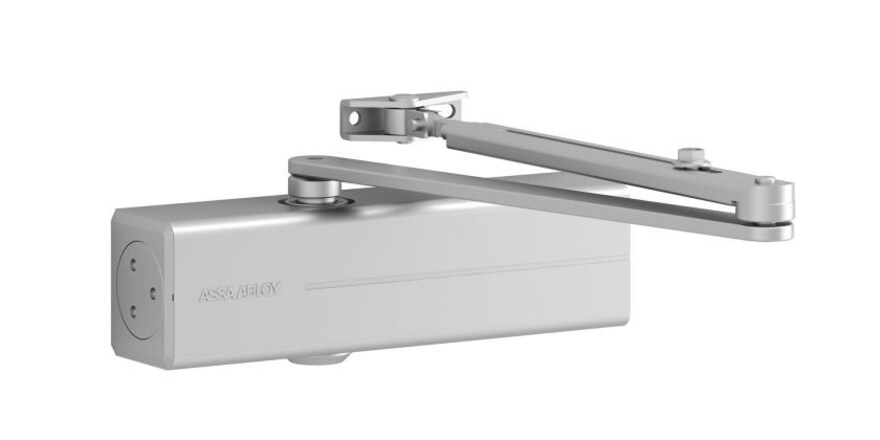

ASSA ABLOY DC200 Variable Size EN2-4 Rack and Pinion Door Closer
Our ASSA ABLOY DC200 variable size EN2-4 rack and pinion door closers are part of our range of rack and pinion solutions, the most traditional and widest used style of closer. These closers can be used on public, residential or commercial buildings or on light or heavy doors. It is fire tested for both timber and metal doors and supplied with a link arm.

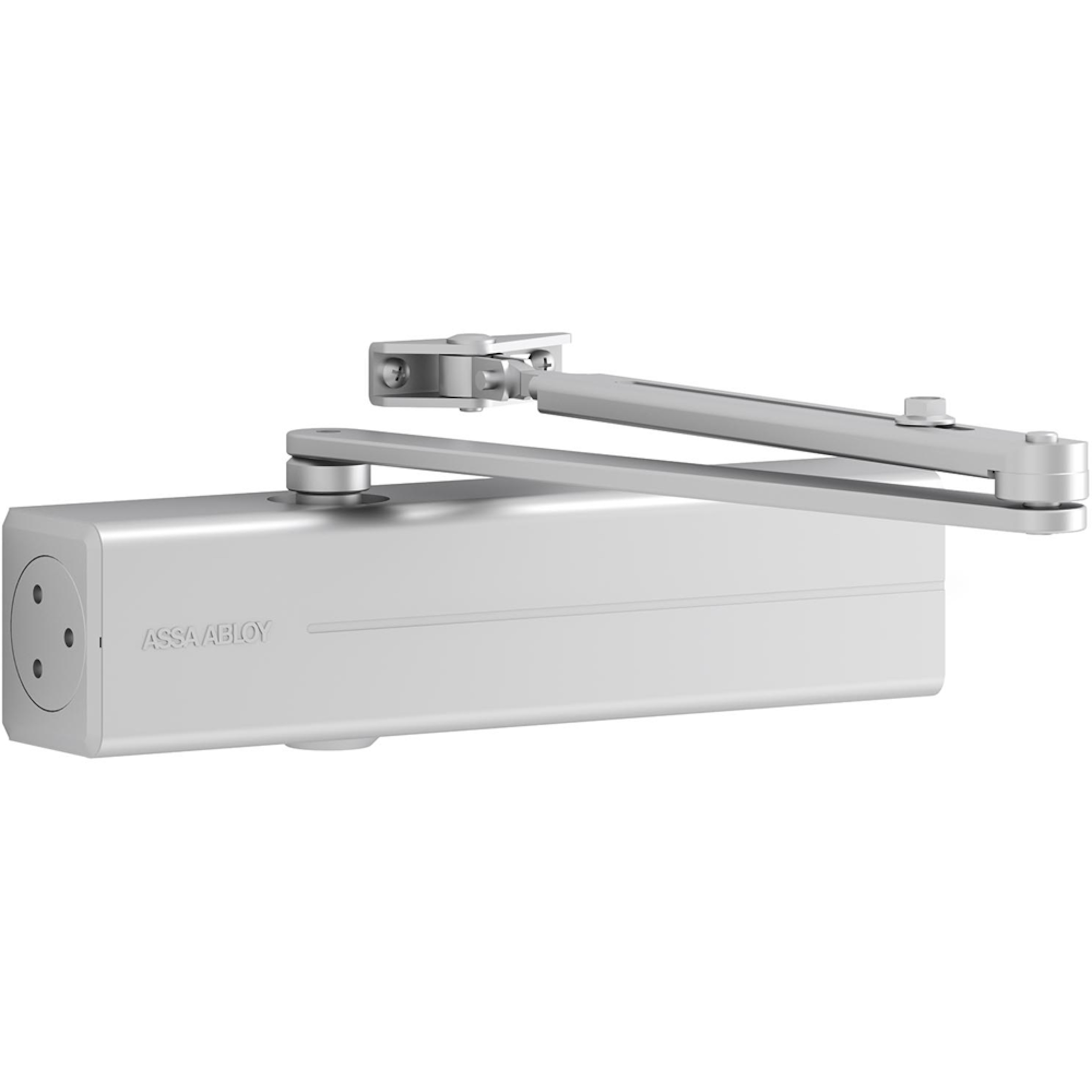

ASSA ABLOY DC300 Variable Size EN3-6 Rack and Pinion Door Closer
Our ASSA ABLOY DC300 variable size EN3-6 rack and pinion door closers are part of our range of rack and pinion solutions, the most traditional and widest used style of closer. These closers can be used on public, residential or commercial buildings or on light or heavy doors. It is fire tested for both timber and metal doors and supplied with a link arm.
ASSA ABLOY DC300DA Variable Size EN3-6 Rack and Pinion Door Closer with Delayed Action
Our ASSA ABLOY DC300 variable EN3-6 rack and pinion door closers are designed for doors weighing up to 120kg and max door width of 1400mm. Suitable for use on timber doors fire-rated to FD30/FD60/FD120 and metal doors fire-rated to FD60/FD90/FD120/FD240. Features include; adjustable closing speed, latching speed and adjustable backcheck. A variable solution for standard door applications. This version offers delayed action capability.

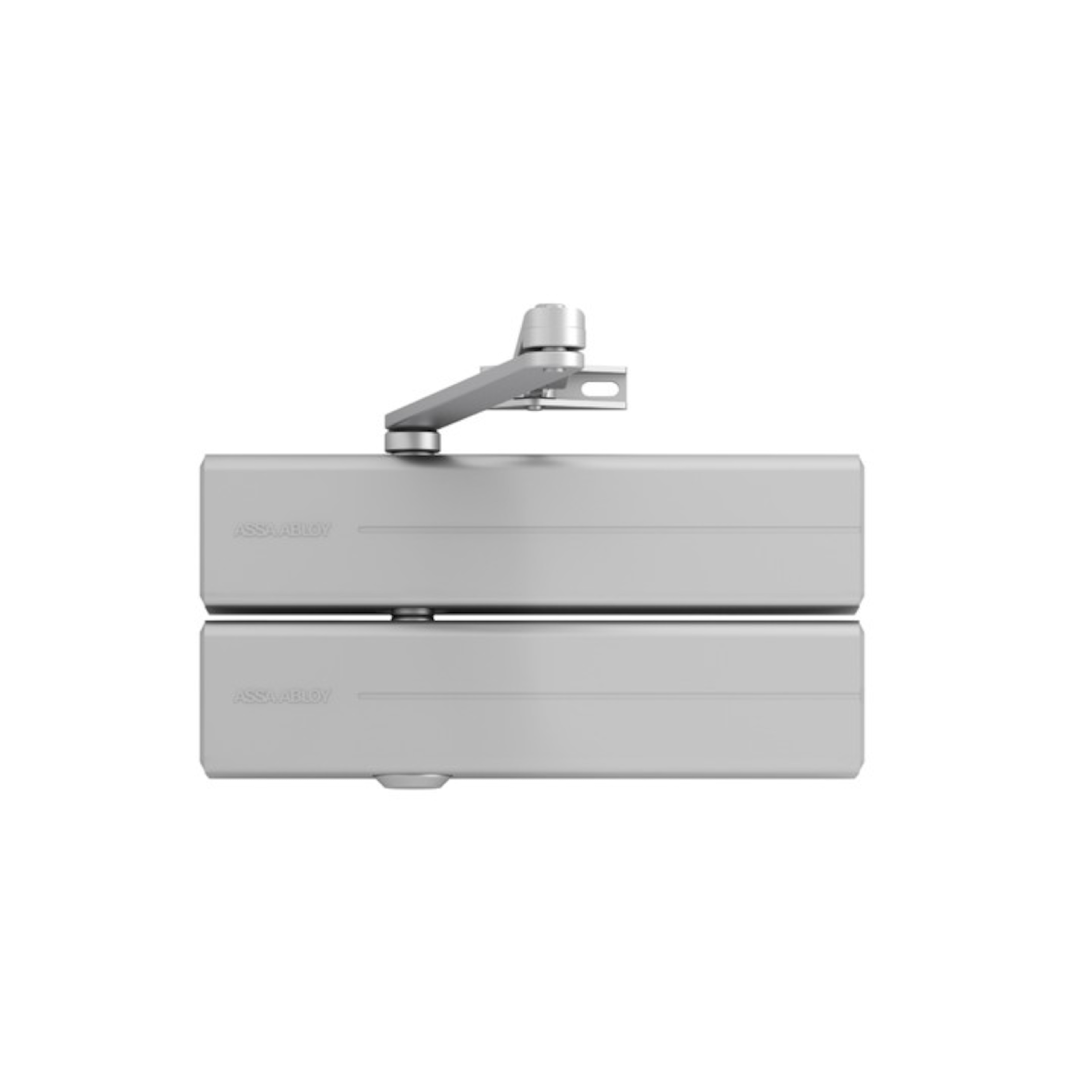

ASSA ABLOY DC300T Heavy Duty Tandem Rack and Pinion Door Closer
Our ASSA ABLOY DC300 tandem rack and pinion door closers are designed to exceed EN7 requirements, incorporating 2x DC300 bodies. Suitable for doors weighing up to 160kg and max door width of 1800mm. Suitable for use on timber doors fire-rated to FD30/FD60/FD120 and metal doors fire-rated to FD60/FD90/FD120/FD240. Features include; adjustable closing speed, latching speed and adjustable backcheck.

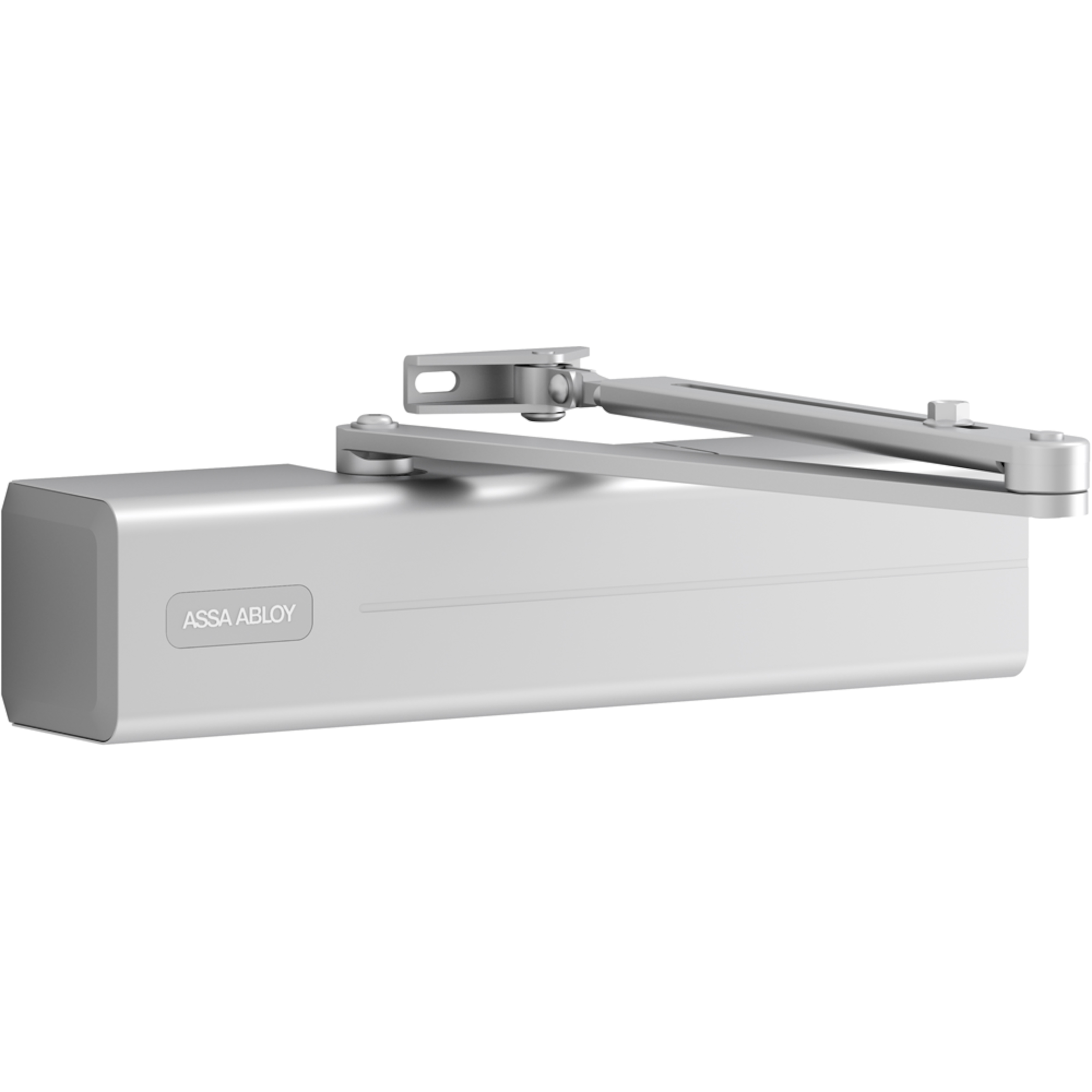

ASSA ABLOY DC340 Variable Size EN2-6 Rack and Pinion Door Closer
Our ASSA ABLOY DC340 variable rack and pinion door closers are part of our range of rack and pinion solutions, the most traditional and widest used style of closer. These closers can be used on public, residential or commercial buildings or on light or heavy doors. It is fire tested for only timber doors and is supplied with a link arm.

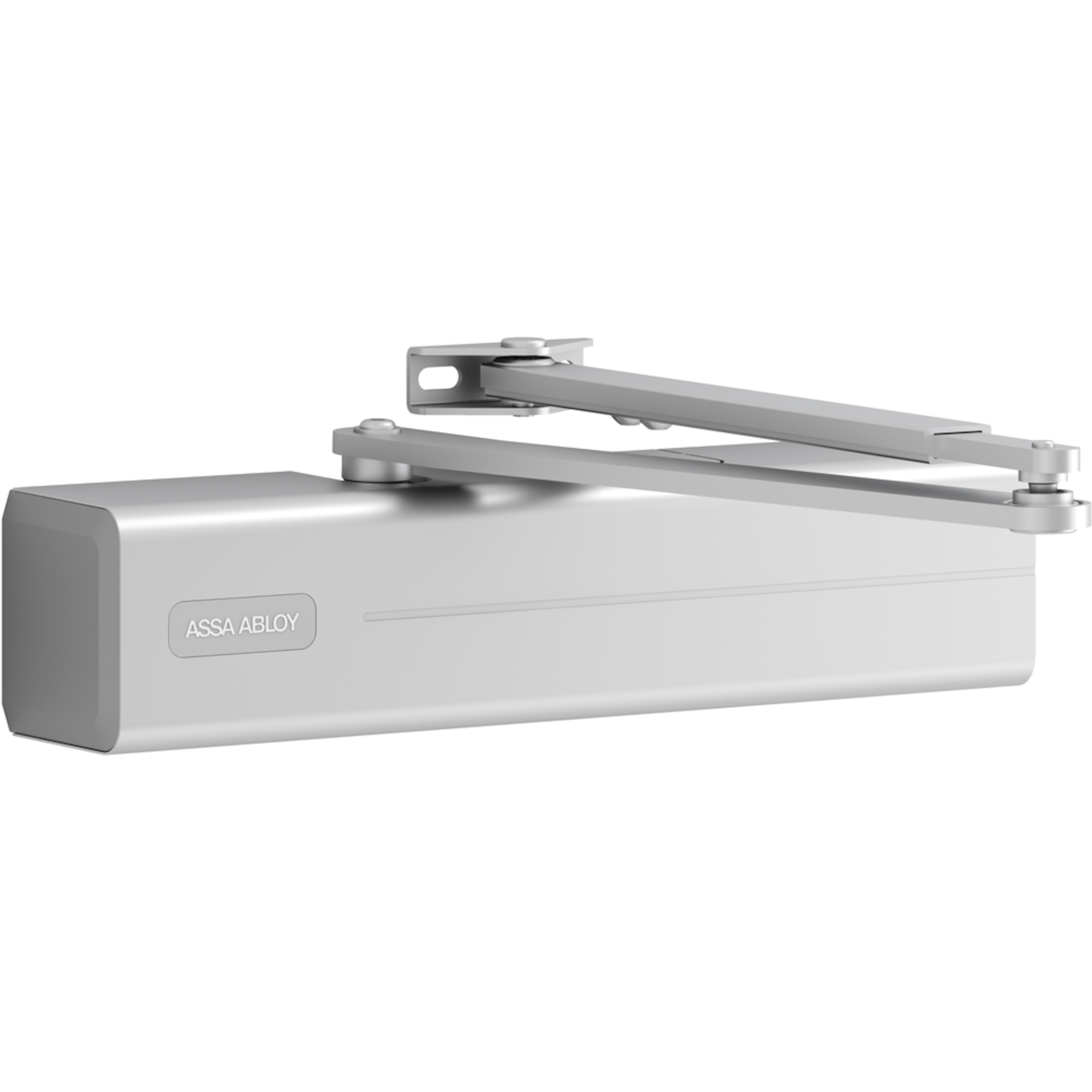

ASSA ABLOY DC347 Variable Size EN5-7 Rack and Pinion Door Closer
Our ASSA ABLOY DC347 variable EN5-7 rack and pinion door closers are part of of our range of rack and pinion solutions, the most traditional and widest used style of closer. These closers can be used on public, residential or commercial buildings or on light or heavy doors. It is fire tested for only timber doors and is supplied with a link arm.

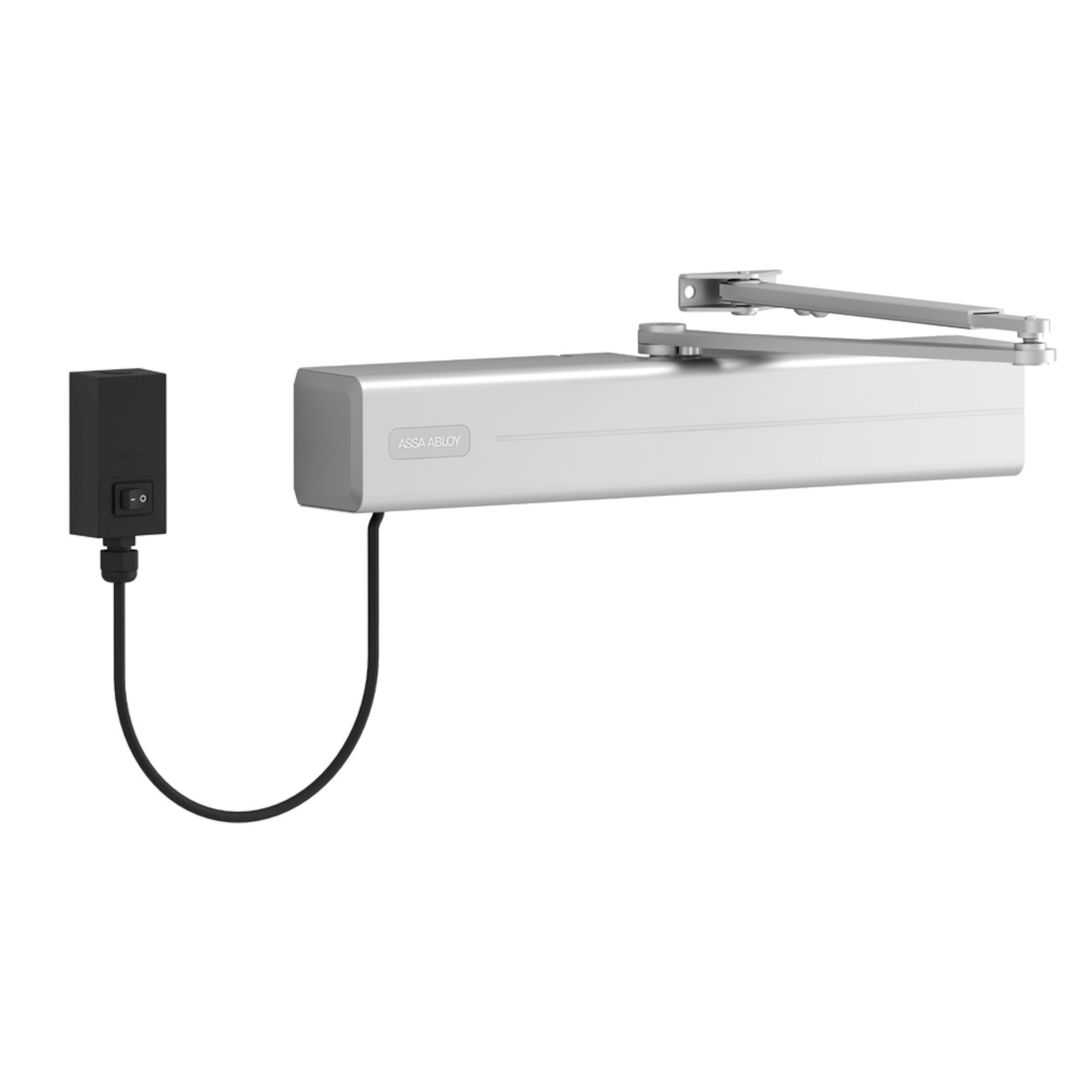

ASSA ABLOY DC640 Rack and Pinion Door Closer with Free-Swing Function
Our ASSA ABLOY DC640 variable rack and pinion door closers are designed for fire and smoke protection doors, with a free-swing system offering adjustable free-swing up to 180°. Suited for high traffic doors or those likely to be used by children, elderly or individuals with accessibility requirements.

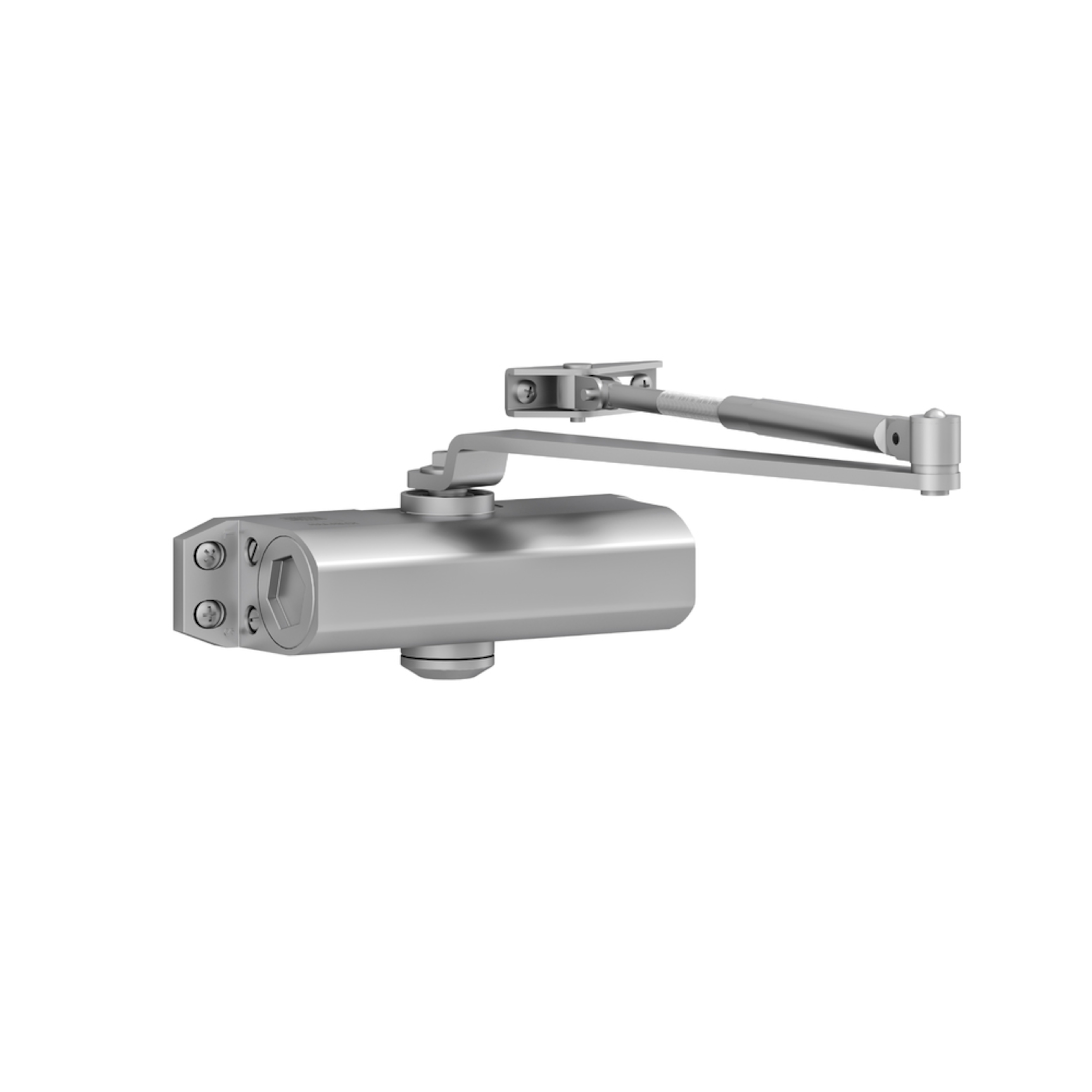

UNION CE3F Fixed Size EN3 Rack and Pinion Door Closer
Our UNION CE3F fixed size EN3 rack and pinion door closers are our range of entry-level door closers, offering a cost-effective solution to basic applications, such as in residential or commercial spaces. It is fire tested for both timber and metal doors and can be fitted in either fig.1 (regular), fig. 61 (transom) or fig.66 (parallel arm) positioning. It is also supplied with a link arm and is offered in two finishes.
