Floor springs

Floor spring door controls are concealed under the finished floor level to offer control to your door with the unit hidden from view. They are especially suited to areas with high traffic as well as heavier doorsets. Available with single or double action operation to ensure a projects design criteria can be met. Our floor spring range can be selected with or without hold-open function. Mechanical hold-open function is suited for use on non-fire doors where it is beneficial for the doors to be held in the open position and can be set at either 90°, 120° or 105°. Electromagnetic hold-open function is approved for use on fire doors where it is beneficial for the doors to be held in the open position.

2000/4F floor pivot
Discover the Exidor 2000/4F Floor Pivot, a sleek and reliable solution for your door needs. Designed with durability and ease of use in mind, this floor pivot provides smooth operation and a secure fit. Its modern design seamlessly blends with any interior, making it an ideal choice for both residential and commercial spaces. Elevate your door functionality with Exidor’s trusted quality.
991 heavy duty floor springs with backcheck and spindle
The Exidor 991 heavy duty floor springs with backcheck offer reliable door control and safety. Certified to CE, Certifire, and EN 1154 standards, they ensure durability and performance for heavy doors in commercial settings. Perfect for secure and smooth operation.
995 heavy duty floor springs with backcheck and spindle
Exidor 995 heavy duty floor springs with backcheck offer reliable door control and durability. Certified to CE, Certifire, and EN 1154 standards, these floor springs ensure safety and performance for heavy doors in commercial spaces.

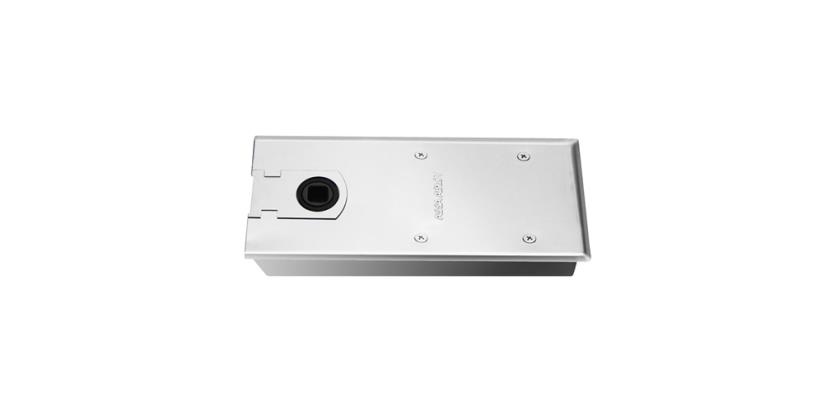

DC450 floor spring
Fixed power size 4 floor spring with Cam-Motion^® technology and fixed closing force. Adjustable door speed and latching speed from top regulating valves. Certified in compliance with UKCA, EN 1154 and BS 8300. It is suitable for use on FD60 metal doors (non hold-open model only) and is also supplied with a 10 year mechanical guarantee.
DC450 floor spring
Fixed power size 4 floor spring with Cam-Motion^® technology and fixed closing force. Adjustable door speed and latching speed from top regulating valves. Certified in compliance with UKCA, EN 1154 and BS 8300. It is suitable for use on FD60 metal doors (non hold-open model only) and is also supplied with a 10 year mechanical guarantee.
DC477 EN 2-4 floor spring
Adjustable power size 2-4 floor spring with Cam-Motion^® technology and adjustable closing force for heavy doors. Uses Cam-Motion^® technology for easier door opening and improved accessibility. Suitable for metal FD30 fire doors (non-hold open variant only).
Exidor 2952 series EN 1 - 4 floor spring
2952 heavy duty hold open floor spring, power size 1 - 4 is the perfect solution for demanding door environments. The 2952 is available as either single action or double action and can be supplied either as a mechanism and box only or with fittings and cover plate.
Exidor 2960 series EN 1 - 4 floor spring
2960 heavy duty delayed action floor spring, power size 1 - 4 is the perfect solution for demanding door environments.
Exidor 3470 electromagnetic EN4 floor spring
The Exidor 3470 electromagnetic floor spring is a fixed size 4 floor spring, which fits discreetly into the floor and designed to hold open doors. Suitable for use on doors with 1100mm width and weigh up to 400kg.
Exidor 990 series EN 1 - 6 floor spring
990 heavy duty floor spring, power size 1 - 6 is the perfect solution for demanding door environments. UL listed.
Exidor 993 series EN 1 - 6 floor spring
Exidors 993 heavy duty hold open floor spring (90° & 120°), power size 1 - 6 is perfect solution for demanding door environments.
