Door Closers

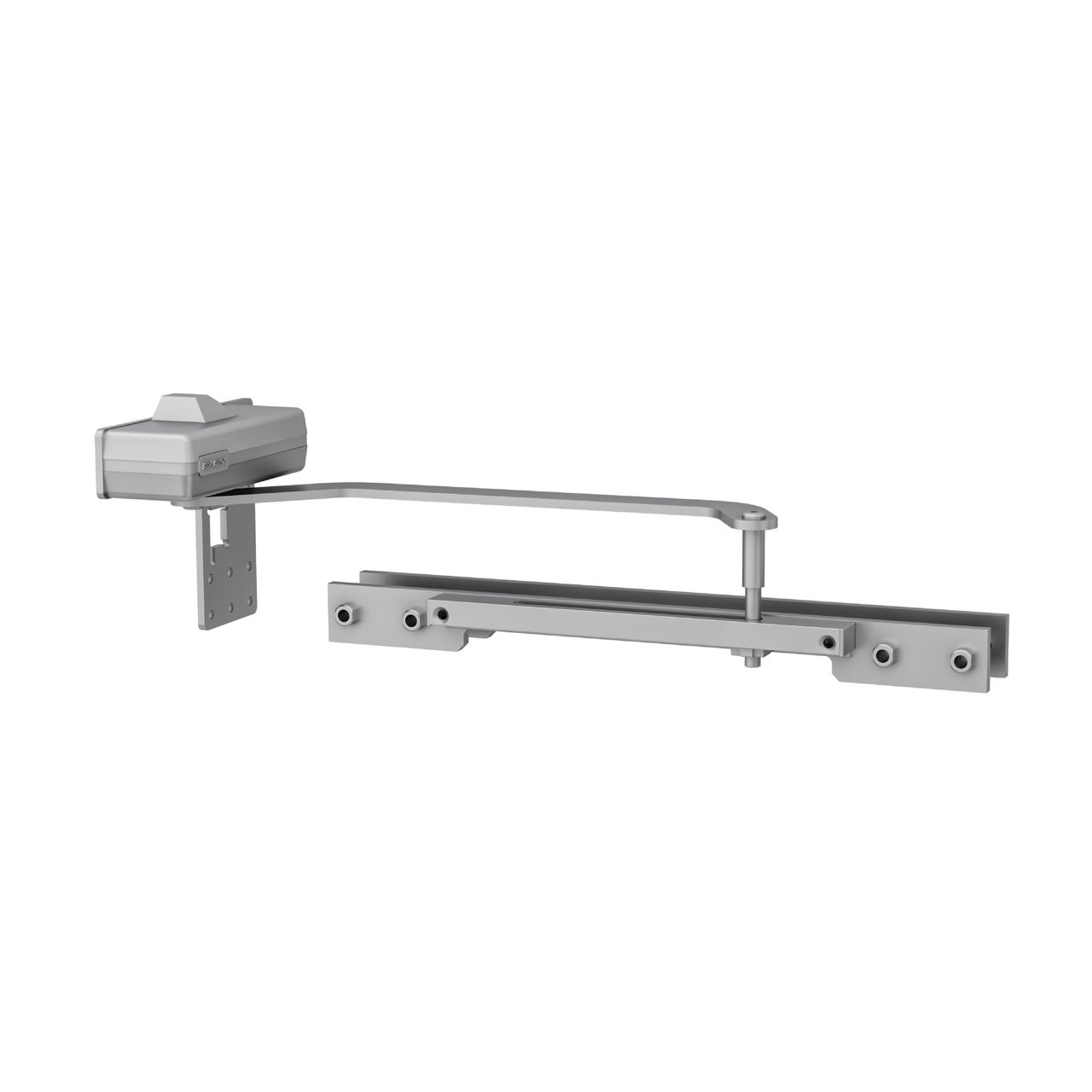

Rack and pinion gate closer with guide rail for single action gates, fixed size

• ASSA ABLOY-DC620G
• Suitable for non-paneled garden and pedestrian gates with or without protruding bars
• For single action gates up to 1000 mm width, fixed size
• Supplied with guide rail, mounting screws and fixing plates

Technical Attributes

• Can be used for left- and right-handed gates
• Easy to install – no welding required
• Closing and latch speeds can be raised and lowered independently
• Durable, side-facing metal valves make adjustments easy and reliable
• Consistent performance in a wide range of temperatures
• Pinch free guide rail adds safety

Variations

• ASSA ABLOY-DC700G-FM
• EN 3-6

Technical Attributes

• Free-Motion^® door closer with free-swing function starting from a door opening angle 0°
• Certified in compliance with EN 1155/1154, size 3-6
• Easy, initial door opening due to the rapidly decreasing opening force. When active, the free-swing function enables permanent
• opening of the door without the resistance of the door closer
• Door remains in free-swing mode until power supply is switched-off
• For single action doors up to 1400mm wide
• Fulfils barrier-free building requirements (EA / CEN TR 15894)
• Can be used for left and right-handed doors
• Suitable for fire and smoke protection doors
• Adjustable closing speed, latching speed and backcheck
• Variable adjustable closing force
• Opening angle up to 160°
• Hold-open variant available
• Hold-open angle 130°

Variations

• ASSA ABLOY-DC700G-CM
• EN 3-6

Technical Attributes

• Cam-Motion^® door closer with integrated Close-Motion^® element for safe and noiseless closing
• The door can be pulled closed safely and quietly from an angle of 10°
• Certified in compliance with EN 1154, size 3-6
• For single action doors up to 1400mm wide
• Can be used for left and right-handed doors
• Suitable for fire and smoke protection doors
• Adjustable closing speed, latching speed and backcheck
• Variable adjustable closing force
• Opening angle up to 170°

Variations

• ASSA ABLOY-DC700G-CO-FT
• Certified in compliance with EN 1154/1158, size 3-6

Technical Attributes

• Suitable for fire and smoke protection doors
• For double leaf doors with hinge distance from 1480 mm up to 2500 mm
• Barrier-free according to CEN/TR 15894
• Escape door strike tested according to EltVTR
• Height-adjustable, grooved spindle and guide rail compensate installation mistakes
• Closing and latch speeds can be raised and lowered independently
• Durable, front-facing metal valves make adjustments easy and reliable
• Consistent performance in a wide range of temperatures
• Backcheck functionality as standard protects frame and surrounding areas
• Easy to retrofit using drilling template compliant with EN 1154, supplementary sheet 1

Variations

• ASSA ABLOY-DC175
• Certified in compliance with EN 1154, size EN 3/4

Technical Attributes

• Door closer with Cam-Motion^® technology for guide rail
• Fulfils barrier-free building requirements (EA / CEN TR 15894)
• For single action doors up to 1100 mm wide
• Can be used with a mounting plate, suitable for fire and smoke protection doors
• Can be used in four installation types: hinge and non-hinge sides in standard and frame installation
• Can be used for left and right-handed doors
• Closing speed and latching speed continuously adjustable
• Compact design
• Thermodynamic valves for consistent performance
• Opening angle up to 160° (varies with installation positions)
• Standard colours: silver EV1; white, similar to RAL9016; black, similar to RAL9005

Variations

• ASSA ABLOY-DC700
• ASSA ABLOY-DC700HO
• ASSA ABLOY-DC700DA
• EN 3-6

Technical Attributes

• Door closer with Cam-Motion^® technology
• Certified in compliance with EN 1154, size 3-6
• For single action doors up to 1400mm wide
• Fulfils barrier-free building requirements (EA / CEN TR 15894)
• Can be used for left and right-handed doors
• Suitable for fire and smoke protection doors
• Adjustable closing speed, latching speed and backcheck
• Variable adjustable closing force
• Opening angle up to 170° (non-hinge side 120°)
• Hold-open variable available
• Hold-open angle 130°
• Delayed action variant available
• Delayed closing variable from max. opening angle to 70°

Variations

• ASSA ABLOY-DC500
• ASSA ABLOY-DC500HO (hold-open)
• EN 1-4

Technical Attributes

• Door closer with Cam-Motion^® technology
• Certified in compliance with EN 1154, size 1-4
• For single action doors up to 1100mm wide
• Fulfils barrier-free building requirements (EA / CEN TR 15894)
• Can be used for left and right-handed doors
• Suitable for fire and smoke protection doors
• Adjustable closing speed, latching speed and backcheck
• Variable adjustable closing force
• Opening angle up to 170° (non-hinge side 120°)
• Hold-open variant available
• Hold-open angle 130°

Variations

• ASSA ABLOY-DC700G-CO-FM
• Certified in compliance with EN 1154, EN 1155 and EN 1158, size 3-6

Technical Attributes

• Suitable for fire and smoke protection doors
• For double leaf doors with hinge distance from 1350 mm up to 2500/3200 mm
• Barrier-free according to DIN 18040 (max. leaf width 1250 mm) and CEN/TR 15894
• DIBt approval with different smoke detection systems
• Rapidly decreasing opening force allows easy and barrier-free initial door opening
• Free-swing function starts from a door opening angle ≥ 0° and is active until power supply is switched off
• Height-adjustable, grooved spindle (14 mm) compensates installation mistakes
• Closing and latch speeds can be raised and lowered independently
• Durable, front-facing metal valves make adjustments easy and reliable
• Consistent performance in a wide range of temperatures
• Simplified stock management with universal parts and adaptable solutions
