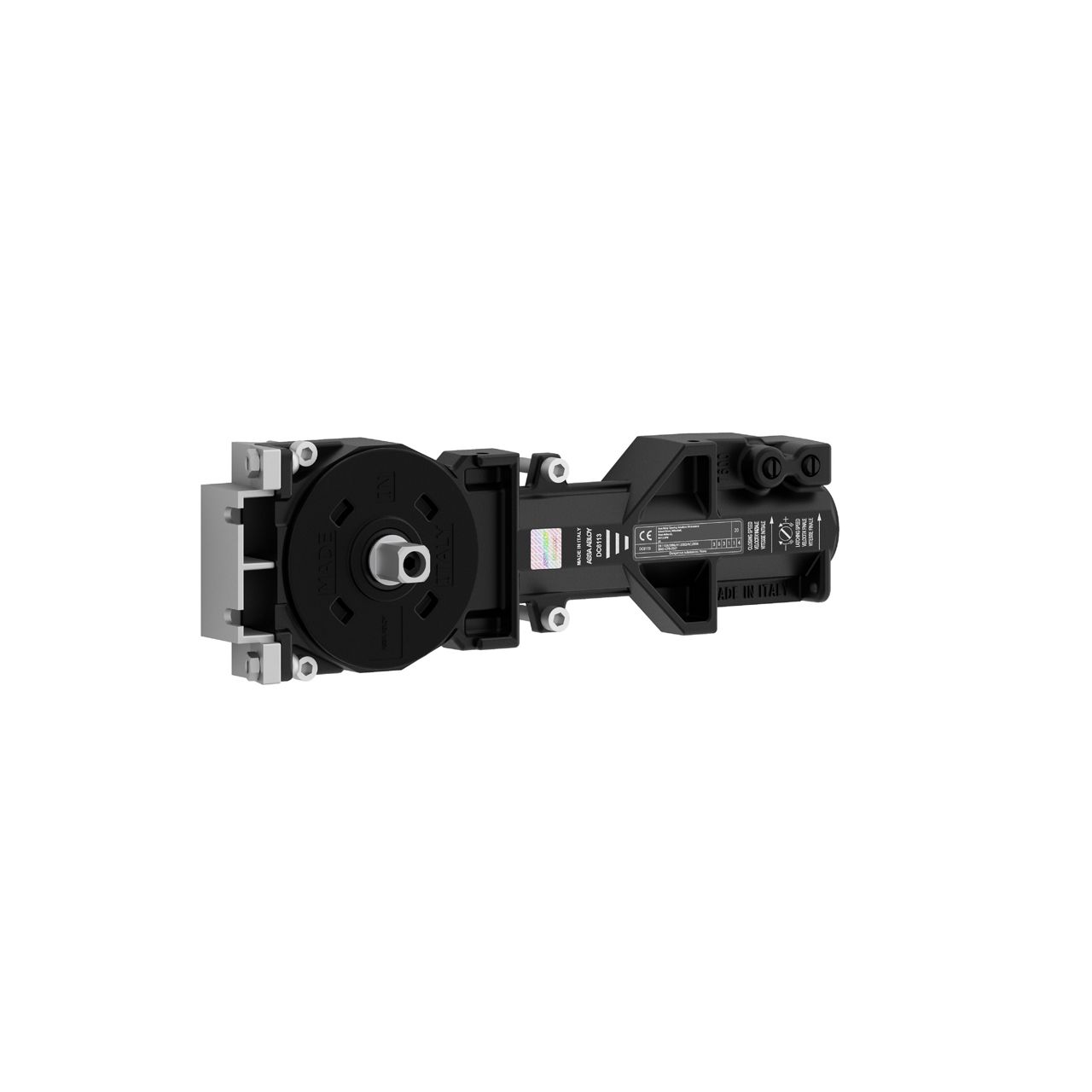

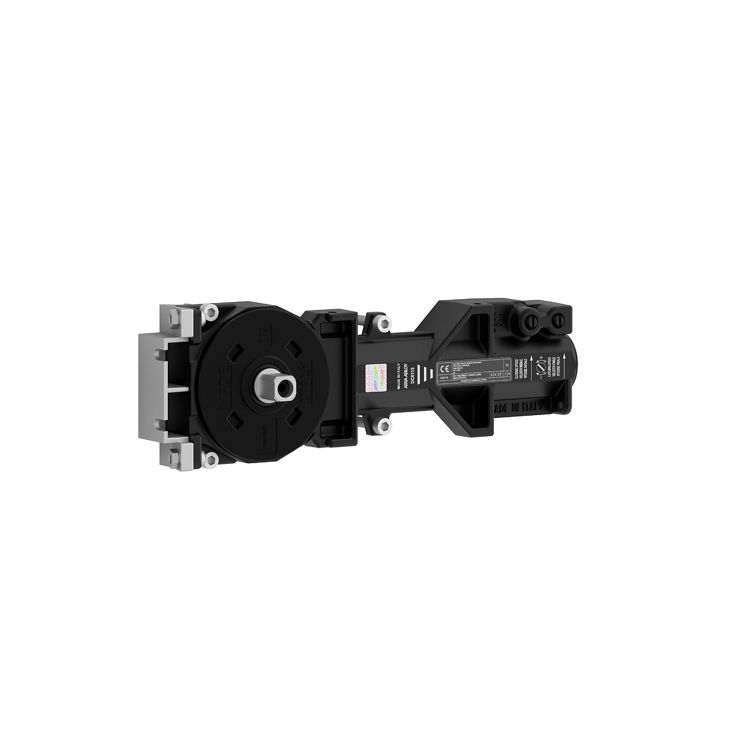

DC611

Variations

  • Hold-open at 105° (cannot be used on fire doors)
  • Hold-open at 90° (cannot be used on fire doors)
  • Without hold-open

Technical Attributes

  • Premium construction provides double the industry standard for durability (over 1.000,000 test cycles)
  • Hydraulic control from 170° in both door swing directions allows for smooth and controlled door operation
  • Closing and latch speeds can be raised and lowered independently

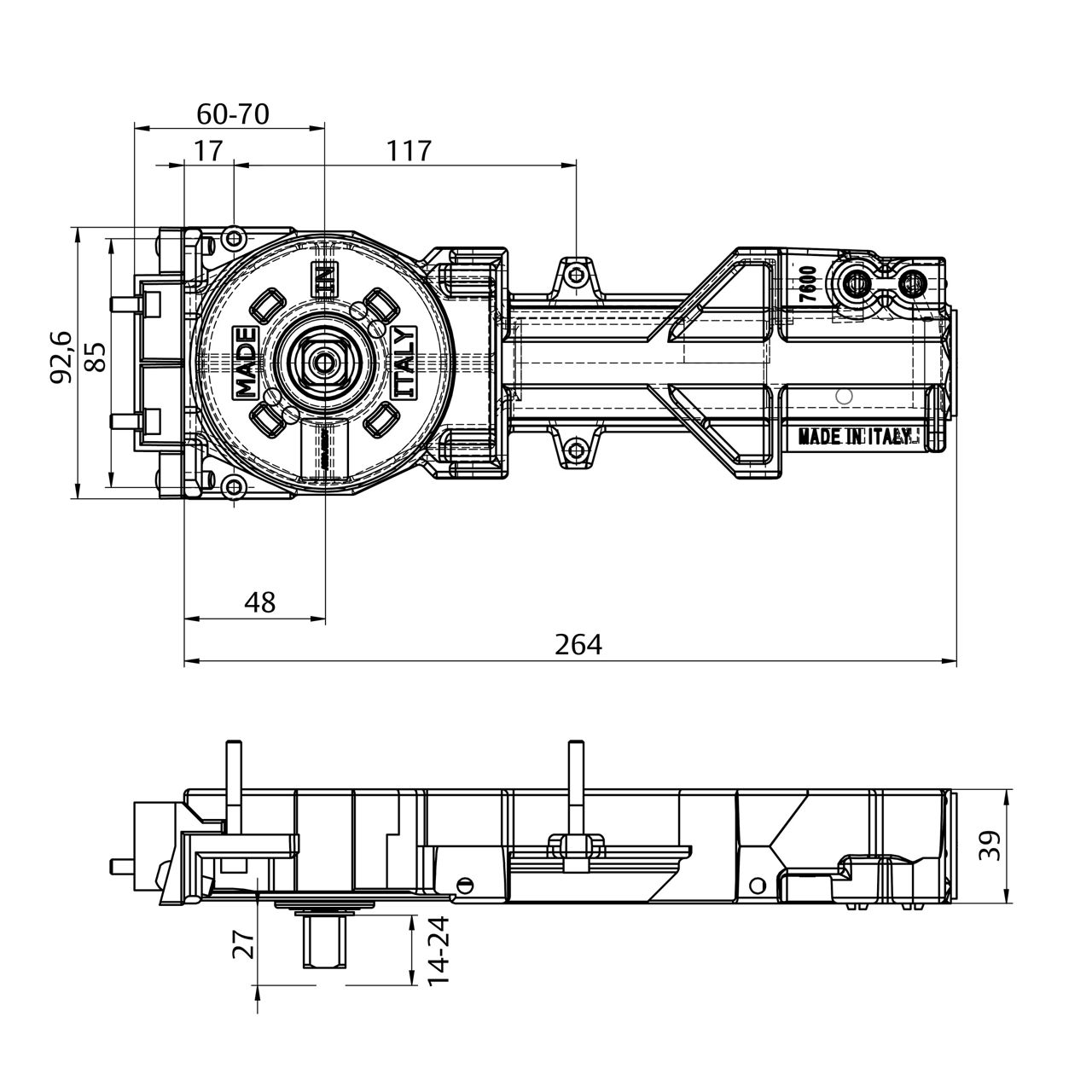

  • Detatchable spindle in different lengths (14/18/20/21/24 mm) allows flexible installation
  • Same dimensions for EN2, EN3 and EN4 products simplifies replacement
  • Consistent performance in a wide range of temperatures
