DC175

Variations

  • ASSA ABLOY-DC175
  • Certified in compliance with EN 1154, size EN 3/4

Technical Attributes

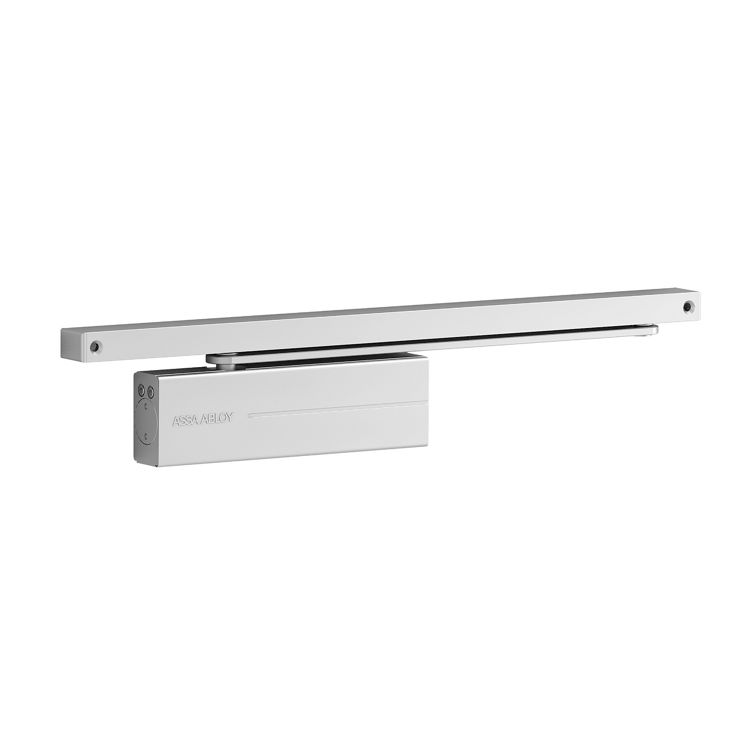

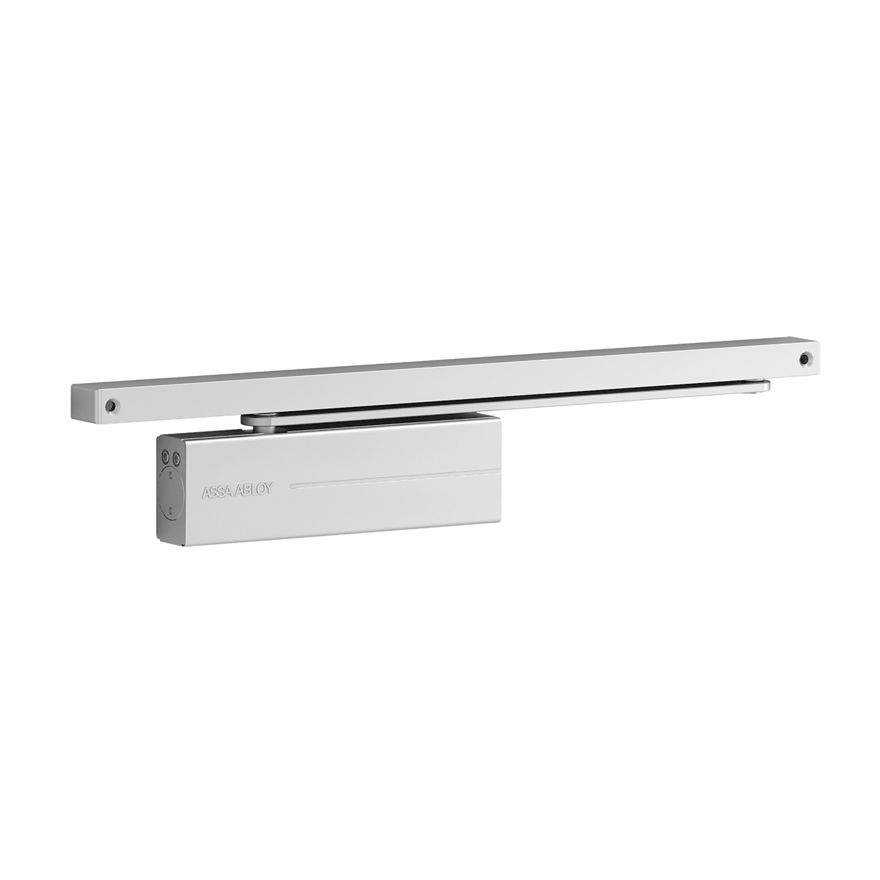

  • Door closer with Cam-Motion® technology for guide rail
  • Fulfils barrier-free building requirements (EA / CEN TR 15894)
  • For single action doors up to 1100 mm wide
  • Can be used with a mounting plate, suitable for fire and smoke protection doors
  • Can be used in four installation types: hinge and non-hinge sides in standard and frame installation
  • Can be used for left and right-handed doors
  • Closing speed and latching speed continuously adjustable
  • Compact design
  • Thermodynamic valves for consistent performance
  • Opening angle up to 160° (varies with installation positions)
  • Standard colours: silver EV1; white, similar to RAL9016; black, similar to RAL9005
