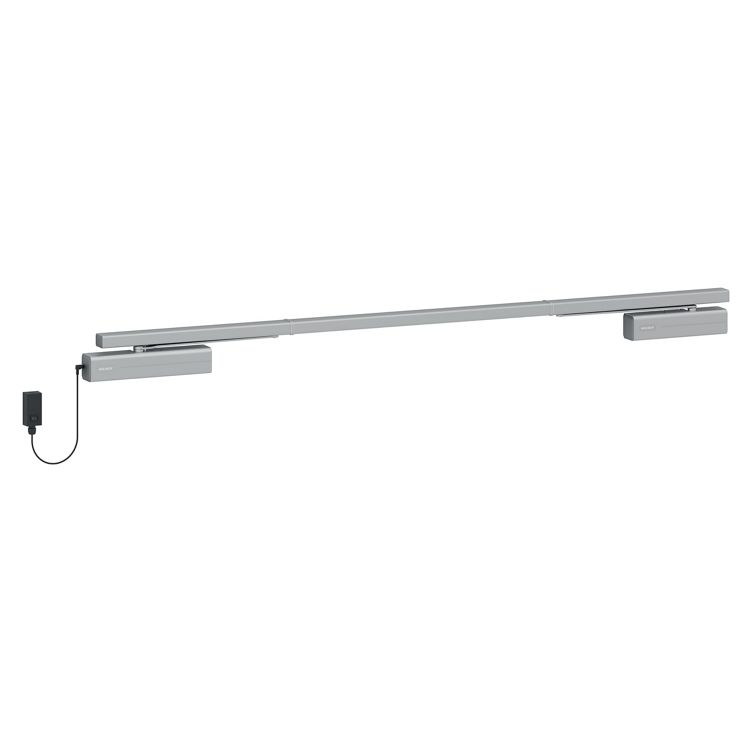

DC700G-CO-FM

Variations

• ASSA ABLOY-DC700G-CO-FM
• Certified in compliance with EN 1154, EN 1155 and EN 1158, size 3-6

Technical Attributes

• Suitable for fire and smoke protection doors
• For double leaf doors with hinge distance from 1350 mm up to 2500/3200 mm
• Barrier-free according to DIN 18040 (max. leaf width 1250 mm) and CEN/TR 15894
• DIBt approval with different smoke detection systems
• Rapidly decreasing opening force allows easy and barrier-free initial door opening
• Free-swing function starts from a door opening angle ≥ 0° and is active until power supply is switched off
• Height-adjustable, grooved spindle (14 mm) compensates installation mistakes
• Closing and latch speeds can be raised and lowered independently
• Durable, front-facing metal valves make adjustments easy and reliable
• Consistent performance in a wide range of temperatures
• Simplified stock management with universal parts and adaptable solutions
