Floor Springs

Products

    Filter

      5 results

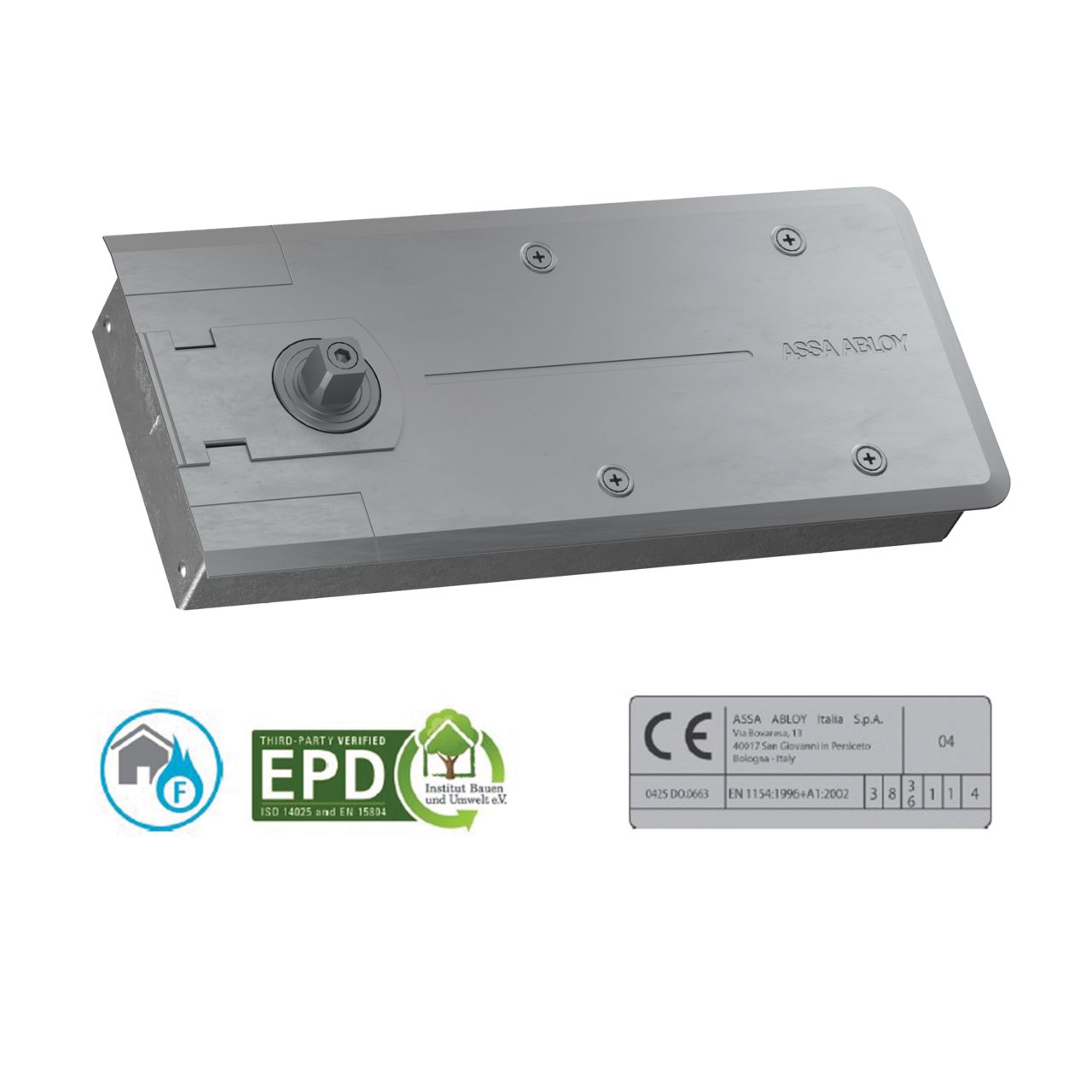

      • DC450

        Variations

        • ASSA ABLOY-DC450
        • ASSA ABLOY-DC450HO (90° hold-open)
        • ASSA ABLOY-DC450DA (double action)
        • ASSA ABLOY-DC450DAHO (double action with 90° hold-open)
        • EN3

        Technical Attributes

        • Includes accessory kit - single action or double action
        • German spindle
        • Available in Non-Hold Open and Hold Open 90°
        • Cam-Action® technology for ease when opening doors
        • Certified in accordance with EN1154, size EN3
        • Cycle test over 1,000,000 cycles
        • Can be used on doors up to 120kg, 1000mm width, maximum opening angle 130°
        • Thermodynamic valves to handle extreme temperatures

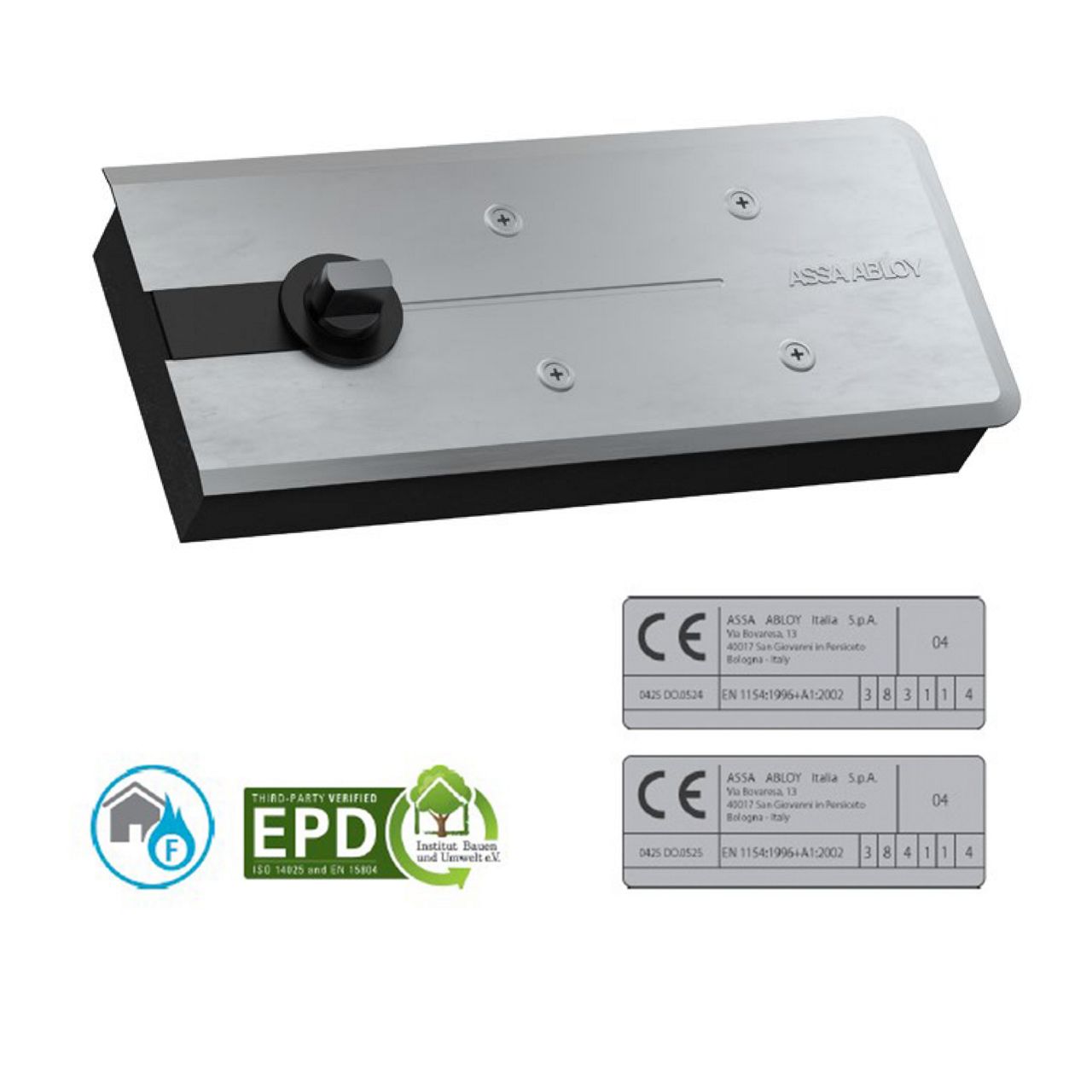

      • DC410

        New DC410U Entry level Floor spring with Cam-Motion® technology and fixed closing force 4

      • DC475

        Variations

        • ASSA ABLOY-DC475
        • ASSA ABLOY-DC475HO (90° hold-open)
        • ASSA ABLOY-DC475DA (double action)
        • ASSA ABLOY-DC475DAHO (double action with 90° hold-open)
        • EN 3-6

        Technical Attributes

        • Floor spring with adjustable closing force for large and very heavy doors
        • Certified in accordance with EN 1154, size 3-6, cycle test over
        • 1,000,000 cycles
        • Suitable for fire and smoke protection doors
        • For double and single doors up to 300kg and 1400mm wide
        • Hydraulic control over 175° in both swing directions
        • Adjustable door speed and latching speed from top regulating valves
        • Available with hold-opening angle 90°

      • DC420

        Variations

        • ASSA ABLOY-DC420
        • ASSA ABLOY-DC420HO (90° hold-open)
        • ASSA ABLOY-DC420DA (double action)
        • ASSA ABLOY-DC420DAHO (double action with 90° hold-open)
        • EN 2/3/4

        Technical Attributes

        • Floor spring with fixed closing force for thin slabs
        • Certified in accordance with EN 1154, size 2/3/4, cycle test over
        • 1,000,000 cycles
        • Suitable for fire and smoke protection doors
        • For double and single doors up to 100kg and 1100mm wide
        • Hydraulic control over 175° in both swing directions
        • Adjustable door speed and latching speed from top regulating valves
        • Available with hold-opening angle 90°

      • DC477

        Variations

        • ASSA ABLOY-DC477
        • ASSA ABLOY-DC477HO (90° hold-open)
        • ASSA ABLOY-DC477DA (double action)
        • ASSA ABLOY-DC477DAHO (double action action with 90° hold-open)
        • EN 2-4

        Technical Attributes

        • Floor spring with adjustable closing force for large and heavy doors
        • Certified in accordance with EN 1154, size 2-4, cycle test over
        • 1,000,000 cycles
        • Suitable for fire and smoke protection doors
        • For double and single doors up to 170kg and 1100mm wide
        • Hydraulic control over 175° in both swing directions
        • Adjustable door speed and latching speed from top regulating valves
        • Available with hold-opening angle 90°
      Showing 5 of 5
