Auxiliary Hardware
Products
Filter
21 results
AC 908 Door coordinator
Description:
Area of application: Used to coordinate the closing of pairs of doors in jamb openings 36” (914 mm) – 104” (2642 mm).
Features: The overall projection of the coordinator arm is 6 3/4” (171 mm). The rubber roller at the end of the coordinator arm cushions the contact of the active door when itis closing. The reversible nylon roller which lifts the coordinator arm insures smooth and long lasting operation.
Handing: Non-handed
Standard: UL10C
Material: Brass or Bronze, Stainless steel
Finish: 626 (US26D)

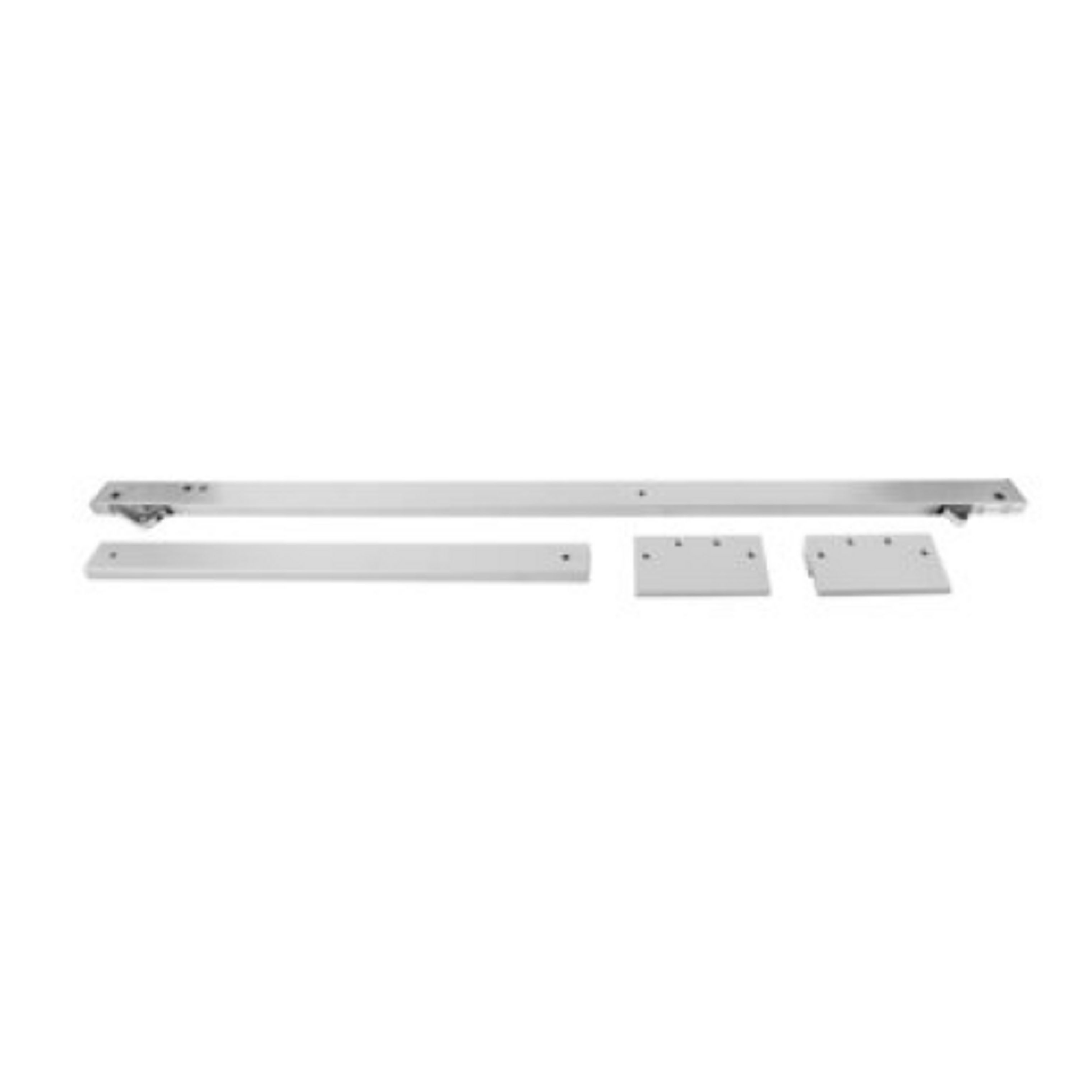

AC 912 Door coordinator for double doors
Description:
Area of application: For controlling the closing sequence of a pair of doors
Features: Mounted to the soffit of the door frame. Provides a smooth and tamper-proof means of controlling the closing sequence of a pair of doors. Equipped with an over-ride feature to prevent damage of the doors and hinges
Fire Rating: Up to 3 h
Material: Steel
AC 903 Dust proof strike
Description:
Area of application: Designed to eliminate dust and debris from collecting in the floor strike. Plate is removable, making it versatile for carpet, threshold and concrete installations. Compatible with flush bolts in this catalog.
Standard: Conforms to ANSI/ BHMA A156.16
Finish: 626 (US26D)
AC 902 Manual flush bolts for wooden doors
Description:
Area of application: For wooden doors – To manually secure the inactive leaf on pairs of doors
Bolt throw: 3/4” (19 mm) Bolt head allows for 1/2” (13 mm) adjustment
Bolt backset: 3/4” (19 mm)
Fire Rating: 1-1/2 h
Standard: Conforms to ANSI/ BHMA A156.16
Material: Brass and steel, Brass and stainless steel
AC 905 Wall / floor stops
Description:
Set of standard fasteners
Finish: 626 (US26D), 630 (US32D)
AC 914 / AC 913 Push / Pull plates
Description:
Version: Bevelled on 4 sides
Installation: Drilled for countersunk screw mounting
Standard: Conforms to ANSI/ BHMA A156.6
Material: Stainless steel
Finish: 630 (US32D)
10312-10 Cable connectors for concealed mounting
Description:
The concealed cable connector is a reliable, safe way of guiding supply cables from the door frame to the door leaf. The concealed mounting method in the door rebate ensures that the supply line is not accessible when the door is closed and so safe against attempted sabotage. As the supply line is guided through a metal spiral conduit, damage due to kicking or crushing is excluded.
Characteristics:
- Housing and spiral conduit in rust-proofstainless steel
- Suitable for cables of up to 7 mm in diameter
- Suitable for mounting in wood, plastic or metal doors
- Extendible spiral conduit to bridge a maximum length of 110 mm
- Reliable cable guidance
- Sabotage-proof when the door is closed
For direct current transmission from the door frame to the door leaf. Non-rusting flexible metal conduit. Fixing caps for mounting on the door frame and door leaf.
AC 906 Wall / floor stops
Description:
Set of standard fasteners
Finish: 626 (US26D), 630 (US32D)
AC 917M Door silencers
Description:
Area of application: For metal frames
Material: Rubber
Colour: Grey
Installation: Snap-in
Finish: 626 (US26D), 630 (US32D)
AC 909 Automatic flush bolts for metal doors
Description:
Area of application: For metal doors – To automatically secure the inactive leaf on pairs of swinging doors. Opening of active leaf automatically retracts top and bottom bolts.
Bolt throw: 3/4” (19 mm) Bolt head allows for 1/2” (13 mm) adjustment
Bolt backset: 3/4” (19 mm)
Fire Rating: 3 h
Standard: Conforms to ANSI/ BHMA A156.3
Material: Brass and steel, Brass and stainless steel
AC 904 Floor stops & Door holders
Description:
Standard: Conforms to ANSI/BHMA A156.16
Material: Cast brass
Finish: 626 (US26D), 630 (US32D)
AC 915 Wall stop - Convex
Description:
Standard: Conforms to ANSI/BHMA A156.16
Material: Stainless steel
Finish: 630 (US32D)
