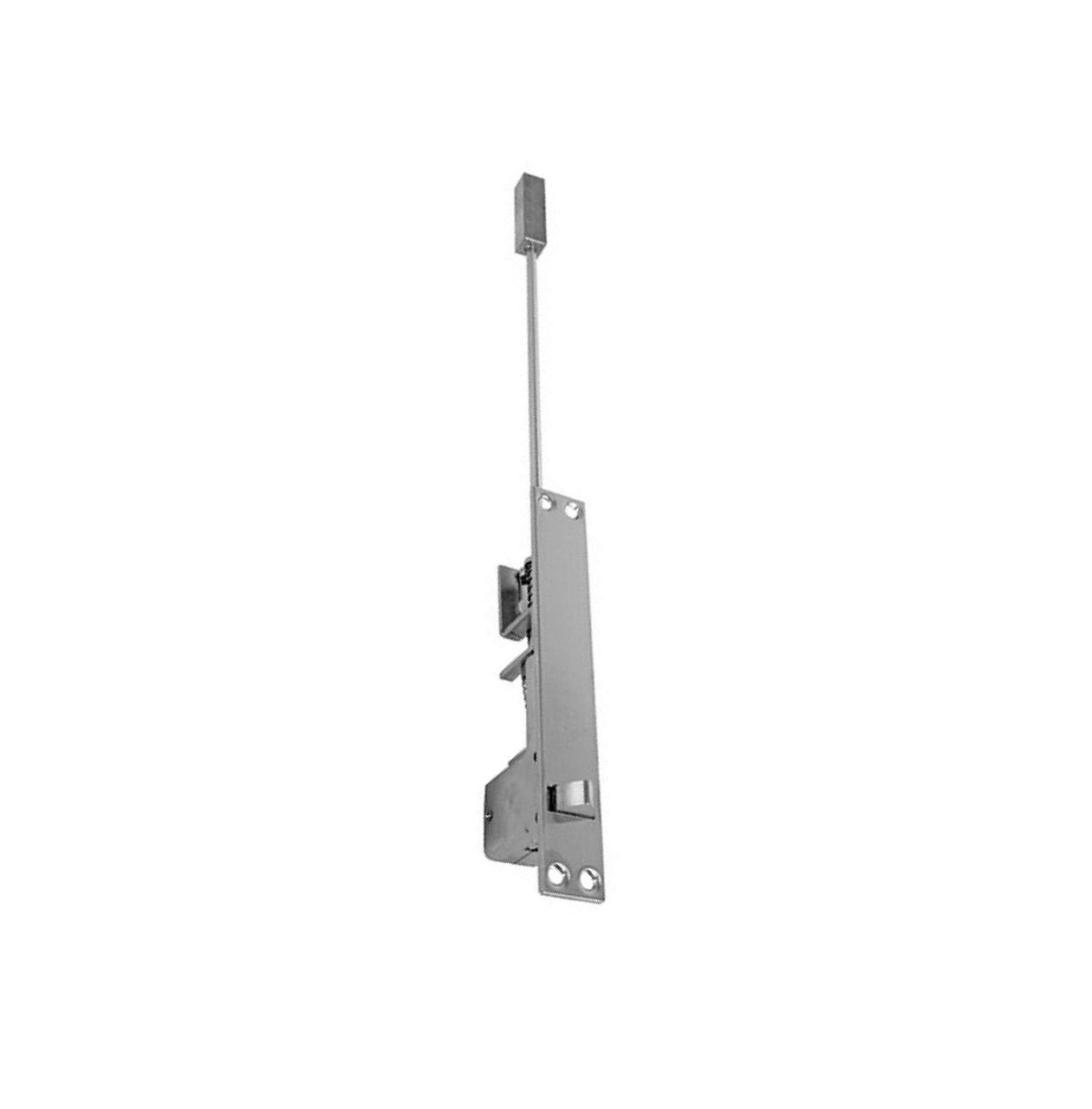

AC 909 Automatic flush bolts for metal doors

Description:

Area of application: For metal doors – To automatically secure the inactive leaf on pairs of swinging doors. Opening of active leaf automatically retracts top and bottom bolts.

Bolt throw: 3/4” (19 mm) Bolt head allows for 1/2” (13 mm) adjustment

Bolt backset: 3/4” (19 mm)

Fire Rating: 3 h

Standard: Conforms to ANSI/ BHMA A156.3

Material: Brass and steel, Brass and stainless steel
