10312-10 Cable connectors for concealed mounting

Description:

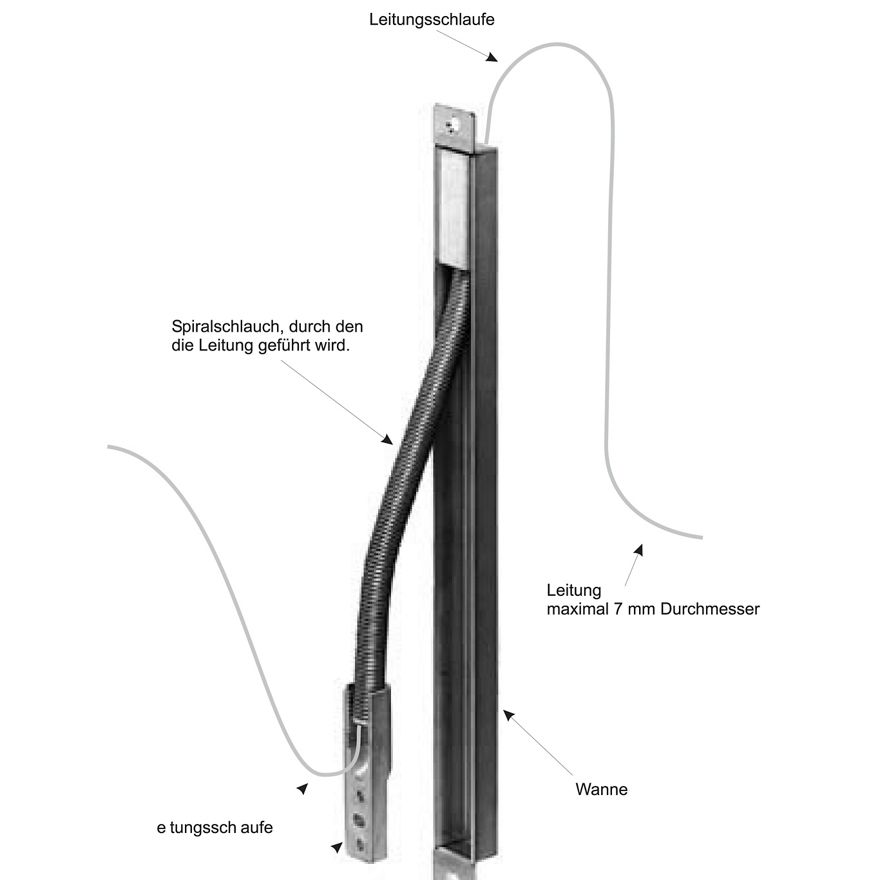

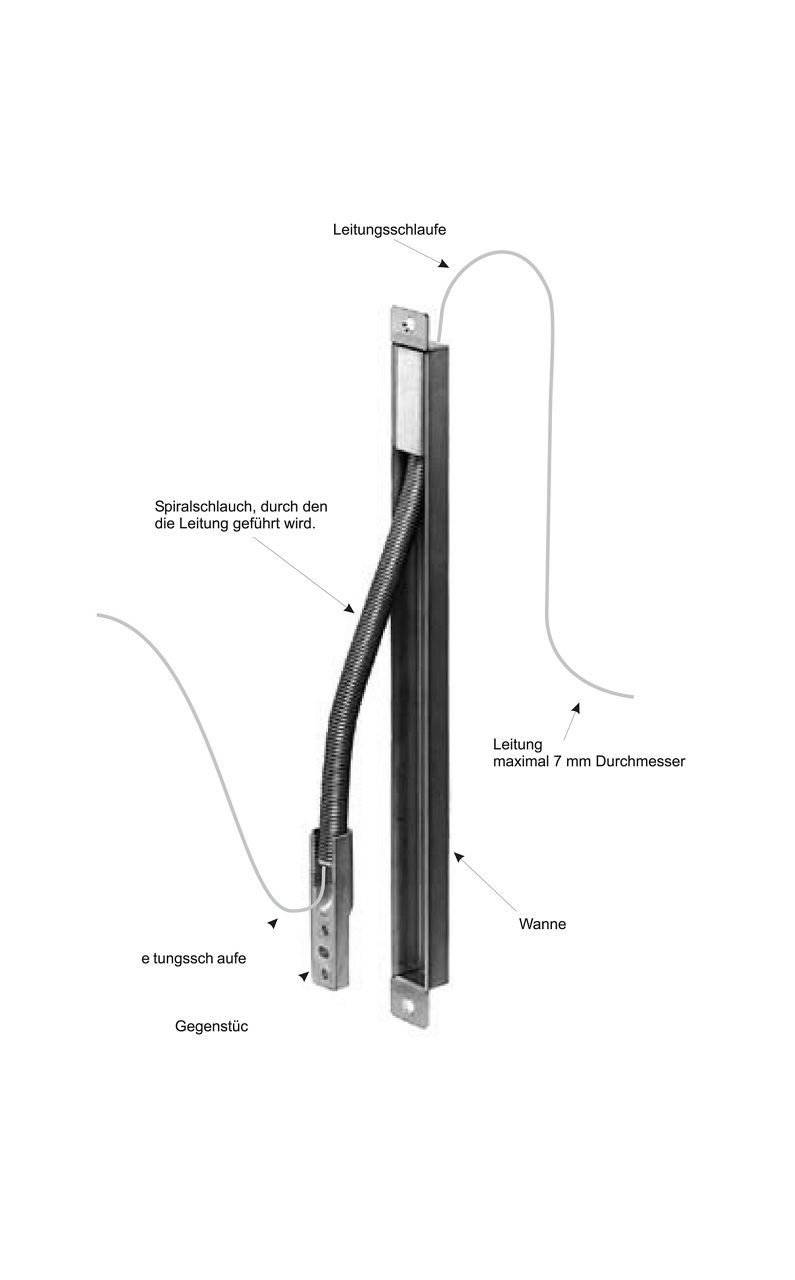

The concealed cable connector is a reliable, safe way of guiding supply cables from the door frame to the door leaf. The concealed mounting method in the door rebate ensures that the supply line is not accessible when the door is closed and so safe against attempted sabotage. As the supply line is guided through a metal spiral conduit, damage due to kicking or crushing is excluded.

Characteristics:

  • Housing and spiral conduit in rust-proofstainless steel
  • Suitable for cables of up to 7 mm in diameter
  • Suitable for mounting in wood, plastic or metal doors
  • Extendible spiral conduit to bridge a maximum length of 110 mm
  • Reliable cable guidance
  • Sabotage-proof when the door is closed

For direct current transmission from the door frame to the door leaf. Non-rusting flexible metal conduit. Fixing caps for mounting on the door frame and door leaf.
