Description:

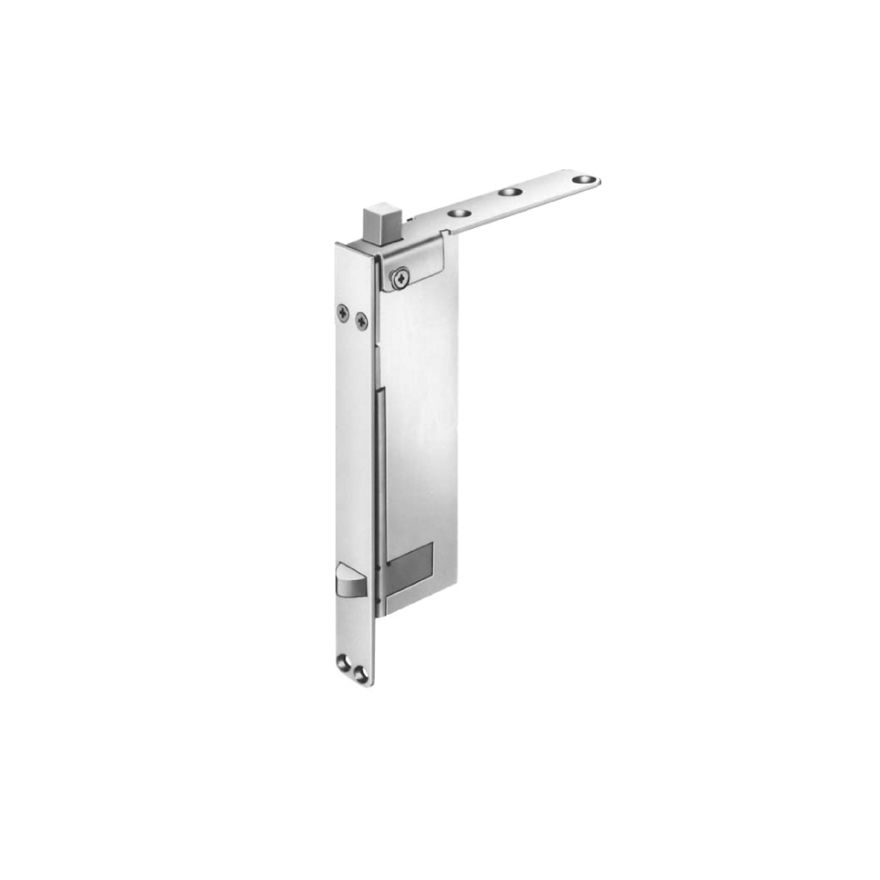

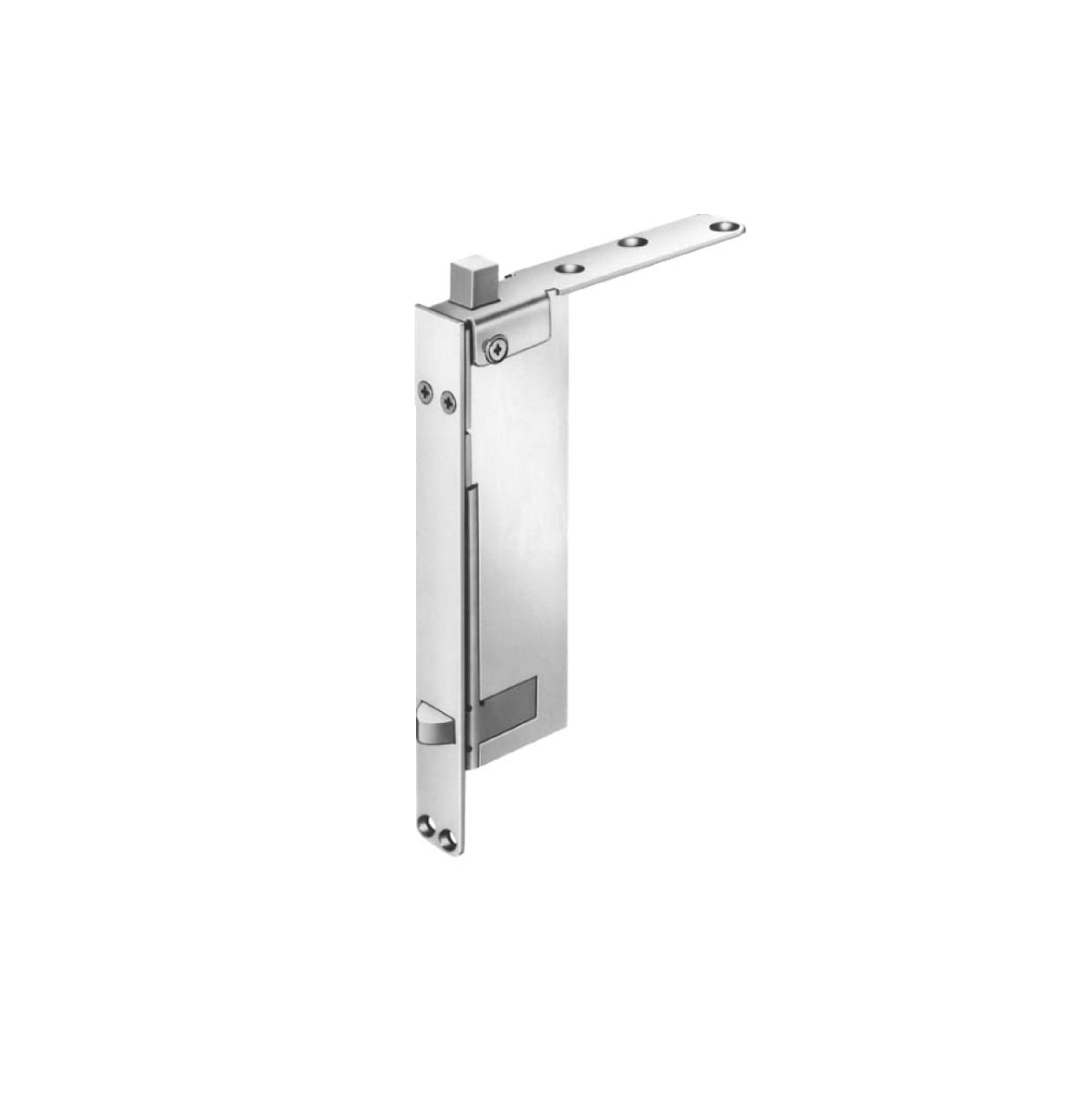

Area of application: For wooden doors – To automatically secure the inactive leaf on pairs of swinging doors. Opening of active leaf automatically retracts top and bottom bolts.

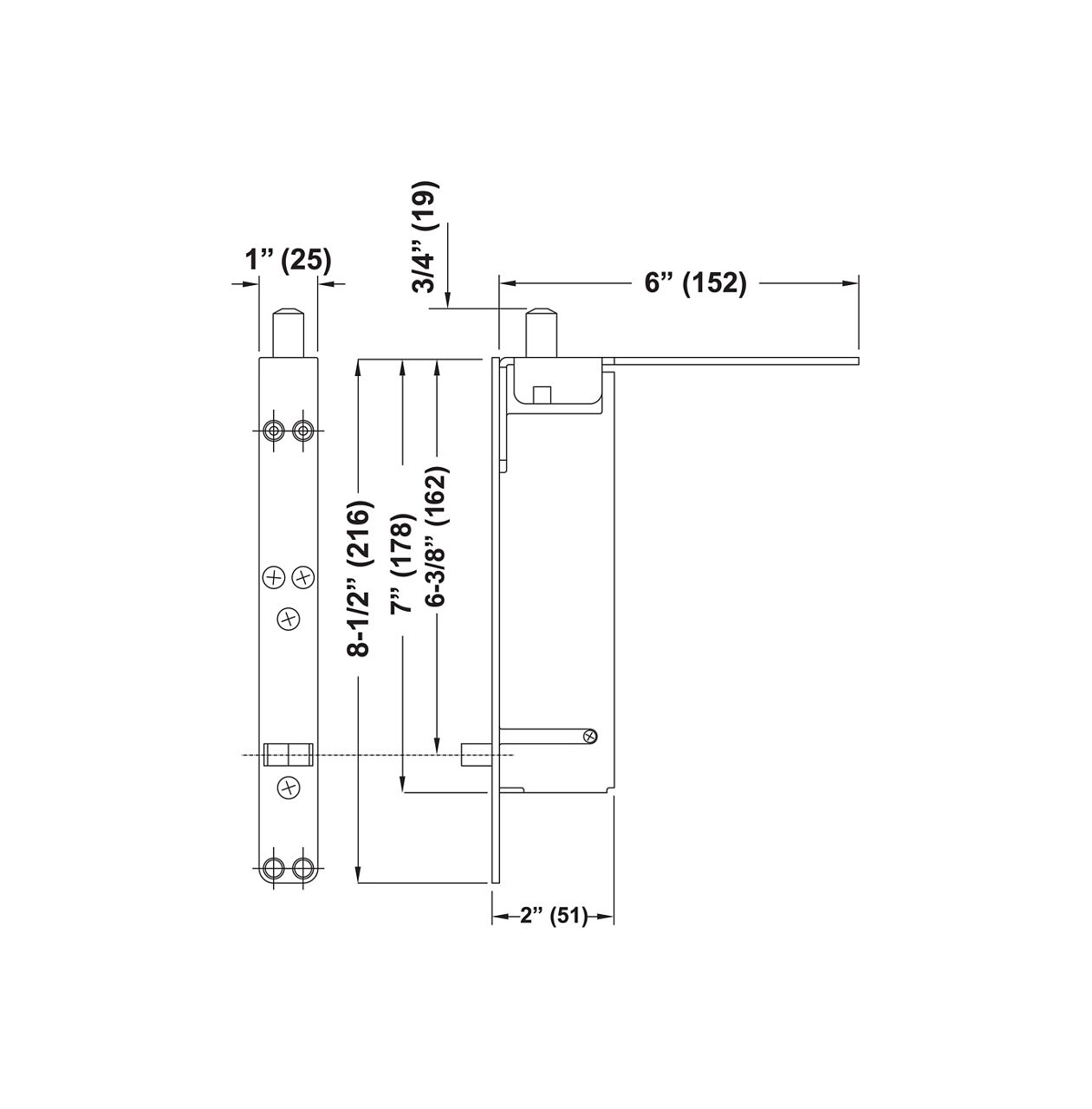

Bolt throw: 3/4” (19 mm) Bolt head allows for 1/2” (13 mm) adjustment
Bolt backset: 3/4” (19 mm)
Fire Rating: 1 1/2 h
Standard: Conforms to ANSI/ BHMA A156.3
Material: Brass and steel, Brass and stainless steel
