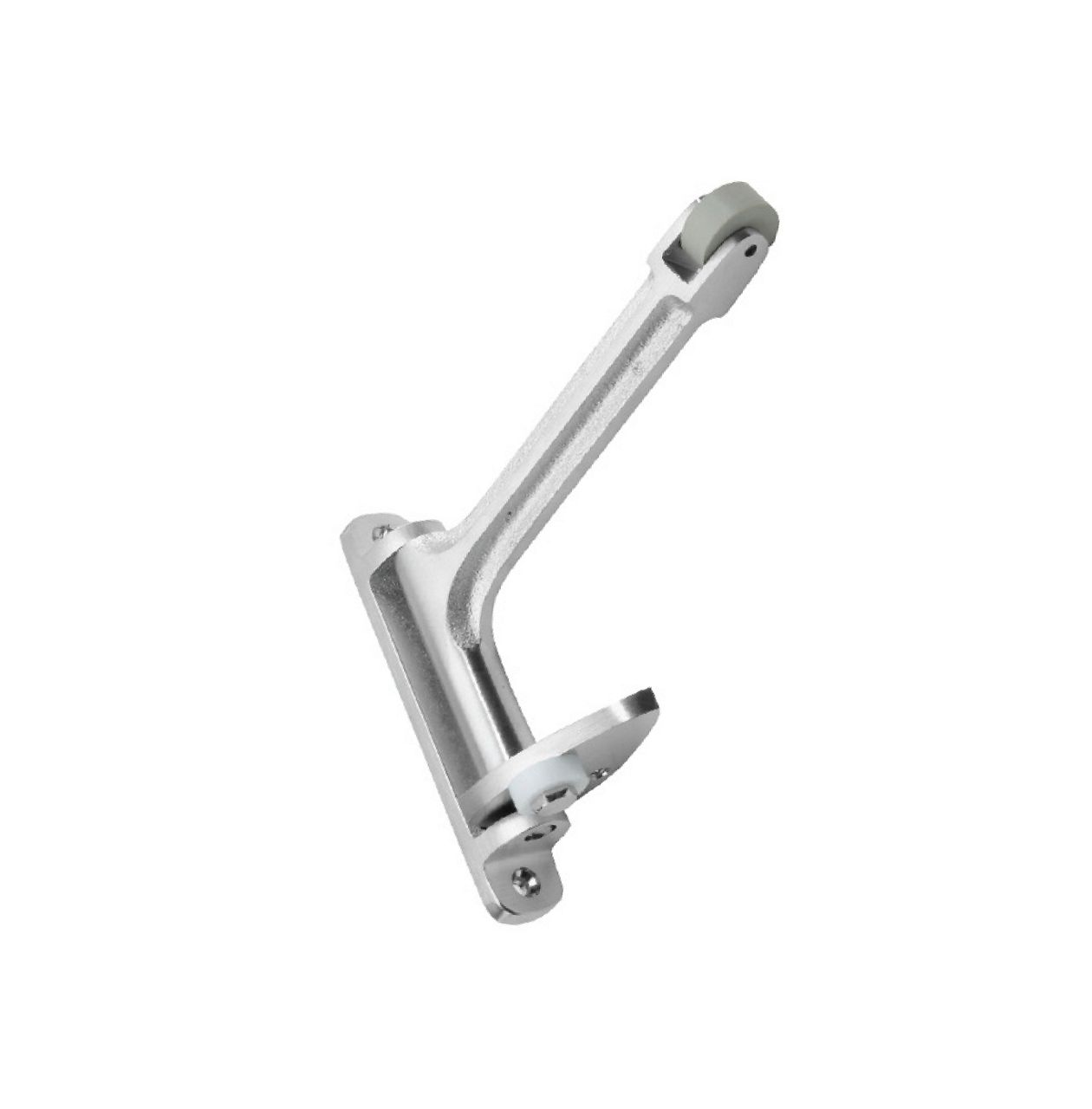

AC 908 Door coordinator

Description:

Area of application: Used to coordinate the closing of pairs of doors in jamb openings 36” (914 mm)  – 104” (2642 mm).

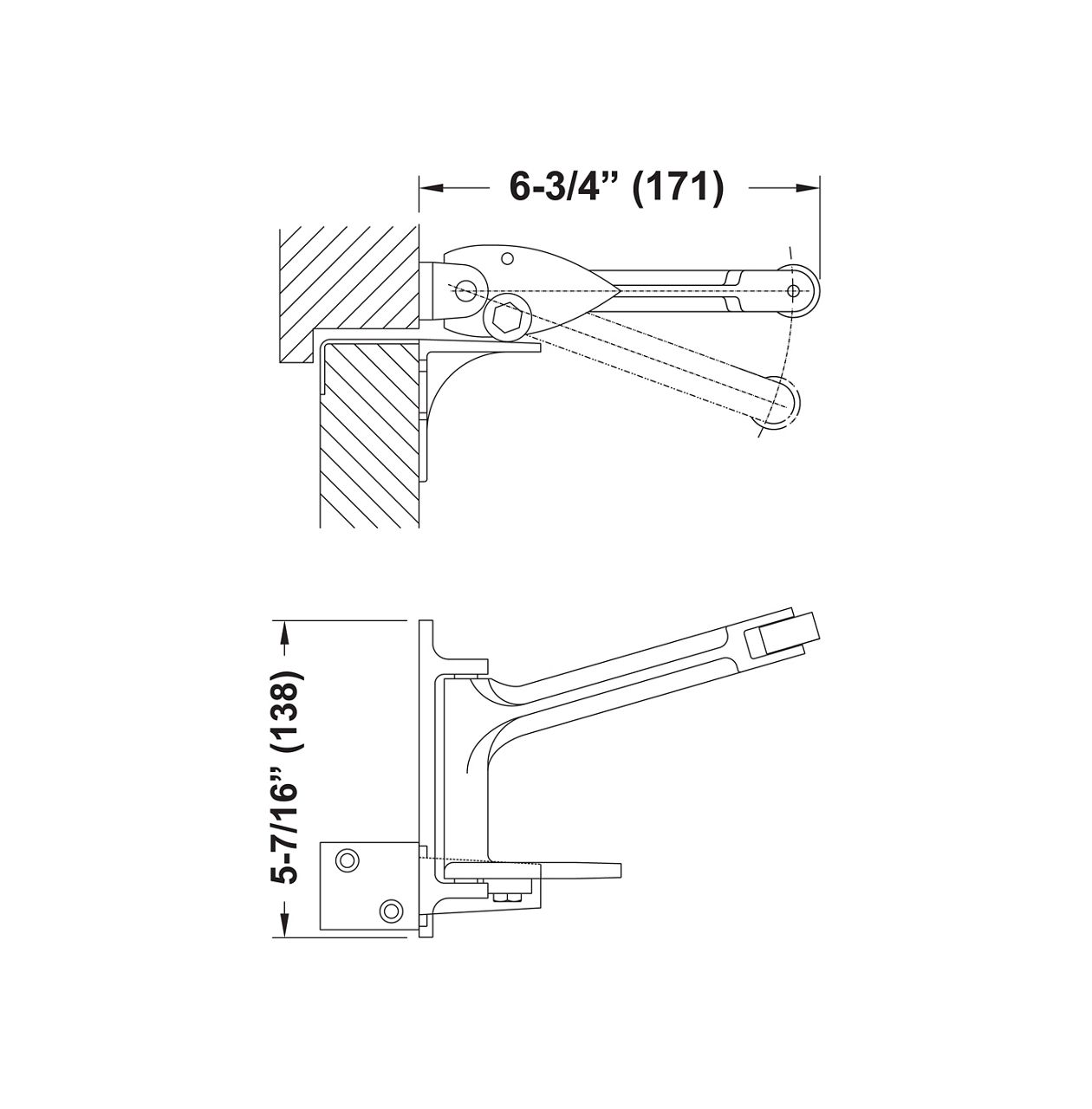

Features: The overall projection of the coordinator arm is 6 3/4” (171 mm). The rubber roller at the end of the coordinator arm cushions the contact of the active door when itis closing. The reversible nylon roller which lifts the coordinator arm insures smooth and long lasting operation.

Handing: Non-handed

Standard: UL10C

Material: Brass or Bronze, Stainless steel

Finish: 626 (US26D)
