Door closers

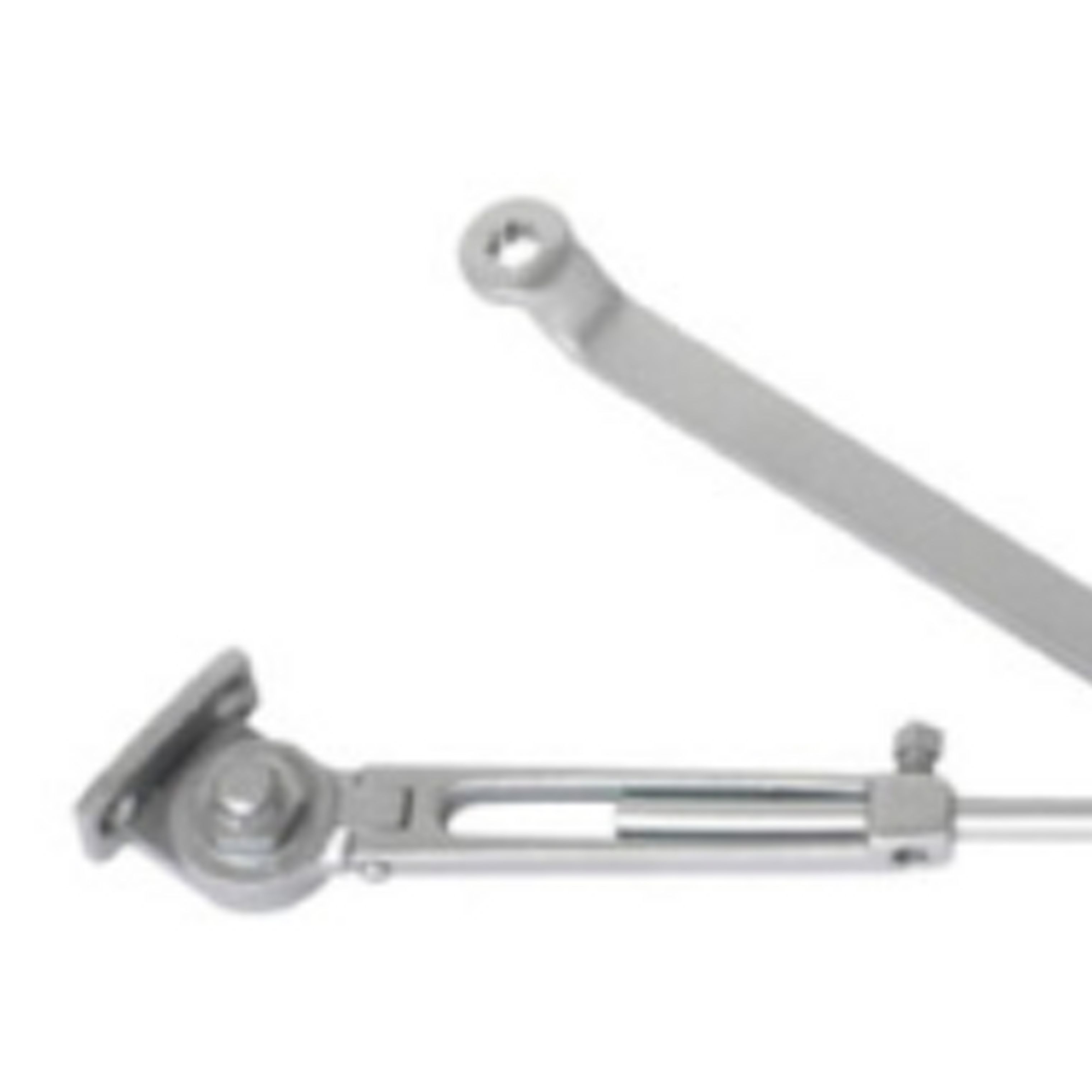

Suitable for Door Closer: 716U

Description:

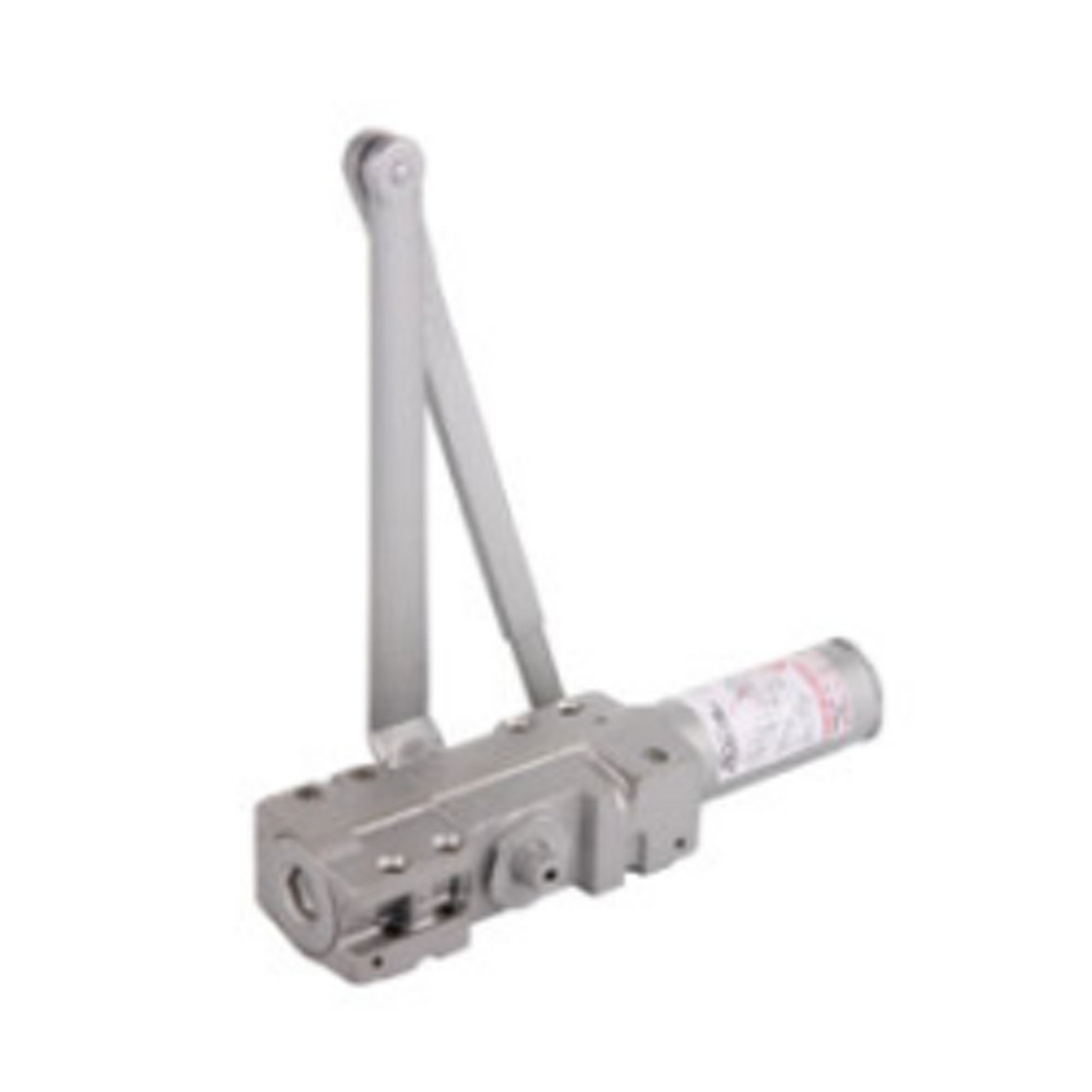

DC320U Series are heavy duty closers designed with cast iron body for installation on exterior and interior doors with high traffic. It is mainly for commercial market with the proven reliability and performance . The rack and pinion mechanism product is certified by ANSI/BHMAA156.4 Grade 1.

Features:

• Cast Iron Body
• Rack-and-pinion design
• Non-handed
• Adjustable Power: BF-6
• Built-in back check
• Forged steel arm
• Independent latch, sweep and back-check

Optional Features:

• Delayed action
• Metal cover (Non-handed)
• Option Arm: CUSH / HCUSH / EDA / HEDA

Compliance Standard:

• ANSI/BHMA A156.4, Grade1 certified
• UL listed
• ADA compliant (BF-4)

Description:

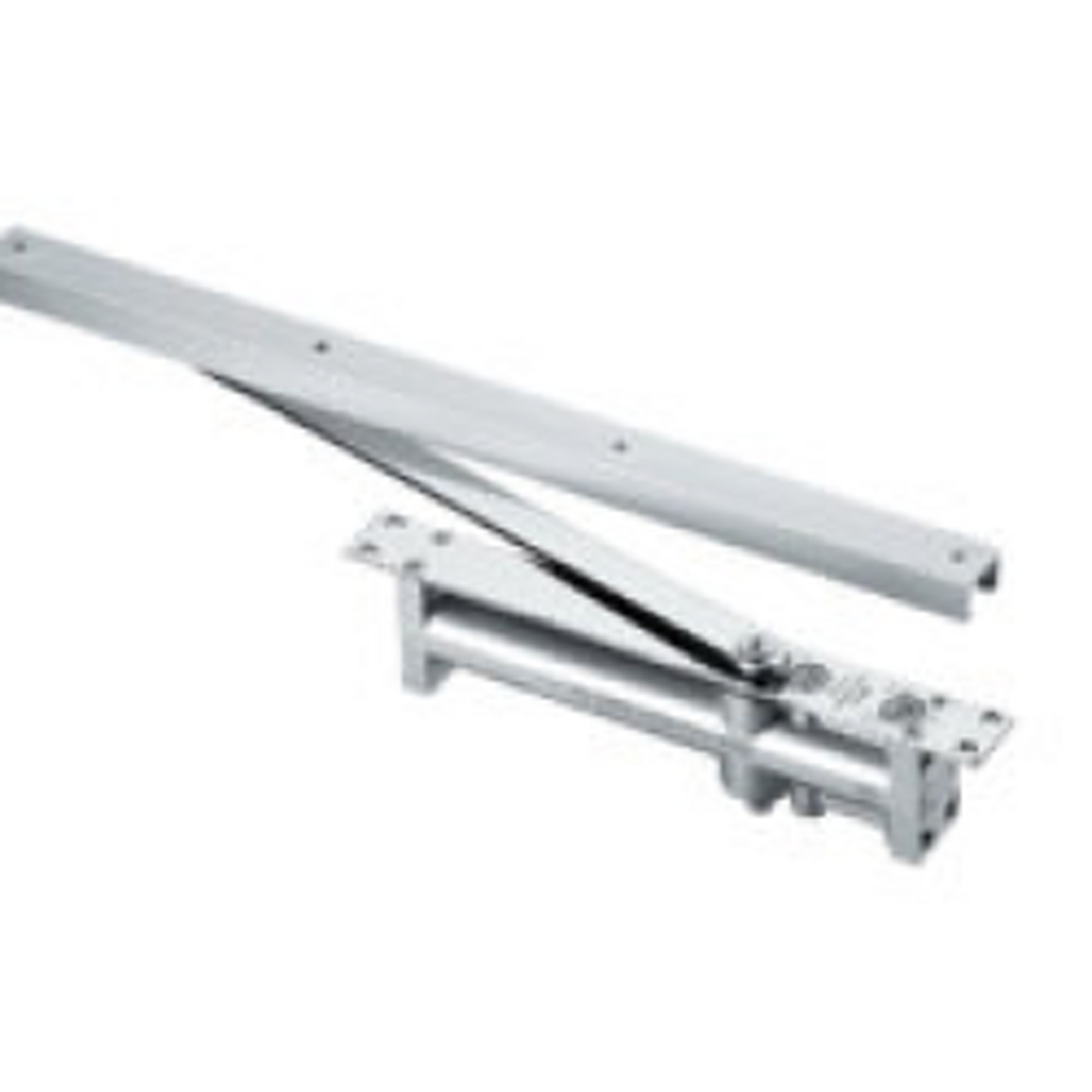

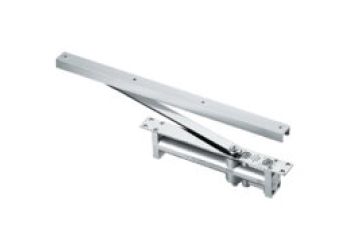

DC403U Grade 2 Medium Duty Closer ideally suited for commercial use.

Cast aluminum body

Size 3 Track Arm (Standard).

Hold Open (Optional) Standard Closing and latching speed.

Maximum opening angle 140 degree.

Closer mounted on door. Bracket on frame soffit.

Closer mounted on door. Arm jamb bracket on frame face

Closer mounted on frame-face. Arm jamb bracket on door top rail.

Closer mounted on door. Bracket on frame soffit.

Closer mounted on frace-face. Arm jamb bracket on door top rail.

Closer mounted on frame-face. Arm jamb bracket on door top rail.

Closer mounted on door. Bracket on frame soffit.

Closer mounted on door. Arm jamb bracket on frame face.

Closer mounted on frame-face. Arm jamb bracket on door top rail.
