Products

    Filter

      12 results

      • WSS

        Securitron WSS Wave Sense Switch
      • PB5 Series

        Securitron PB5 Push Buttons
      • NTS-1

        No touch request to exist station
      • AAIEPTS

        Exit Switch
      • AAIENTS

        Touchless Infrared Exit Switch
      • EPT

        Securitron Electrical Power Transfer
      • GBS

        Glass Break Emergency Door Release
      • AAIEBGU

        key resetable switch
      • AQD4 Series

        Dual voltage, 4 Amp 12VDC/24VDC Power Supply
      • AQD6 Series

        Dual voltage, 6 Amp 12VDC/24VDC Power Supply

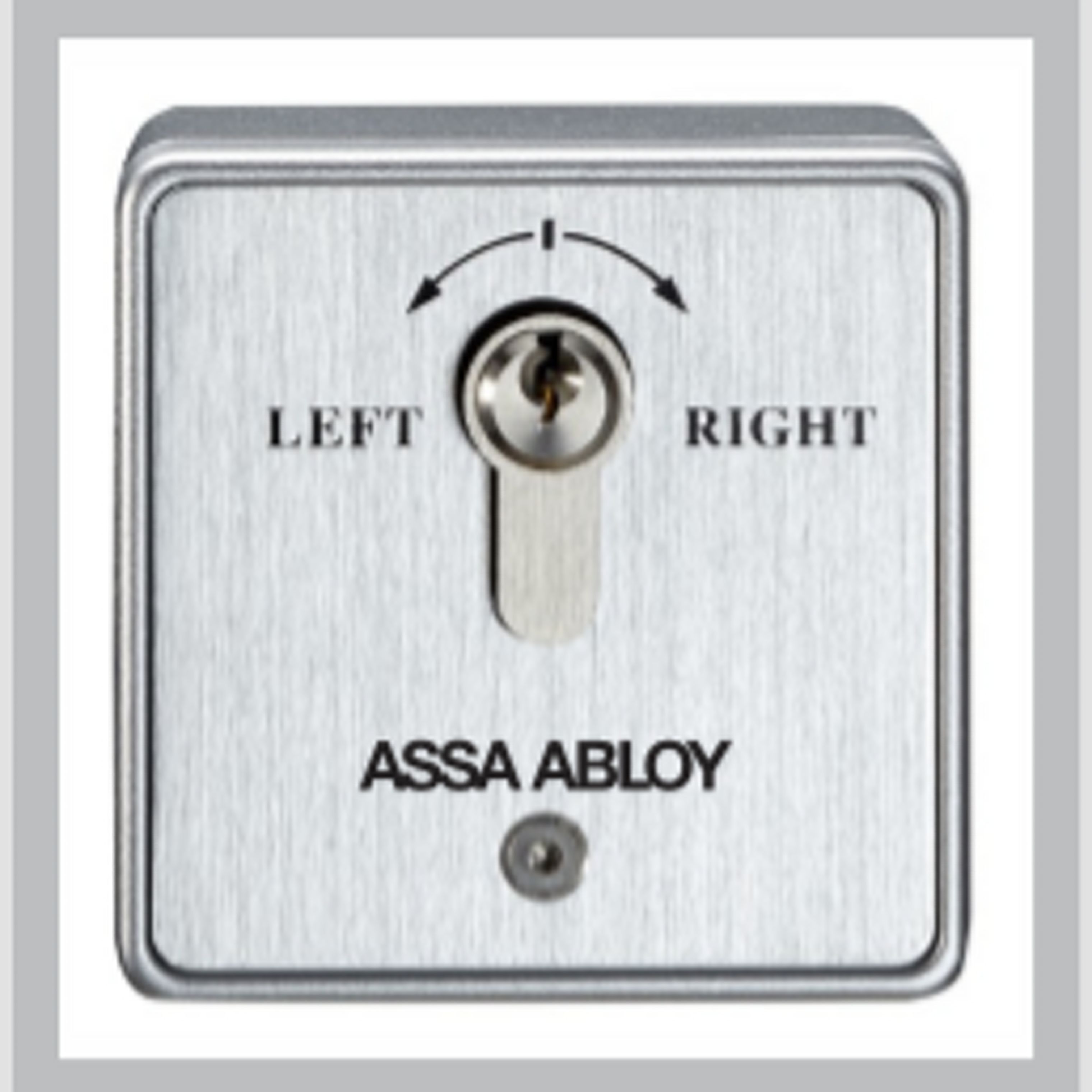

      • YKS-851EN

        Key Features
        • Size: 86Lx86Wx48.5H(mm)
        • Finish : be finished with wire drawing.
        • Current rating : 5A/125VAC (max).
        • Output Contact : NO/NC/COM, NO/NC/COM.
        • Mechanical life : 500,000 tested.
        • Feature  : Reset automatically open & close (need order)
        • Suitable for door : Hollow Door
        • Safe Type : Weatherproof, defend and Duplicate the Key
        • Operating temp : 10-+55(14-131F)
        • Operating humidity : 0-95% (non - condensing)
        • Panel Material : Aluminium Panel.
        • Weight : 0.4kg
      • DPS-1

        Used to monitor the status of a door or to provide an initiate signal to Securitron®'s XDT delayed exit logic timers and DPA door prop logic timers.

        DPS-W Concealed Door Position Switch for Wood Doors

        Both components require drilling a 3/4" [19mm] diameter hole in the door and frame directly opposite one another. The DPS-W style is a Normally Closed switch (SPST). The distance depends on the door type and gap between the door and frame but is in the 1/2"-3/4" [12-18mm] range. Includes a magnetic switch and a cylindrical permanent magnet.



        DPS-M Concealed Door Position Switch for Metal Doors Both components require drilling a 3/4" [19mm] diameter hole in the door and frame directly opposite one another. The large magnet is needed to overcome the shielding effect of a steel door. The DPS-M style is a Normally Closed switch (SPST). The distance depends on the door type and gap between the door and frame but is in the 1/2"-3/4" [12-18mm] range. Includes a magnetic switch and a cylindrical permanent magnet.



        Specification Data
        • Operating Temperature: -40 to +150F [-40 to +65C]
        • Switching Current AC/DC (max): 0.4A
        • MagnaCare® lifetime replacement, no fault warranty
        Models Part # Description DPS-M-BK DPS for Metal Doors - Black DPS-M-GY DPS for Metal Doors - Grey DPS-M-WH DPS for Metal Doors - White DPS-W-BK DPS for Wood Doors - Black DPS-W-GY DPS for Wood Doors - Grey DPS-W-WH DPS for Wood Doors - White
      Showing 12 of 12
