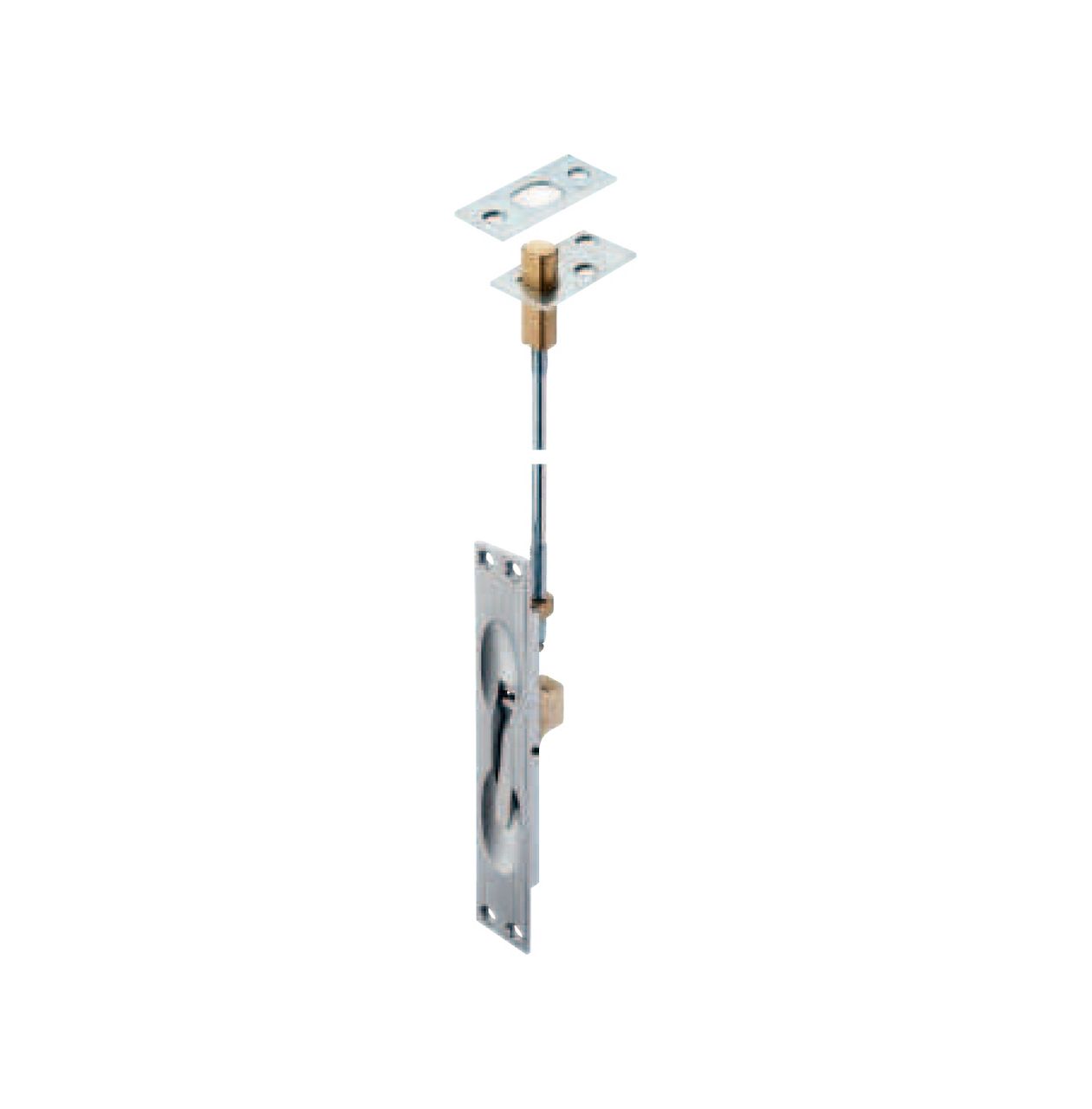

AC 901 Manual flush bolts for metal doors

Description:

Area of application: For metal doors – To manually secure the inactive leaf on pairs of doors

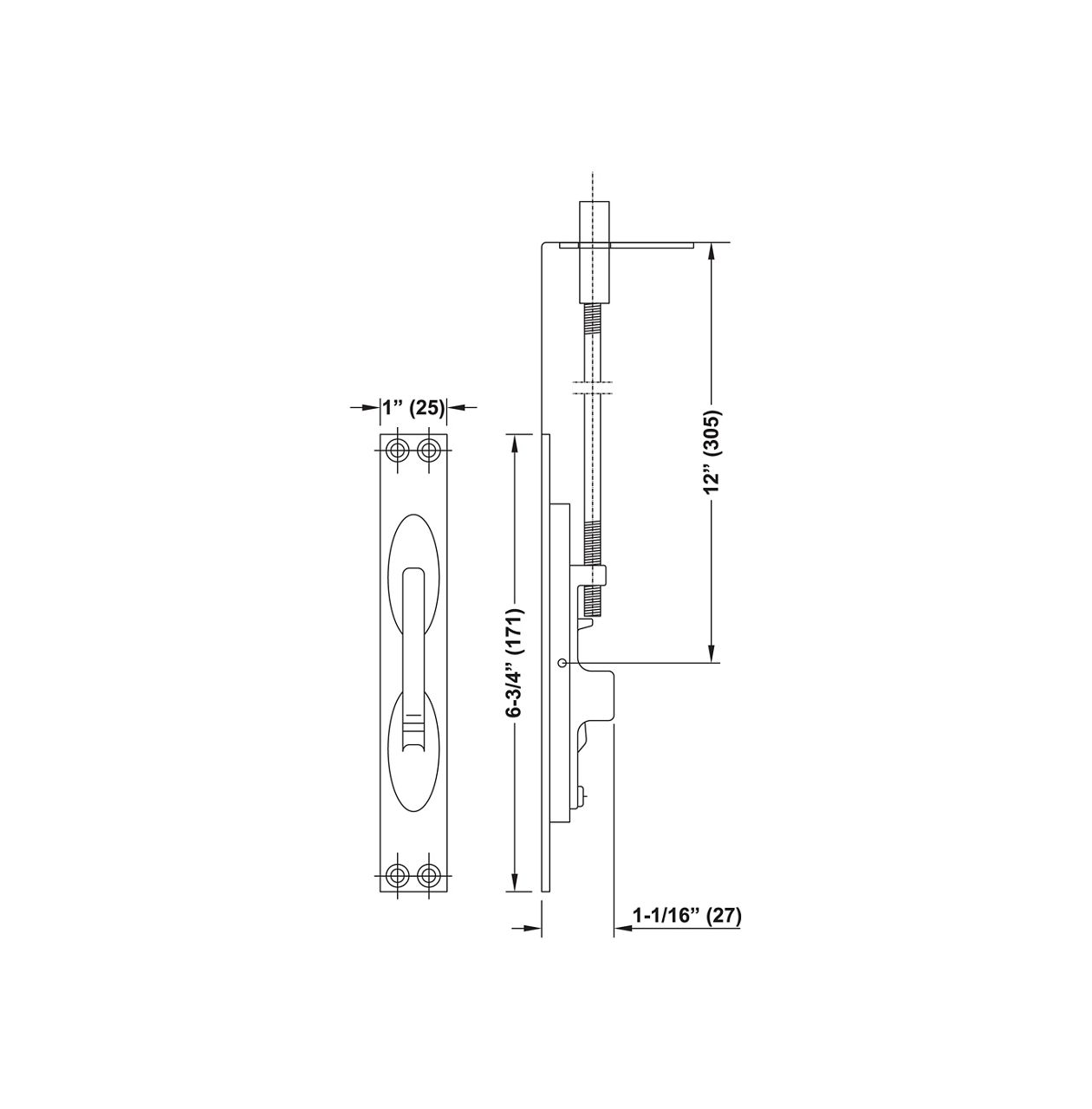

Bolt throw: 3/4” (19 mm) Bolt head allows for1/2” (13 mm) adjustment

Bolt backset: 3/4” (19 mm)

Threaded bolt length: Ships standard with 12” (305 mm), suitable for doors up to 96” (2438mm) in height

Fire Rating: 3 hours

Standard: Conforms to ANSI/ BHMA A156.16

Material: Brass and steel, Brass and stainless steel
