Electromechanical Door Closers
Products
Filter
8 results

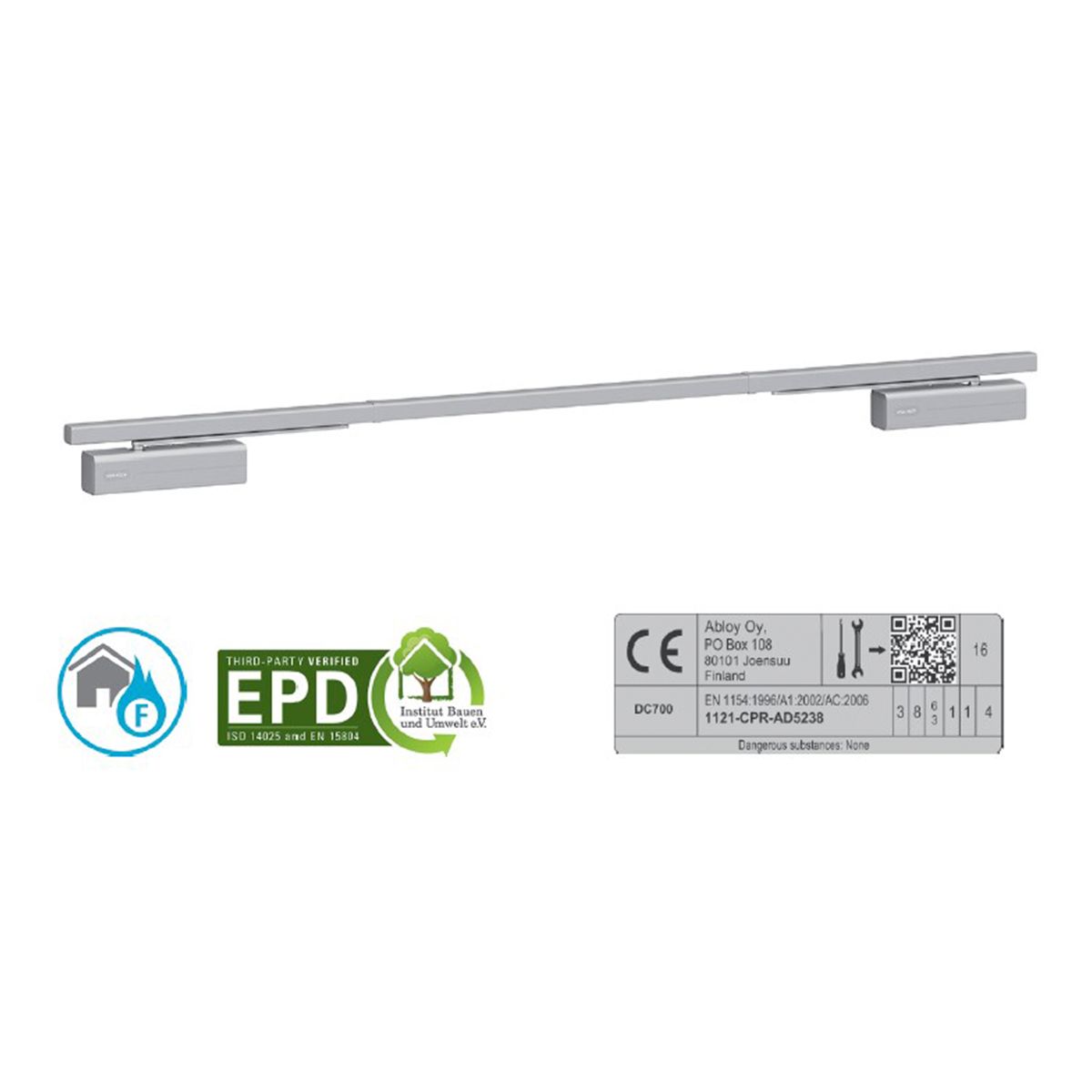

FD461-DC700
Variations
- ASSA ABLOY-FD461-DC700
- EN 3-6
Technical Attributes
- Door closer with Cam-Motion® technology and guide rail with integrated mechanical coordinator
- Certified in compliance with EN 1158, size 3-6
- For double leaf doors 1250 - 2800mm wide
- Correct closing sequence guaranteed for double leaf doors, inactive leaf closes before active leaf starts to close
- Active leaf able to stay open in any selected angle up to 150° when inactive leaf is open
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Variable adjustable closing force
- Opening angle of active leaf (hinge side / non-hinge side) 150° / 120°
- Opening angle of inactive leaf (hinge side / non-hinge side) 170° / 120°
FD460-DC700
Variations
- ASSA ABLOY-FD460-DC700
- EN 3-6
Technical Attributes
- Door closer with Cam-Motion® technology and guide rail with electromechanical hold open device
- Certified in compliance with EN 1155, size 3-6
- For single leaf doors up to 1400mm wide
- Can be used for left and right-handed doors
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Variable adjustable closing force
- Opening angle up to 130°
- Hold open angle between 70°-130°
FD464-DC500
Variations
- ASSA ABLOY-FD464-DC500
- EN 1-4
Technical Attributes
- Door closer with Cam-Motion® technology and guide rail with integrated mechanical coordinator and one electromechanical hold open device
- Certified in compliance with EN 1158 and EN 1155, size 1-4
- For double leaf doors 1250 - 2800mm wide
- Correct closing sequence guaranteed for double leaf doors,
- inactive leaf closes before active leaf starts to close
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Variable adjustable closing force
- Opening angle of active leaf (hinge side / non-hinge side)
- 150° / 120°
- Hold open angle of inactive leaf (hinge side / non-hinge side)
- 70° - 130° / 70° - 120°
FD461-DC500
Variations
- ASSA ABLOY-FD461-DC500
- EN 1-4
Technical Attributes
- Door closer with Cam-Motion® technology and guide rail with integrated mechanical coordinator
- Certified in compliance with EN 1158, size 1-4
- For double leaf doors 1250 - 2800mm wide
- Correct closing sequence guaranteed for double leaf doors,
- inactive leaf closes before active leaf starts to close
- Active leaf able to stay open in any selected angle up to 150° when inactive leaf is open
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Variable adjustable closing force
- Opening angle of active leaf (hinge side / non-hinge side) 150° /
- 120° Opening angle of inactive leaf (hinge side / non-hinge side)
- 170° / 120°
FD460-DC500
Variations
- ASSA ABLOY-FD460-DC500
- EN 1-4
Technical Attributes
- Door closer with Cam-Motion® technology and guide rail with electromechanical hold open device
- Certified in compliance with EN 1155, size 1-4
- For single leaf doors up to 1100mm wide
- Can be used for left and right-handed doors
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Variable adjustable closing force
- Opening angle up to 130°
- Hold open angle between 70°-130°
FD462-DC700
Variations
- ASSA ABLOY-FD462-DC700
- EN 3-6
Technical Attributes
- Door closer with Cam-Motion® technology and guide rail with integrated mechanical coordinator and two electromechanical hold open devices
- Certified in compliance with EN 1158 and EN 1155, size 3-6
- For double leaf doors 1250 - 2800mm wide
- Correct closing sequence guaranteed for double leaf doors, inactive leaf closes before active leaf starts to close
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Variable adjustable closing force
- Opening angle of active leaf (hinge side / non-hinge side) 120°
- Hold open angle of inactive leaf (hinge side / non-hinge side) between 70° - 120°
- Possible to keep active leaf or both door leaves open electromechanically
FD462-DC500
Variations
- ASSA ABLOY-FD462-DC500
- EN 1-4
Technical Attributes
- Door closer with Cam-Motion® technology and guide rail with integrated mechanical coordinator and two electromechanical hold open devices
- Certified in compliance with EN 1158 and EN 1155, size 1-4
- For double leaf doors 1250 - 2800mm wide
- Correct closing sequence guaranteed for double leaf doors, inactive leaf closes before active leaf starts to close
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Variable adjustable closing force
- Opening angle of active leaf (hinge side / non-hinge side) 120°
- Hold open angle of inactive leaf (hinge side / non-hinge side) between 70° - 120°
- Possible to keep active leaf or both door leaves open electromechanically
FD464-DC700
Variations
- ASSA ABLOY-FD464-DC700
- EN 3-6
Technical Attributes
- Door closer with Cam-Motion® technology and guide rail with integrated mechanical coordinator and one electromechanical hold open device
- Certified in compliance with EN 1158 and EN 1155, size 3-6
- For double leaf doors 1250 - 2800mm wide
- Correct closing sequence guaranteed for double leaf doors, inactive leaf closes before active leaf starts to close
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Variable adjustable closing force
- Opening angle of active leaf (hinge side / non-hinge side) 150° / 120°
- Hold open angle of inactive leaf (hinge side / non-hinge side) 70° - 130° / 70° - 120°
Showing 8 of 8
