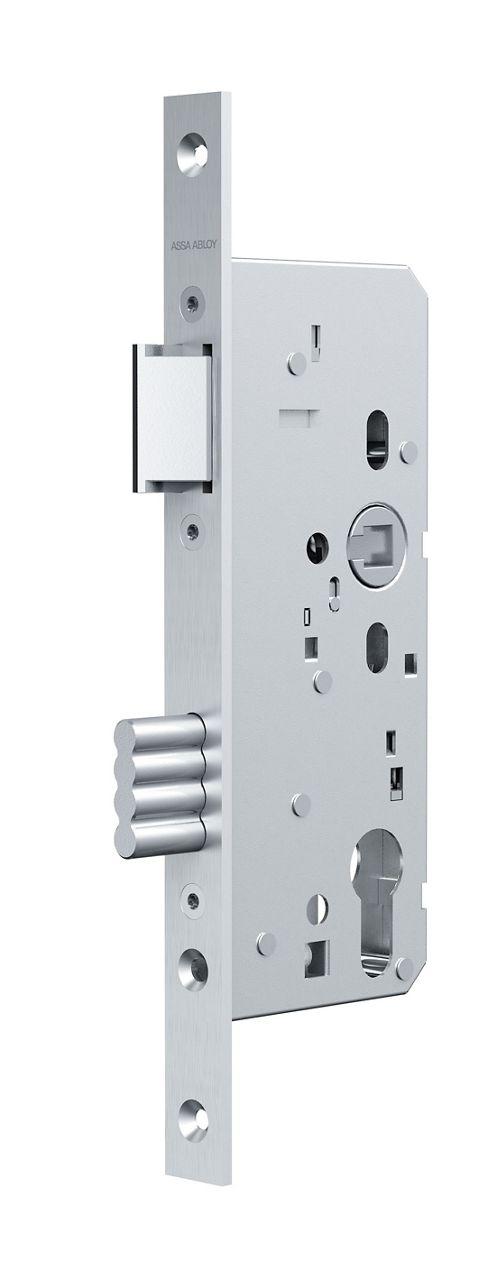

Mortice Lockcase Sash Lock

Key features (OneSystem):

• Made of SS 304
• 8 Latching functions
• Fire rated
• Non-handed - latch reversible
• Environmental product declaration (EPD) in accordance with EN 15804
• Tested for 1,000,000 cycles and 300 kg door weight
• Compliance with EN 12209
• Small rear backset 17 mm
• Continuous screw connection of fittings
• Suitable espagnolette integrated in the striking plate
• 20 mm bolt throw with a single rotation
• Also available as a fire protection version
• Closed lock case
• Latch DIN left/right reversible without tools
• Stainless steel faceplate
• Deadbolt with anti-tampering design
• Suitable for Euro profile cylinder

• High corrosion resistance
• High durability
• Versatile usage
• Can be used for fire doors
• Lesser number of SKU's

Technical details:

• Center to center - 72mm
• Backset - 55mm
• Fits standard cam euro profile cylinder
• Single throw projection deadbolt - 20mm
• Suitable for hinged timber, metal and fire doors

Available Finishes for OneSystem lock: SS- Satin Stainless Steel
