Auxiliary Hardware
Products
AC 901 Manual flush bolts for metal doors
Description:
Area of application: For metal doors – To manually secure the inactive leaf on pairs of doors
Bolt throw: 3/4” (19 mm) Bolt head allows for1/2” (13 mm) adjustment
Bolt backset: 3/4” (19 mm)
Threaded bolt length: Ships standard with 12” (305 mm), suitable for doors up to 96” (2438mm) in height
Fire Rating: 3 hours
Standard: Conforms to ANSI/ BHMA A156.16
Material: Brass and steel, Brass and stainless steel
AC 902 Manual flush bolts for wooden doors
Description:
Area of application: For wooden doors – To manually secure the inactive leaf on pairs of doors
Bolt throw: 3/4” (19 mm) Bolt head allows for 1/2” (13 mm) adjustment
Bolt backset: 3/4” (19 mm)
Fire Rating: 1-1/2 h
Standard: Conforms to ANSI/ BHMA A156.16
Material: Brass and steel, Brass and stainless steel
AC 909 Automatic flush bolts for metal doors
Description:
Area of application: For metal doors – To automatically secure the inactive leaf on pairs of swinging doors. Opening of active leaf automatically retracts top and bottom bolts.
Bolt throw: 3/4” (19 mm) Bolt head allows for 1/2” (13 mm) adjustment
Bolt backset: 3/4” (19 mm)
Fire Rating: 3 h
Standard: Conforms to ANSI/ BHMA A156.3
Material: Brass and steel, Brass and stainless steel
AC 910 Automatic flush bolts for wooden doors
Description:
Area of application: For wooden doors – To automatically secure the inactive leaf on pairs of swinging doors. Opening of active leaf automatically retracts top and bottom bolts.
Bolt throw: 3/4” (19 mm) Bolt head allows for 1/2” (13 mm) adjustment
Bolt backset: 3/4” (19 mm)
Fire Rating: 1 1/2 h
Standard: Conforms to ANSI/ BHMA A156.3
Material: Brass and steel, Brass and stainless steel
AC 907 Flush pull
Description:
Material: Stainless steel
Finish: 626 (US26D)
AC 908 Door coordinator
Description:
Area of application: Used to coordinate the closing of pairs of doors in jamb openings 36” (914 mm) – 104” (2642 mm).
Features: The overall projection of the coordinator arm is 6 3/4” (171 mm). The rubber roller at the end of the coordinator arm cushions the contact of the active door when itis closing. The reversible nylon roller which lifts the coordinator arm insures smooth and long lasting operation.
Handing: Non-handed
Standard: UL10C
Material: Brass or Bronze, Stainless steel
Finish: 626 (US26D)

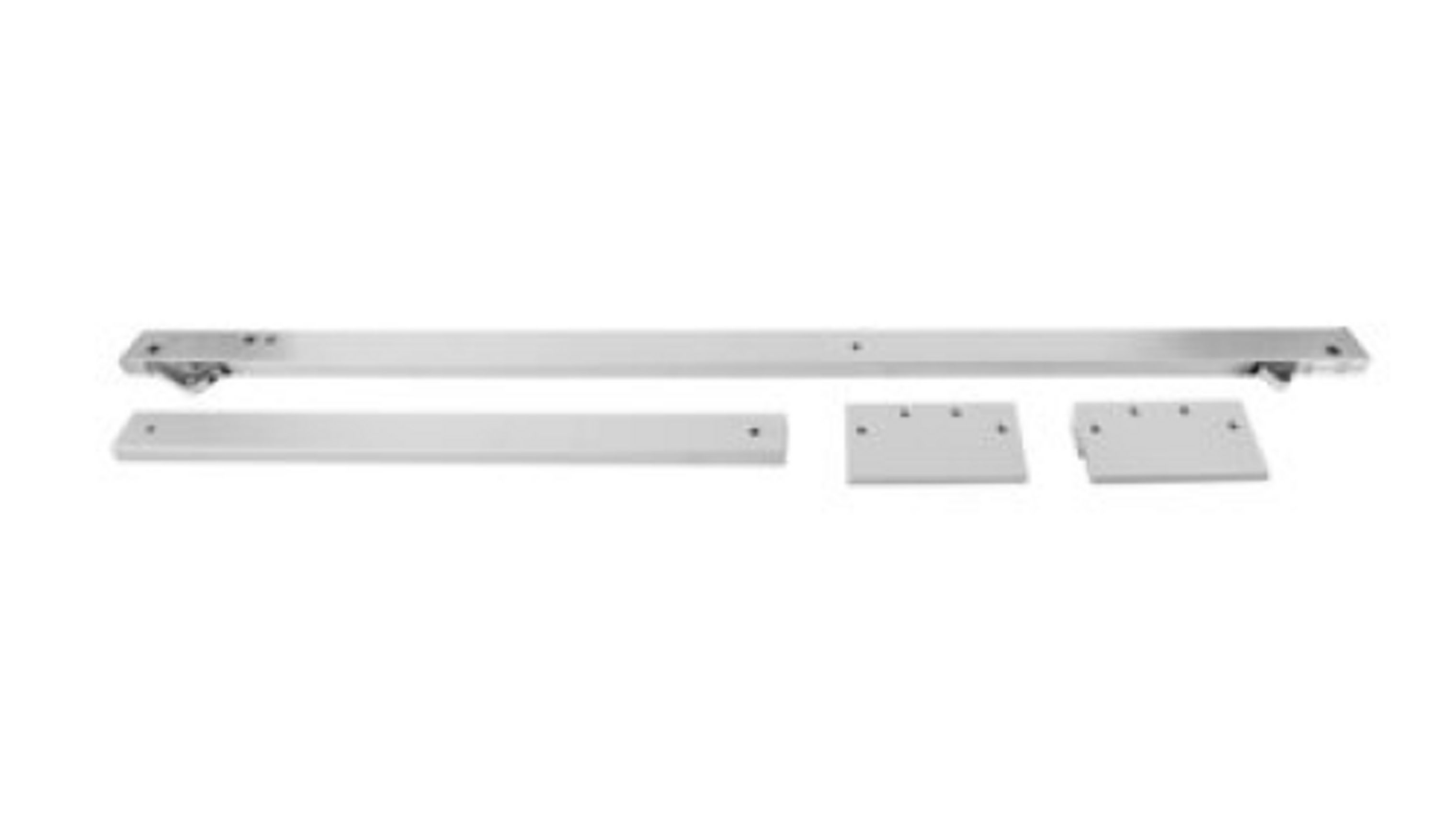

AC 912 Door coordinator for double doors
Description:
Area of application: For controlling the closing sequence of a pair of doors
Features: Mounted to the soffit of the door frame. Provides a smooth and tamper-proof means of controlling the closing sequence of a pair of doors. Equipped with an over-ride feature to prevent damage of the doors and hinges
Fire Rating: Up to 3 h
Material: Steel
AC 903 Dust proof strike
Description:
Area of application: Designed to eliminate dust and debris from collecting in the floor strike. Plate is removable, making it versatile for carpet, threshold and concrete installations. Compatible with flush bolts in this catalog.
Standard: Conforms to ANSI/ BHMA A156.16
Finish: 626 (US26D)
AC 914 / AC 913 Push / Pull plates
Description:
Version: Bevelled on 4 sides
Installation: Drilled for countersunk screw mounting
Standard: Conforms to ANSI/ BHMA A156.6
Material: Stainless steel
Finish: 630 (US32D)
AC 904 Floor stops & Door holders
Description:
Standard: Conforms to ANSI/BHMA A156.16
Material: Cast brass
Finish: 626 (US26D), 630 (US32D)
AAA610 Protection plates
Description:
- Mop Plate
- Kick Plate
- Stretcher Plate
- Armor Plate
Dimensions: 1.5mm Thickness
Length: as per request
Height: as per request
Finish: 626 (US26D), 630 (US32D)
How to order: Product code + Size
Example: Size: 800(L)200(H)AAA610800200
AC 917M Door silencers
Description:
Area of application: For metal frames
Material: Rubber
Colour: Grey
Installation: Snap-in
Finish: 626 (US26D), 630 (US32D)
