Overhead surface mounted door closer

Surface door closers mount to the surface of the door and frame and close the door through an arm linkage. Surface door closers are popular because they are easy to install and service.

Products

    Filter

      2 results

      • DC320U Overhead surface mounted door closer

        Description:

        DC320U Series are heavy duty closers designed with cast iron body for installation on exterior and interior doors with high traffic. It is mainly for commercial market with the proven reliability and performance . The rack and pinion mechanism product is certified by ANSI/BHMAA156.4 Grade 1.

        Features:

        • Cast Iron Body
        • Rack-and-pinion design
        • Non-handed
        • Adjustable Power: BF-6
        • Built-in back check
        • Forged steel arm
        • Independent latch, sweep and back-check

        Optional Features:

        • Delayed action
        • Metal cover (Non-handed)
        • Option Arm: CUSH / HCUSH / EDA / HEDA

        Compliance Standard:

        • ANSI/BHMA A156.4, Grade1 certified
        • UL listed
        • ADA compliant (BF-4)

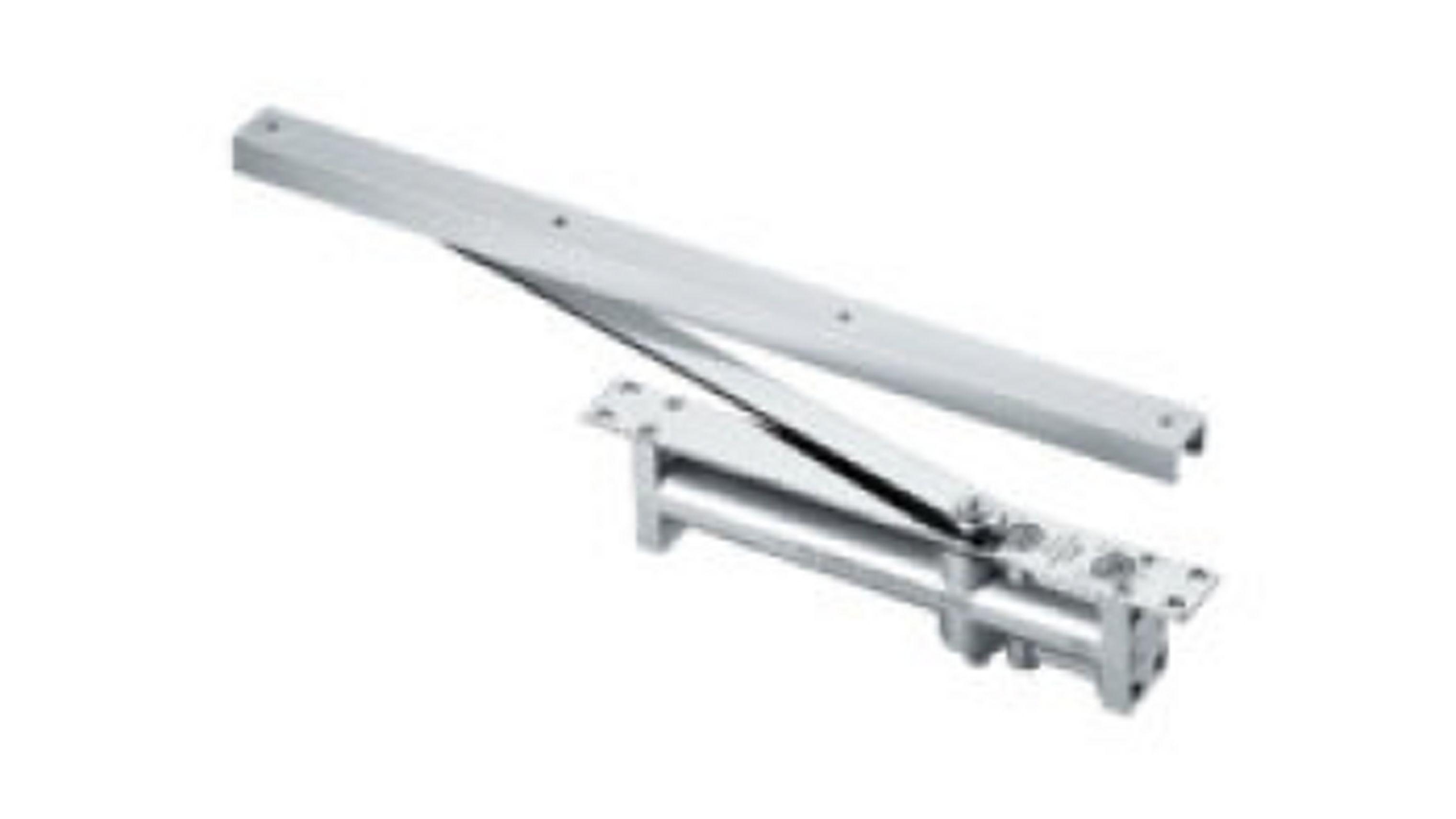

      • DC403U Overhead surface mounted door closer

        Description:

        DC403U Grade 2 Medium Duty Closer ideally suited for commercial use.

        Cast aluminum body

        Size 3 Track Arm (Standard).

        Hold Open (Optional) Standard Closing and latching speed.

        Maximum opening angle 140 degree.
