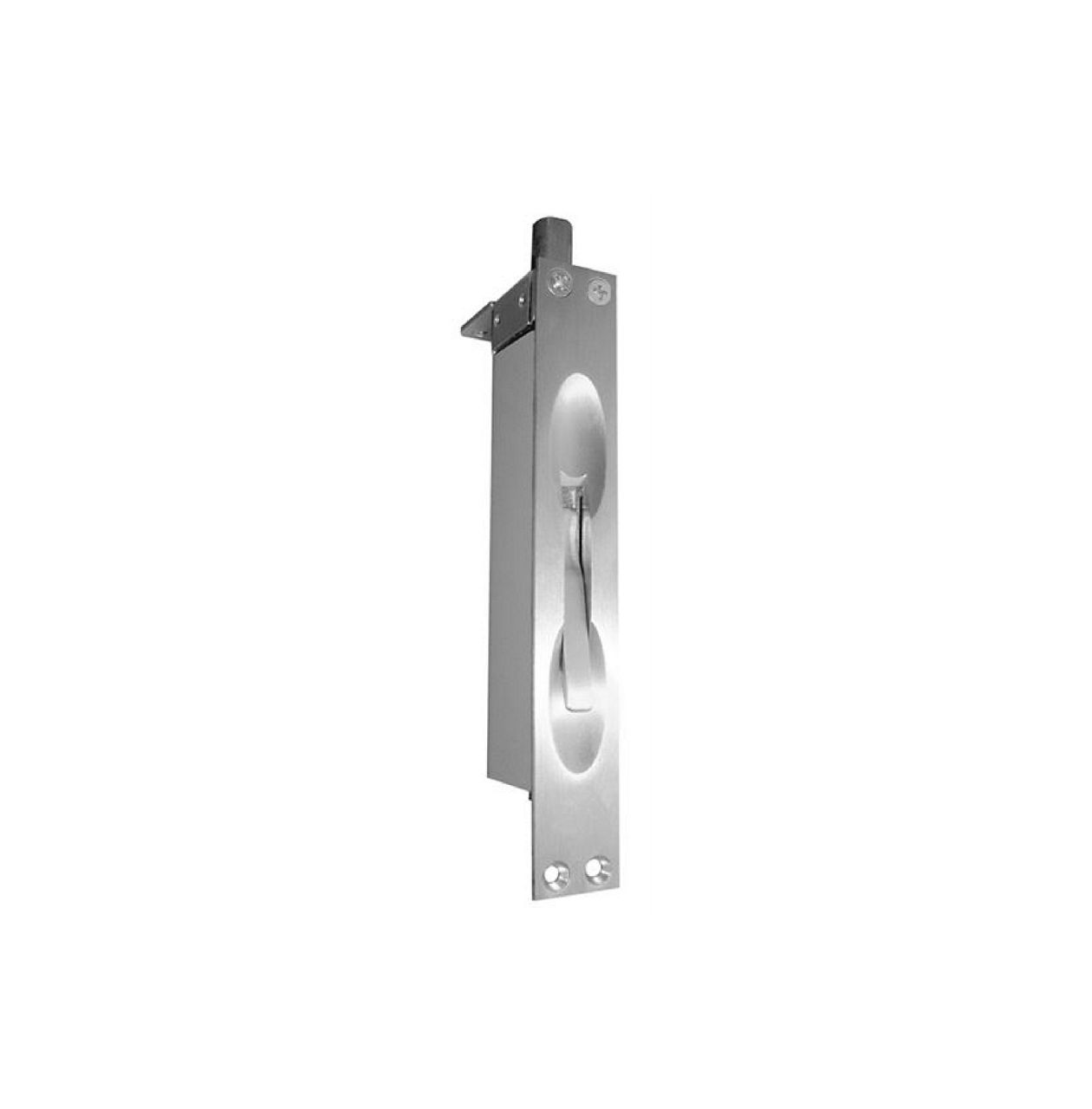

AC 902 Manual flush bolts for wooden doors

Description:

Area of application: For wooden doors – To manually secure the inactive leaf on pairs of doors

Bolt throw: 3/4” (19 mm) Bolt head allows for 1/2” (13 mm) adjustment

Bolt backset: 3/4” (19 mm)

Fire Rating: 1-1/2 h

Standard: Conforms to ANSI/ BHMA A156.16

Material: Brass and steel, Brass and stainless steel
