Panic & Push Bar
Products

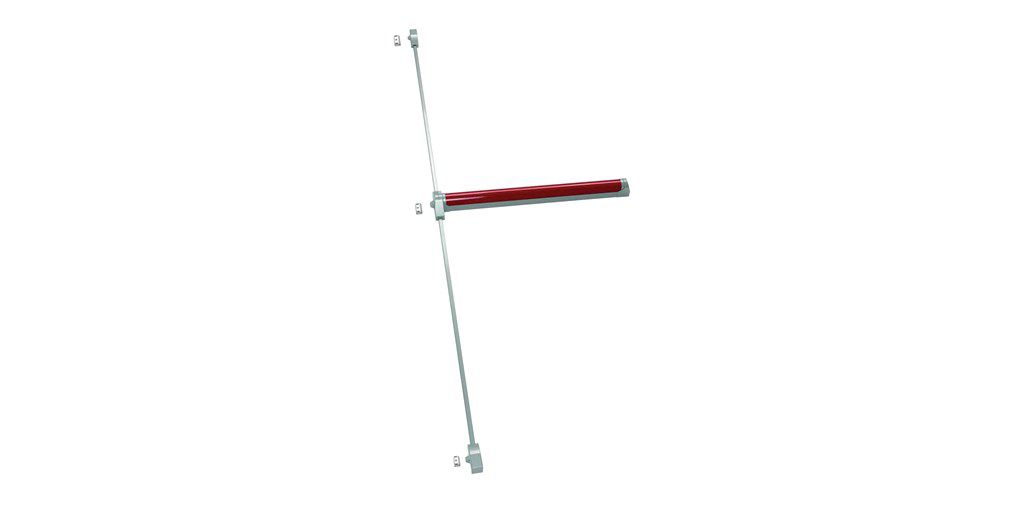

PED300 GL
Description:- Set of PED composed of Modular Push Bar and kit for 2/3 lateral locking points
- Modular push bar type
- For fire and smoke applications
- High durability 2,00,000 cycles
- One central locking point
- For one or double leaf door up to 200 kg
- For all types of door
- For doors up to 1200mm width in standard
- For doors up to 1400mm width in option
- Steel pulman latch in standard
- Dead latch in standard
- Steel or zinc alloy swing latch
- Zinc alloy cover 38mm width
- Aluminium touch bar 1046mm long
- Bar to be cut
- 73mm projection
- HO function in option
- Micro switch version in option
- Set of rods, rod covers and lateral latches
- To fit modular cross bar
- For 2 lateral locking points installation
- For one or double leaf door
- For doors up to 2350mm high in standard
- For doors up to 3200mm high in option
- Steel pulman latches
- Dead latches in standard
PED200
Description:- ASSA ABLOY Panic exit device with central locking point - RIM
- Modular cross bar type
- For fire and smoke applications
- High durability 2,00,000 cycles
- One central locking point
- For one or double leaf door up to 200 kg
- For all types of door
- For doors up to 1200mm width in standard
- For doors up to 1400mm width in option
- Steel pulman latch in standard
- Dead latch in standard
- Zinc alloy or s/steel cover 38mm width
- Steel or s/steel bar 1075mm long
- Bar to be cut
- 97mm projection
- HO function in option
- Micro switch version in option
PED200 GV
Description:
- Set of 2/3 locking points PED composed of Modular Cross Bar and kit for 2 vertical locking points
Characteristics:
- Modular cross bar type
- For fire and smoke applications
- High durability 2,00,000 cycles
- One central locking point
- For one or double leaf door up to 200 kg
- For all types of door
- For doors up to 1200mm width in standard
- For doors up to 1400mm width in option
- Dead latch in standard
- Steel swing latch
- Zinc alloy or s/steel cover 38mm length
- Steel or s/steel bar 1075mm long
- Bar to be cut
- 97mm projection
- HO function in option
- Micro switch version in option
Characteristics of PED/GV:
- Set of rods, rod covers and lateral latches
- To fit modular cross bar
- For 2 lateral locking points installation
- For one or double leaf door
- For doors up to 2350mm high in standard
- For doors up to 3200mm high in option
- Steel pulman latches
- Dead latches in standard
PED200 GL
Description:- Set of PED composed of Modular Cross Bar and kit for 2/3 lateral locking points
- Modular cross bar type
- For fire and smoke applications
- High durability 2,00,000 cycles
- One central locking point
- For one or double leaf door up to 200 kg
- For all types of door
- For doors up to 1200mm width in standard
- For doors up to 1400mm width in option
- Dead latch in standard
- Steel swing latch
- Zinc alloy or s/steel cover 38mm length
- Steel or s/steel bar 1075mm long
- Bar to be cut
- 97mm projection
- HO function in option
- Micro switch version in option
PED300
Description:- Panic exit device with central locking point - RIM
- Modular push bar type
- For fire and smoke applications
- High durability 2,00,000 cycles
- One central locking point
- For one or double leaf door up to 200 kg
- For all types of door
- For doors up to 1200mm width in standard
- For doors up to 1400mm width in option
- Steel pulman latch in standard
- Dead latch in standard
- Steel or zinc alloy swing latch
- Zinc alloy cover 38mm width
- Aluminium touch bar 1046mm long
- Bar to be cut
- 73mm projection
- HO function in option
- Micro switch version in option
PED300 GV
Description:- Set of 2/3 locking points PED composed of Modular Push Bar and kit for 2 vertical locking points
- Modular push bar type
- For fire and smoke applications
- High durability 2,00,000 cycles
- One central locking point
- For one or double leaf door up to 200 kg
- For all types of door
- For doors up to 1200mm width in standard
- For doors up to 1400mm width in option
- Steel pulman latch in standard
- Dead latch in standard
- Steel or zinc alloy swing latch
- Zinc alloy cover 38mm width
- Aluminium touch bar 1046mm long
- Bar to be cut
- 73mm projection
- HO function in option
- Micro switch version in option
- Set of rods, rod covers and vertical latches
- To fit modular cross bar
- For 2 (top & bottom) vertical locking points installation
- For one or double leaf door
- For doors up to 2350mm high in standard
- For doors up to 3200mm high in option
- Steel pulman latches
PED500
DescriptionASSA ABLOY PED500 Panic bar with mortise lock
Characteristics- Cross bar type
- Certified with locks with panic function
- (72 and 92 mm axis)
- For Fire and Smoke applications
- High durability 200,000 cycles
- For one or double leaf door up to 200 kg
- For all types of the door
- For doors up to 1200 mm width in standard
- For doors up to 1400 mm width in option
- Zinc alloy or s/steel cover 38 mm width
- Steel or s/steel bar 1075 mm long
- Bar to be cut
- 97 mm projection
- Micro switch version in option
Covers:
- Black RAL 9005
- Silver RAL 9006
- S/Steel effect
- S/Steel
Bars:
- Red RAL 3000
- Silver RAL 9006
- S/Steel
PED 700
Description:ASSA ABLOY PED700 Push bar with mortise lock
Characteristics:
- Push bar type
- Certified with locks with panic function
- (72 and 92 mm axis)
- For Fire and Smoke applications
- High durability 200,000 cycles
- For one or double leaf door up to 200 kg
- For all types of the door
- For doors up to 1200 mm width in standard
- For doors up to 1400 mm width in option
- Zinc alloy cover 38 mm width
- Aluminium touch bar 1046 mm long
- Bar to be cut
- 73 mm projection
- Micro switch version in option
Finishes
Covers:
- Black RAL 9005
- Silver RAL 9006
- S/Steel effect
Bars:
- Red RAL 3000
- Silver RAL 9006
- S/Steel effect
Eurosmart
Eurosmart mortise panic exit device suitable for double leaf fire rated doors
Features:
- Reversible
- For single and double leaf doors
- Suitable for fire rated doors
- Double distance 72-92 mm
- Steel mechanisms
- Levers in steel plastic coated
- Oval bars available in different materials and finishes
- Can be combined with the external handleson plate series PAM21
- CE certified (EN1125)
Versions:
- With ABS covers ( Nero/Black and Inox/SS)
- With stainless steel material covers (Inox/SS)
9 / 9
