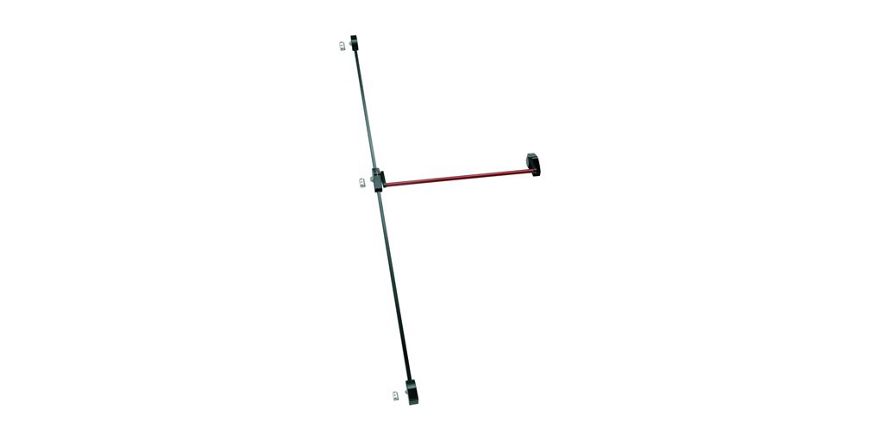

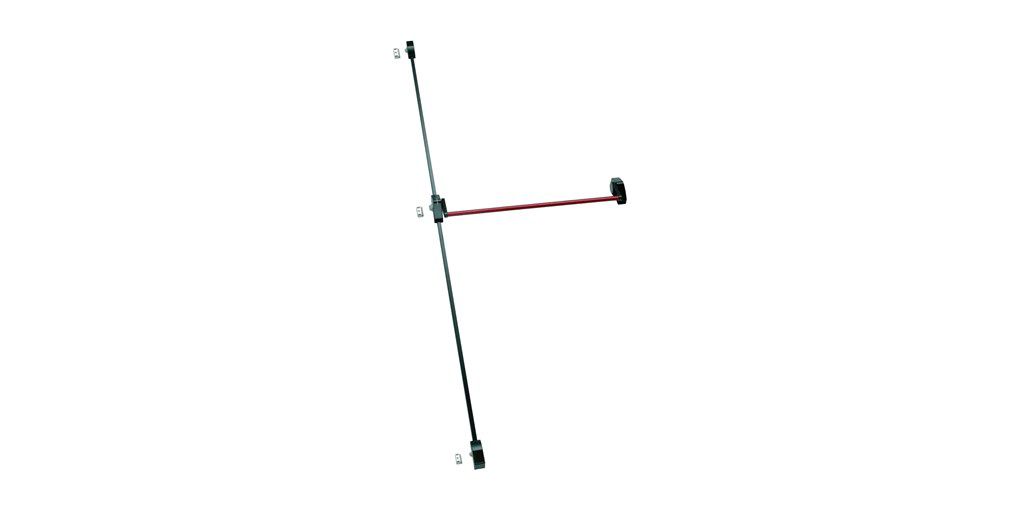

PED200 GL
Description:
- Set of PED composed of Modular Cross Bar and kit for 2/3 lateral locking points
Characteristics:
- Modular cross bar type
- For fire and smoke applications
- High durability 2,00,000 cycles
- One central locking point
- For one or double leaf door up to 200 kg
- For all types of door
- For doors up to 1200mm width in standard
- For doors up to 1400mm width in option
- Dead latch in standard
- Steel swing latch
- Zinc alloy or s/steel cover 38mm length
- Steel or s/steel bar 1075mm long
- Bar to be cut
- 97mm projection
- HO function in option
- Micro switch version in option
