Shearmagnets 1500 kg

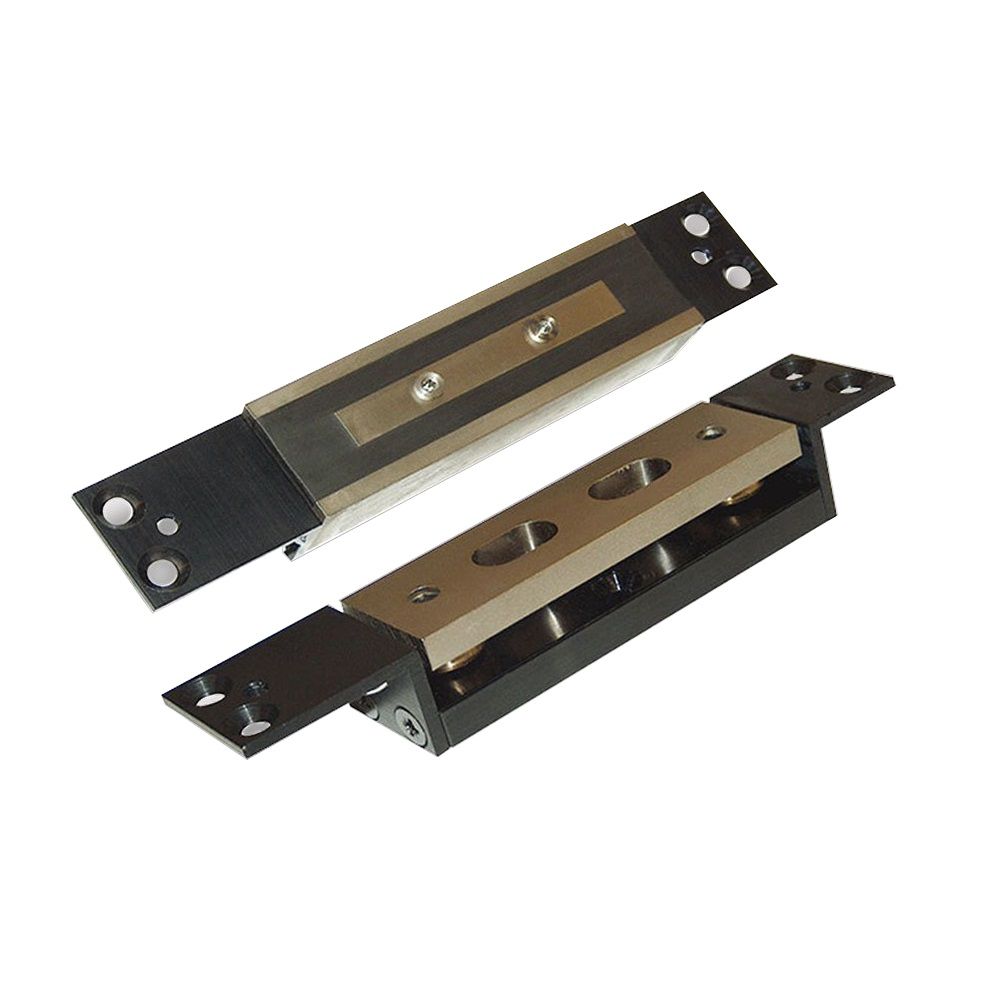

ASSA ABLOY 1354 is a mini Electro-Shearmagnet to facilitate remote access where minimal intrusion into the environment is required.

The product caters for single action internal doors or external doors where a form of cover is situated above the doorway to prevent direct rain penetration.

• 1354-0100 Mortice mounted mini shearlock 12-24V DC width 30 mm
• 1354-0102 Mortice mini shearmagnet 12/24V DC surface armature
• 1354-0201 Surface mounted mini shearlock 12-24V DC brushed silver anod

• Compact slim line size 30mm
• Nominal 1500kg shear holding force
• Adjustable locking time 1-­30 secs
• Suitable for door gaps up to 8mm
• Supplied with 3m cable
• Non­handed
• CE Marked to EMC Directive
• Mortice or surface versions
• Can be fitted into the head or vertical locking stile
• Suitable for aluminium, timber, steel and glass doors
• Suitable for use on aluminium, timber and steel doors
