1354

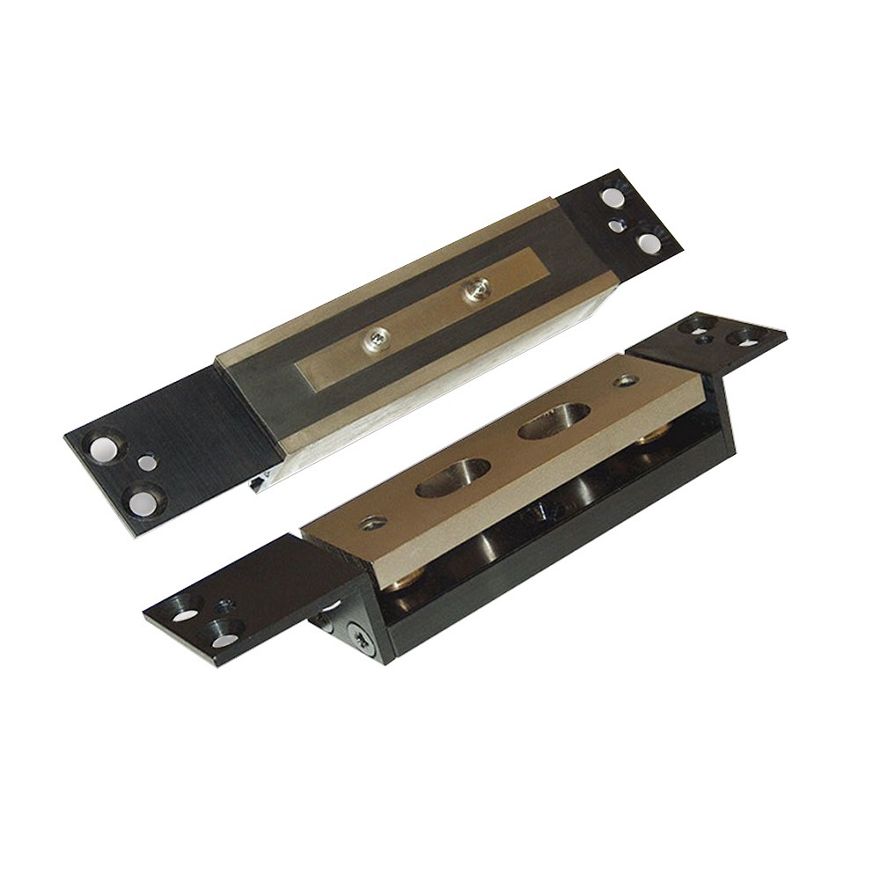

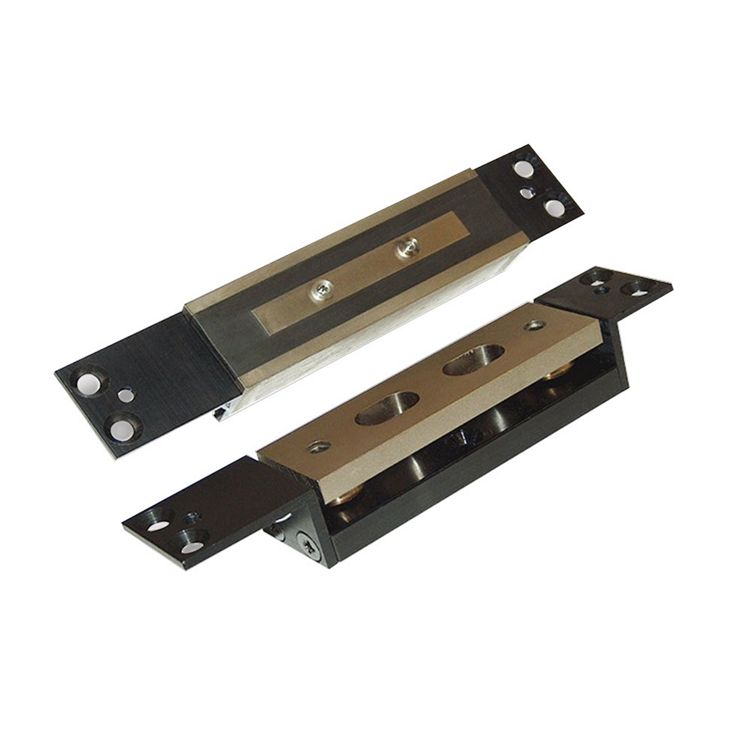

ASSA ABLOY 1354 is a mini Electro-Shearmagnet to facilitate remote access where minimal intrusion into the environment is required.

The product caters for single action internal doors or external doors where a form of cover is situated above the doorway to prevent direct rain penetration.



  • 1354-0100 Mortice mounted mini shearlock 12-24V DC width 30 mm
  • 1354-0102 Mortice mini shearmagnet 12/24V DC surface armature
  • 1354-0201 Surface mounted mini shearlock 12-24V DC brushed silver anod

Features

  • Compact slim line size 30mm
  • Nominal 1500kg shear holding force
  • Adjustable locking time 1-­30 secs
  • Suitable for door gaps up to 8mm
  • Supplied with 3m cable
  • Non­handed
  • CE Marked to EMC Directive
  • Mortice or surface versions
  • Can be fitted into the head or vertical locking stile
  • Suitable for aluminium, timber, steel and glass doors
  • Suitable for use on aluminium, timber and steel doors
