PED500

Description

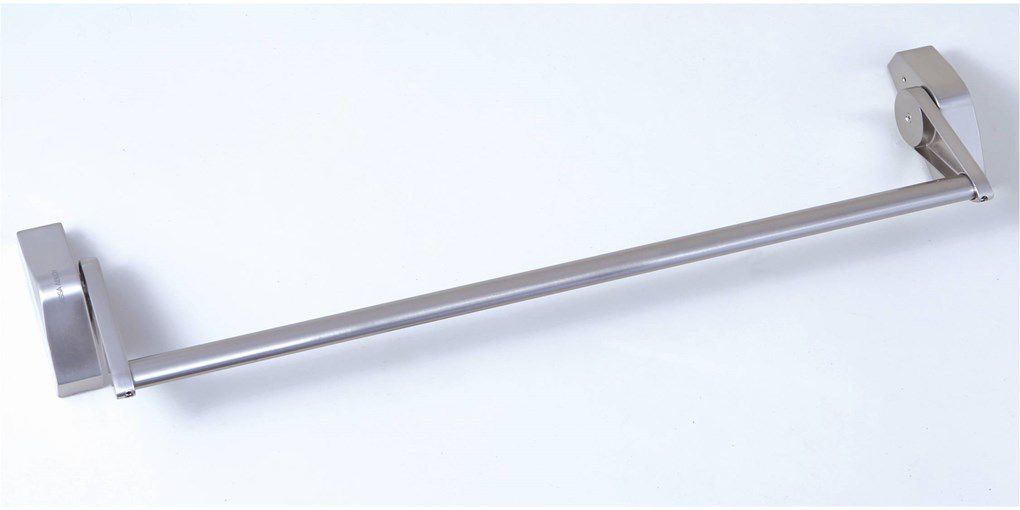

ASSA ABLOY PED500 Panic bar with mortise lock

Characteristics

• Cross bar type
• Certified with locks with panic function
• (72 and 92 mm axis)
• For Fire and Smoke applications
• High durability 200,000 cycles
• For one or double leaf door up to 200 kg
• For all types of the door
• For doors up to 1200 mm width in standard
• For doors up to 1400 mm width in option
• Zinc alloy or s/steel cover 38 mm width
• Steel or s/steel bar 1075 mm long
• Bar to be cut
• 97 mm projection
• Micro switch version in option

Finishes

Covers:

• Black RAL 9005
• Silver RAL 9006
• S/Steel effect
• S/Steel

Bars:

• Red RAL 3000
• Silver RAL 9006
• S/Steel
