SMARTair® Software & License

Function

SMARTair Software (also called TS1000) enables users to manage the SMARTair system according to the license issued and the associated Authorization Key.

The SMARTair Software license includes:

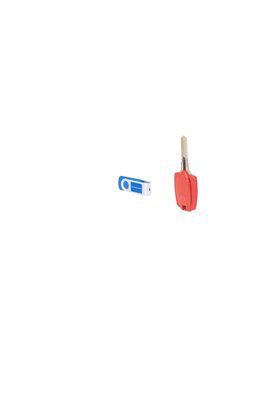

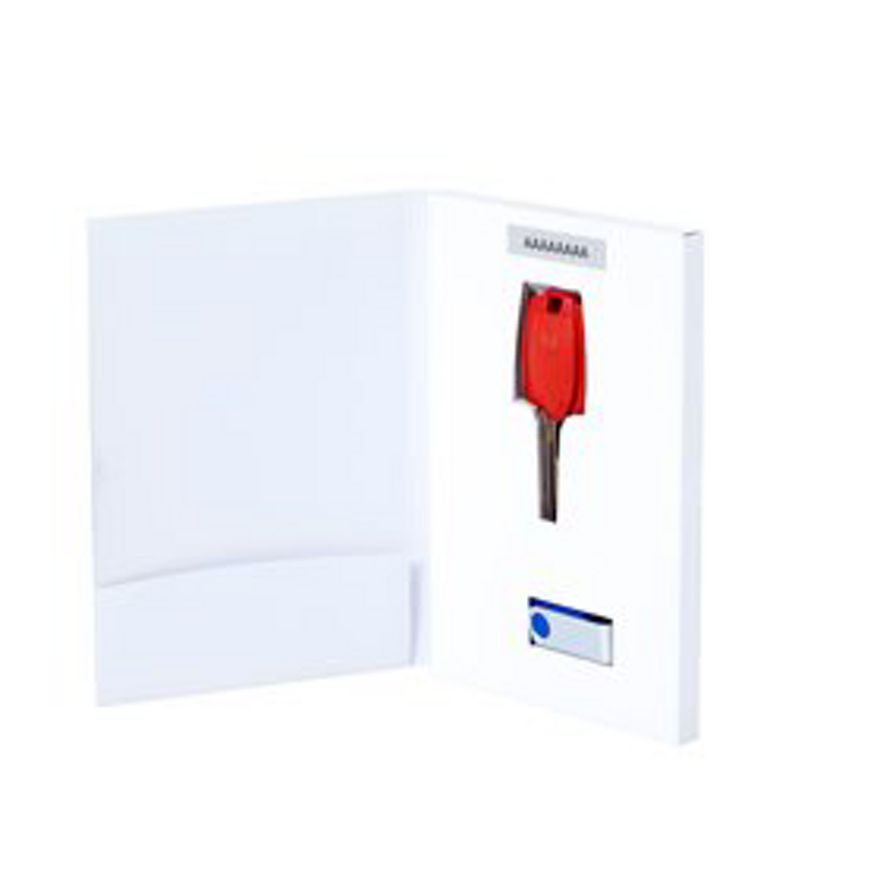

• A USB memory device that contains: SMARTair Software installation file; Site data (the license); Technical manuals
• Authorization key programmed with the system's code
• The easy-to-use SMARTair Software manages all types of SMARTair products − escutcheons, wall readers, cabinet lock, knob cylinders and others − simultaneously.

Software Requirements:

• PC with Pentium 4 processor or higher
• 1 GB of free RAM
• 1 GB or free disk space
• 32-bit or 64-bit Microsoft Windows Operating System supporting services (Windows 95, Windows 98 and Windows ME are not supported)

Site Data:

The 'site data' is supplied with the software and includes the license for the system and a unique 8-figure alphanumeric system code.

All information regarding the system (user list, door list, authorization matrix, time profiles, etc.) is kept in the site data file.

Authorization Key:

• The Authorization Key enhances security for the SMARTair system
• Each Authorization Key contains the system's unique corresponding system code
• In order for the Portable Programmer to function, the Authorization Key must be inserted. Without it, the Portable Programmer will not update the door or retrieve audit trails.

Types of Licenses:

For the different products (upgrades available): Update-On-Card (UOC); Wireless.

According to the number of doors in the system (upgrade available): Up to 10 doors; Up to 30 doors; Up to 75 doors; More then 75 doors.
