SMARTair® Cabinet Lock - OBSOLETE

*PRODUCT OBSOLETE*

Function

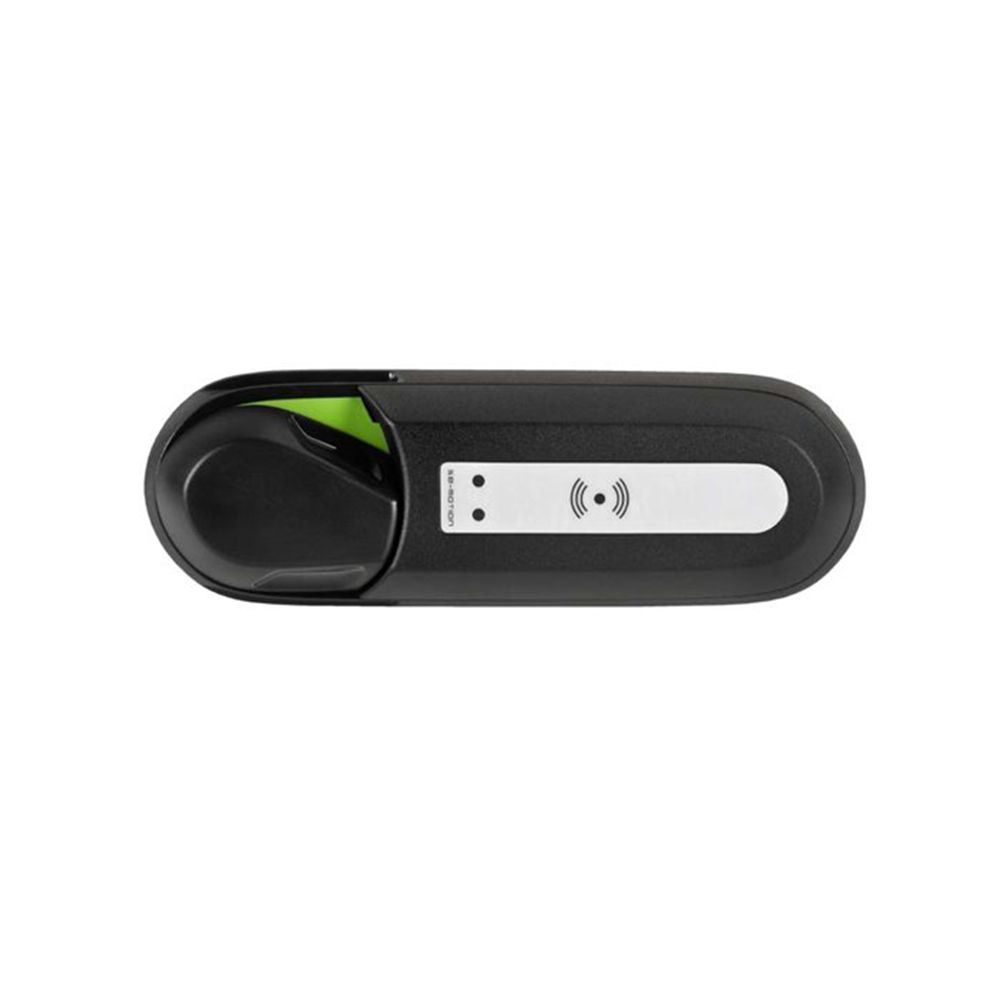

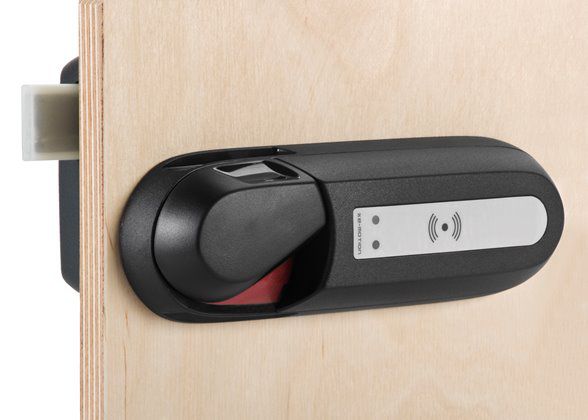

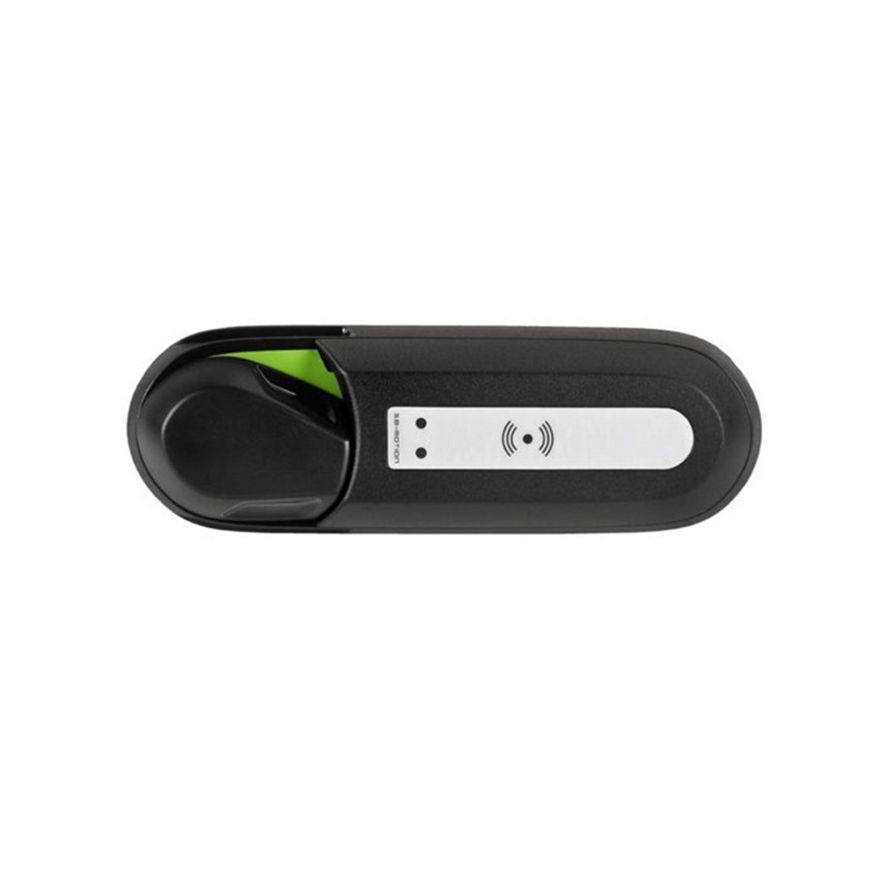

SMARTair Cabinet Lock is an electronic lock for lockers which may be integrated into the SMARTair system.

Features

• Simple operation
• System management through easy-to-use software

2 operation modes

High traffic:

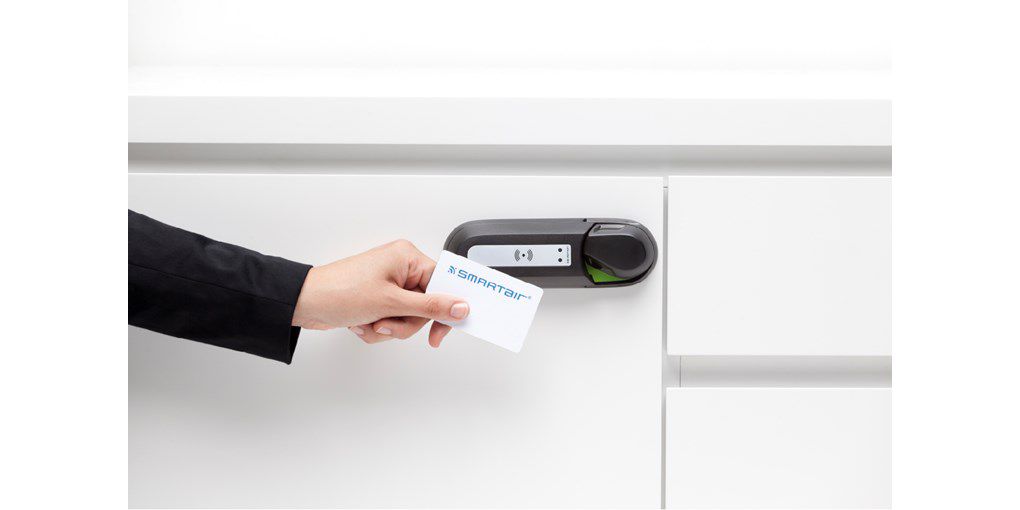

All lockers are available to all users. Any user can select a free locker and lock it by presenting his/her card.

While the locker is locked, other users cannot open it, and the user cannot lock another locker.

Once the user has opened the locker, it is available to other users again.

User assigned:

Through the E-Motion or SMARTair software, a specific locker can be assigned to one or more users.

This mode of operation supports various access control features: authorizations, time schedules, daylight savings time and holidays, cancellation and replacement of lost tags, audit trail, temporary blockage, etc.

Electronic Features

Reader Module:

• 13.56 MHz, MIFARE^® RFID technology
• ISO 14443A
• Reading range: 10mm with standard credentials
• LED indications (access authorized, access denied, low battery, etc.)

Control Unit:

• Non-volatile memory
• Up to 1500 users
• Up to 1000 events recorded in audit trail
• Real-time clock and calendar

Battery Module:

• Type: 3 x LR03 AAA 1.5V alkaline batteries
• Estimated duration: 20,000 operations or 3 years
• Changing the batteries is easy and simple; no need to disassemble the lock

Specifications:

• Temperature range (external side): from -20°C to 70°C
• 85% humidity without condensation
• IP55

Dimensions:

• Door width (3 models): 2-12mm; 12-15mm; 15-25mm
• 'Long' or 'Short' footprint
