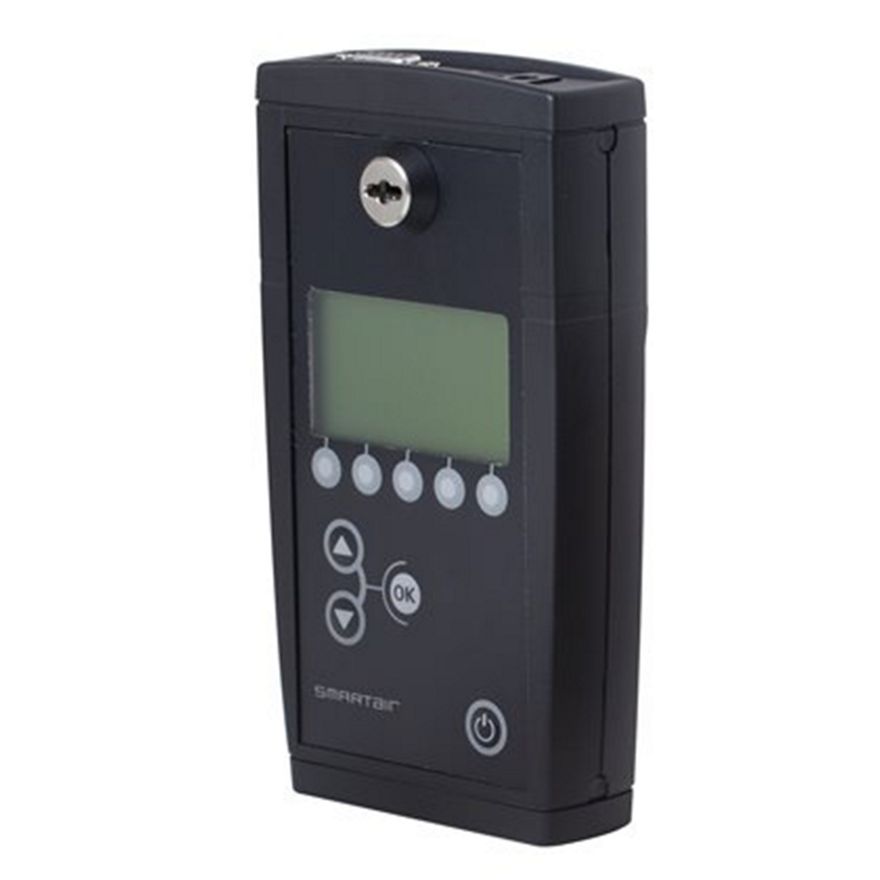

SMARTair® Portable Programmer

Function

The SMARTair Portable Programmer serves as an interface between the SMARTair software and the SMARTair escutcheons, wall readers, cabinet locks and knob cylinders.

The Portable Programmer enables the following:

• Initiate/update SMARTair escutcheons, wall readers, cabinet locks and knob cylinders
• Emergency opening of a door
• Testing of SMARTair escutcheons, wall readers and knob cylinders
• Retrieval of event logs from SMARTair escutcheons, wall readers and knob cylinders

Specifications:

• Membrane keyboard
• Power supply: 9V 6LR61 alkaline battery or 9V power supply adaptor; Auto switch-off after 30 seconds; Low-battery indication
• Connection to the PC − USB cable supplied with the portable programmer
• Includes a dedicated cable to connect with the escutcheons and wall readers
• 0.5 MB memory
