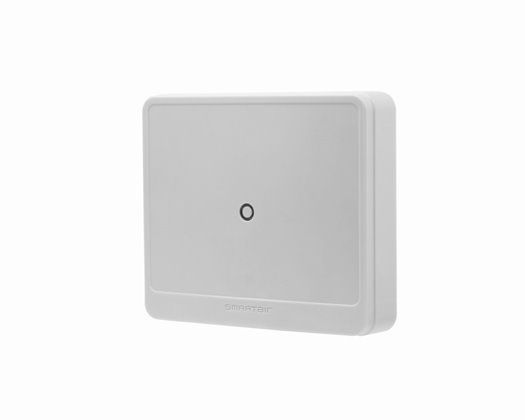

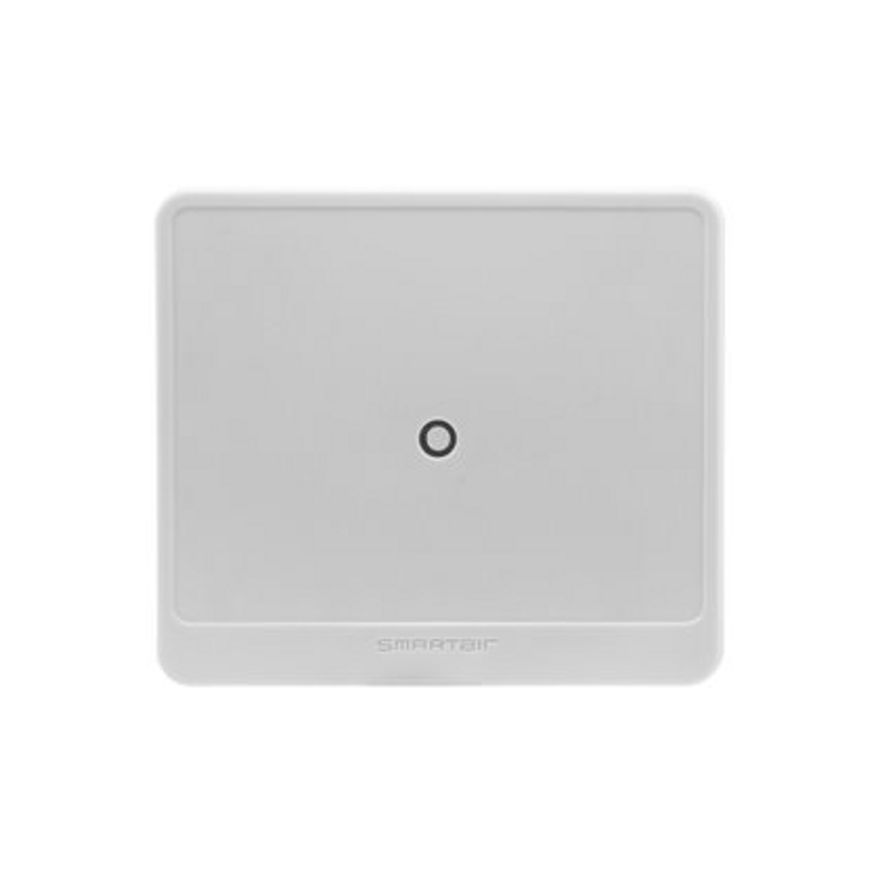

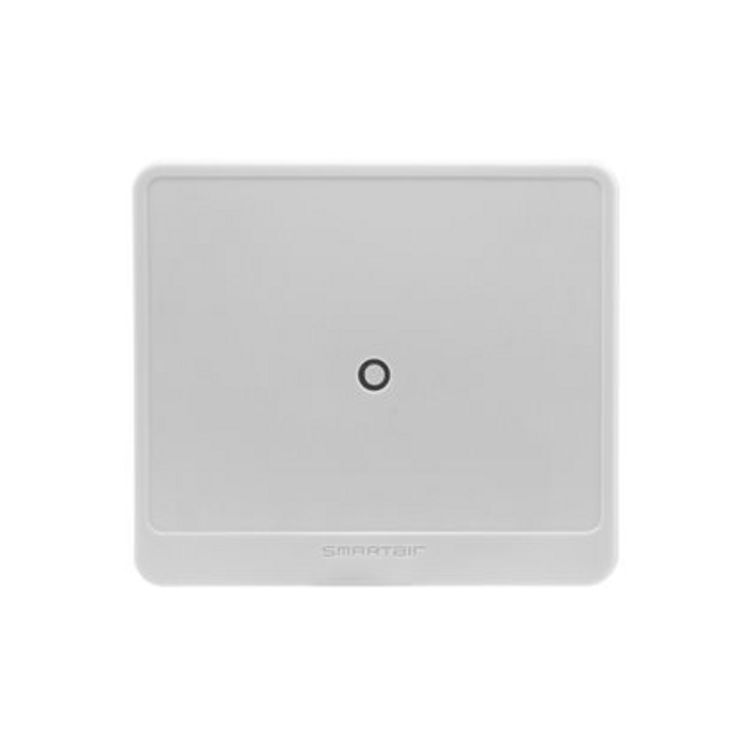

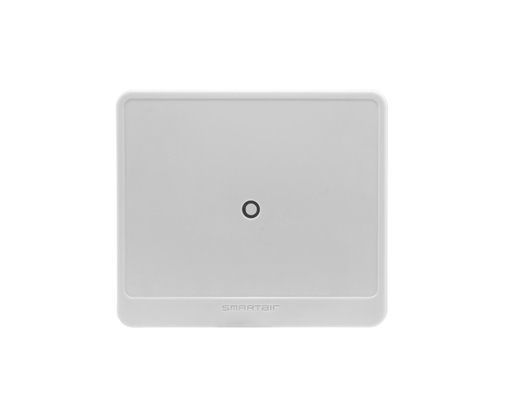

SMARTair® Wireless HUB
Function
The SMARTair Wireless HUB is the link between SMARTair Software (TS1000) and the RF module in the SMARTair Wireless escutcheons, wall readers and knob cylinders.
Applications
The SMARTair Wireless HUB receives information about changes and updates from the SMARTair software and transmits it to the SMARTair Wireless escutcheons, wall readers and knob cylinders.
Audit trail details are sent in the reverse direction, from the SMARTair escutcheons, wall reader and knob cylinders to the software.
Features
Up to 100 HUBs in one system
Up to 30 escutcheons/wall readers can communicate with one hub
Specifications
RF Module frequency: 915 MHz
TCP/IP connection to the PC network. Default details: IP address - 192.168.1.10; Subnet mask - 255.255.255.0; Gateway - 192.168.1.0
Operating temperature: from 0°C to 60°C
Humidity: 10%-90%, no condensing
Power: 12 VDC or 230/110 VAC
