Function
ANSI Function No.
Model No.
Exit Device Type
Description
Exit
01
AA21V-01
Surface Vertical Type
Exit only
No outside operation
Classroom
08

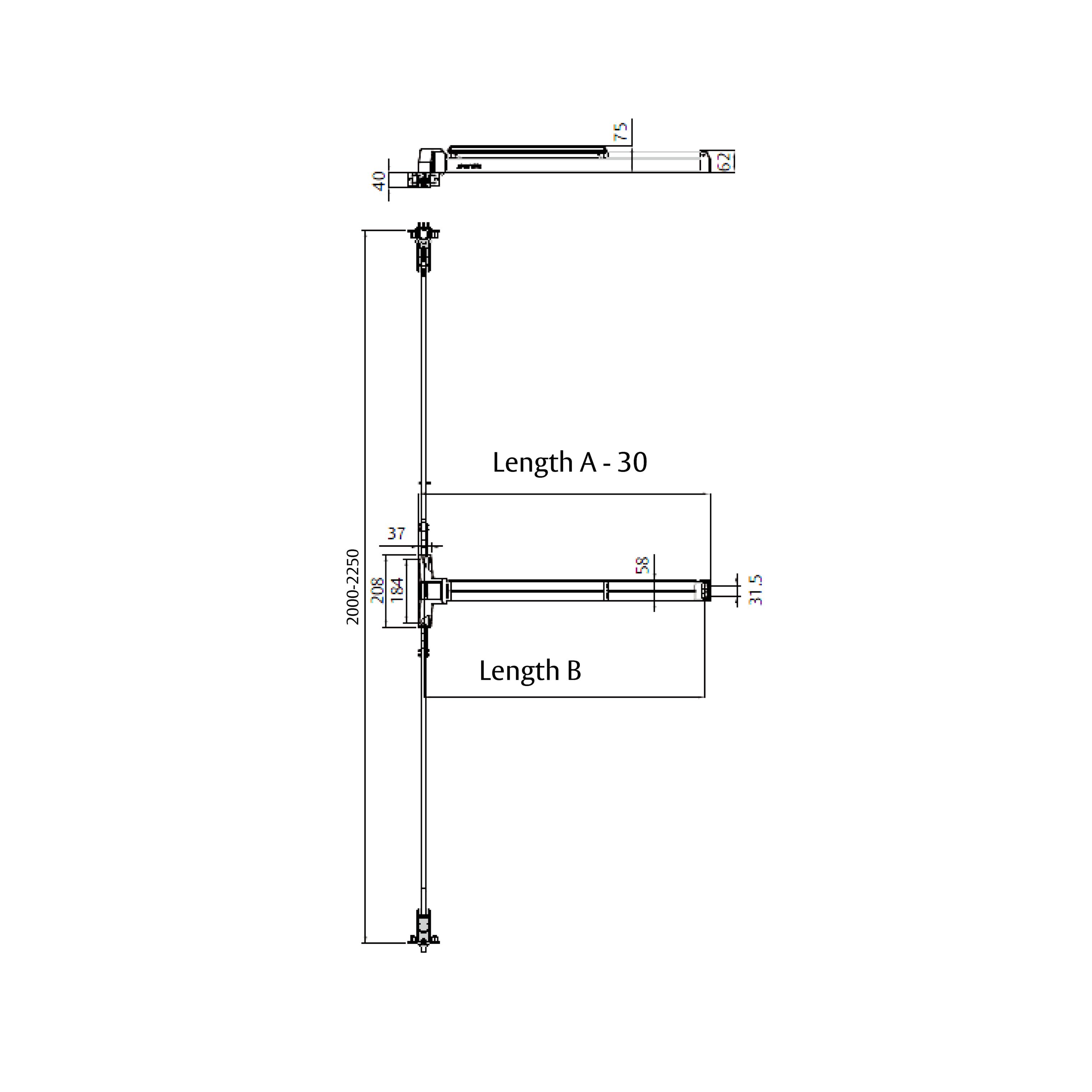

AA21CV-08
Surface Vertical Type
Outside lever retracts latch bolt
Key locks and unlocks lever
Passage
14
AA21V-14
Surface Vertical Type
Entrance by Trim
Exit by pushing bar Inside
Remarks:
Electric trims are option for mechanical panic exit device
Supply cylinder is for door thickness 40-54mm
Technical details:
Door Suitability
For emergency passage doors and anti-fire doors
Suitable for single and double doors up to 1220mm wide and 2100mm in height (available up to 3000mm upon request)
Material
Horizontal push bar made of 304 stainless steel
Latchbolt made of sintering stainless and auxiliary bolt made of die-cast stainless steel
Lever and trim made of 304 stainless steel
Strike plate made of die-casting carbon steel with roller to reduce the friction of opening and closing Latchbolt
Made of sintering stainless steel
Finish
630 Satin Stainless Steel Types

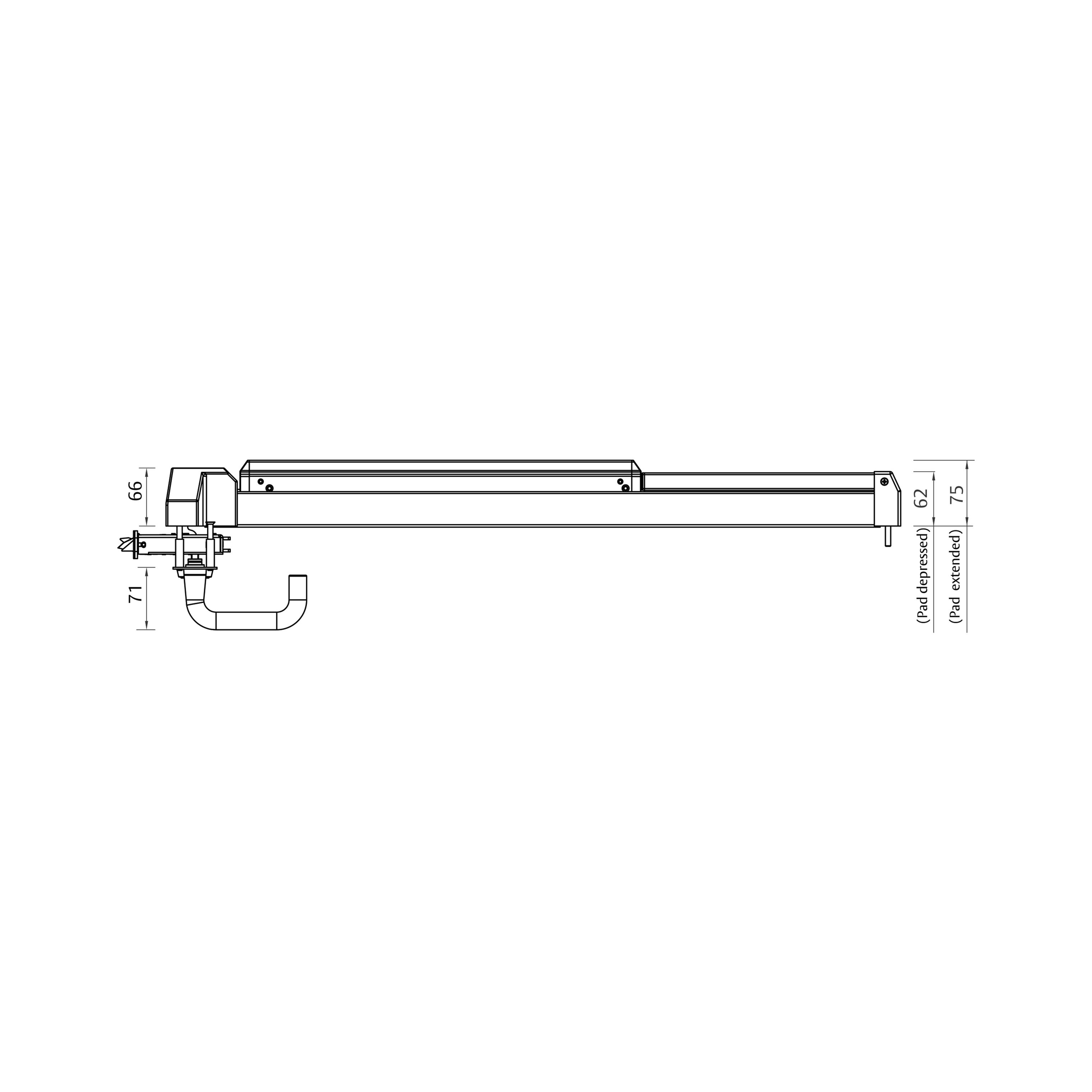

AA21R- Rim

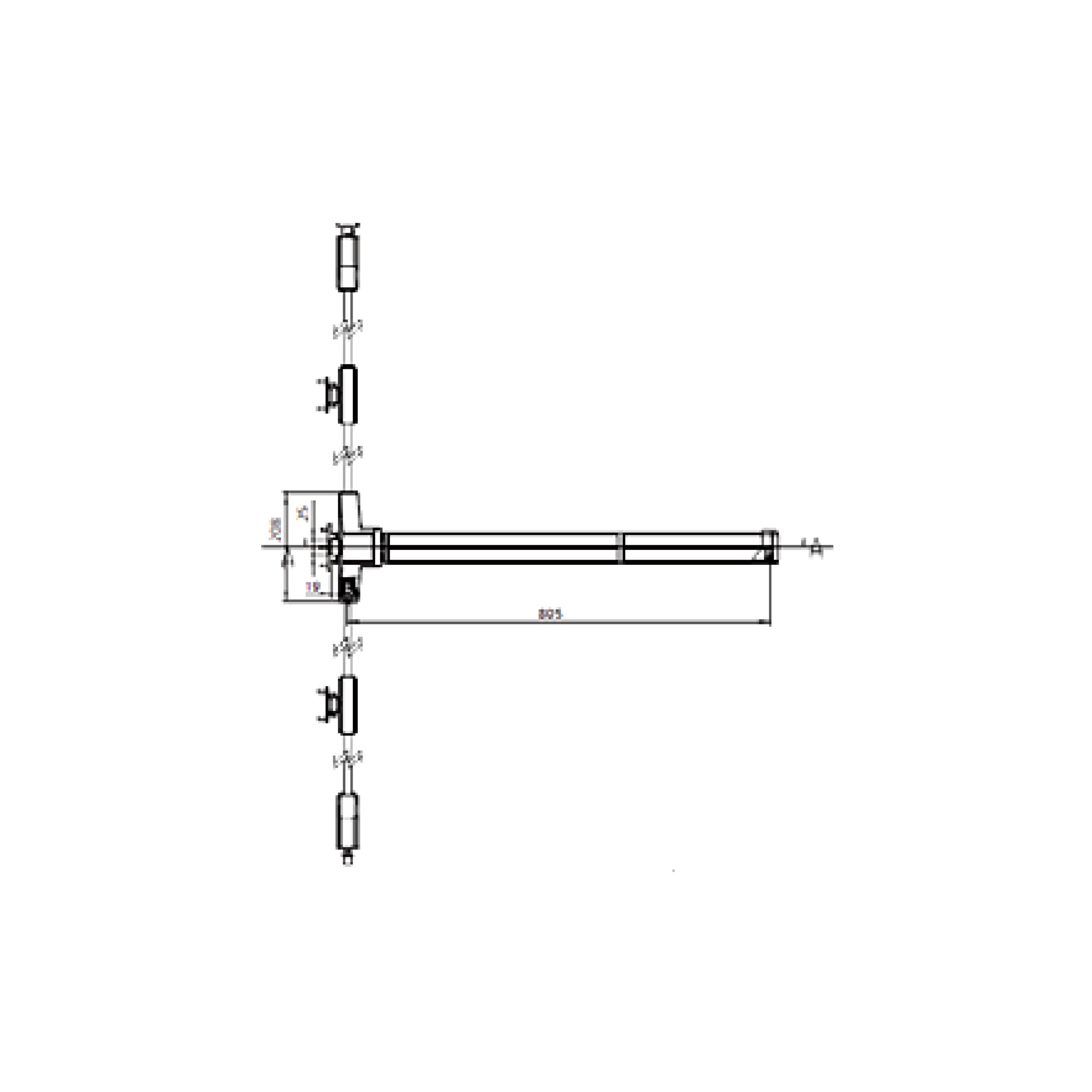

AA21V- Vertical

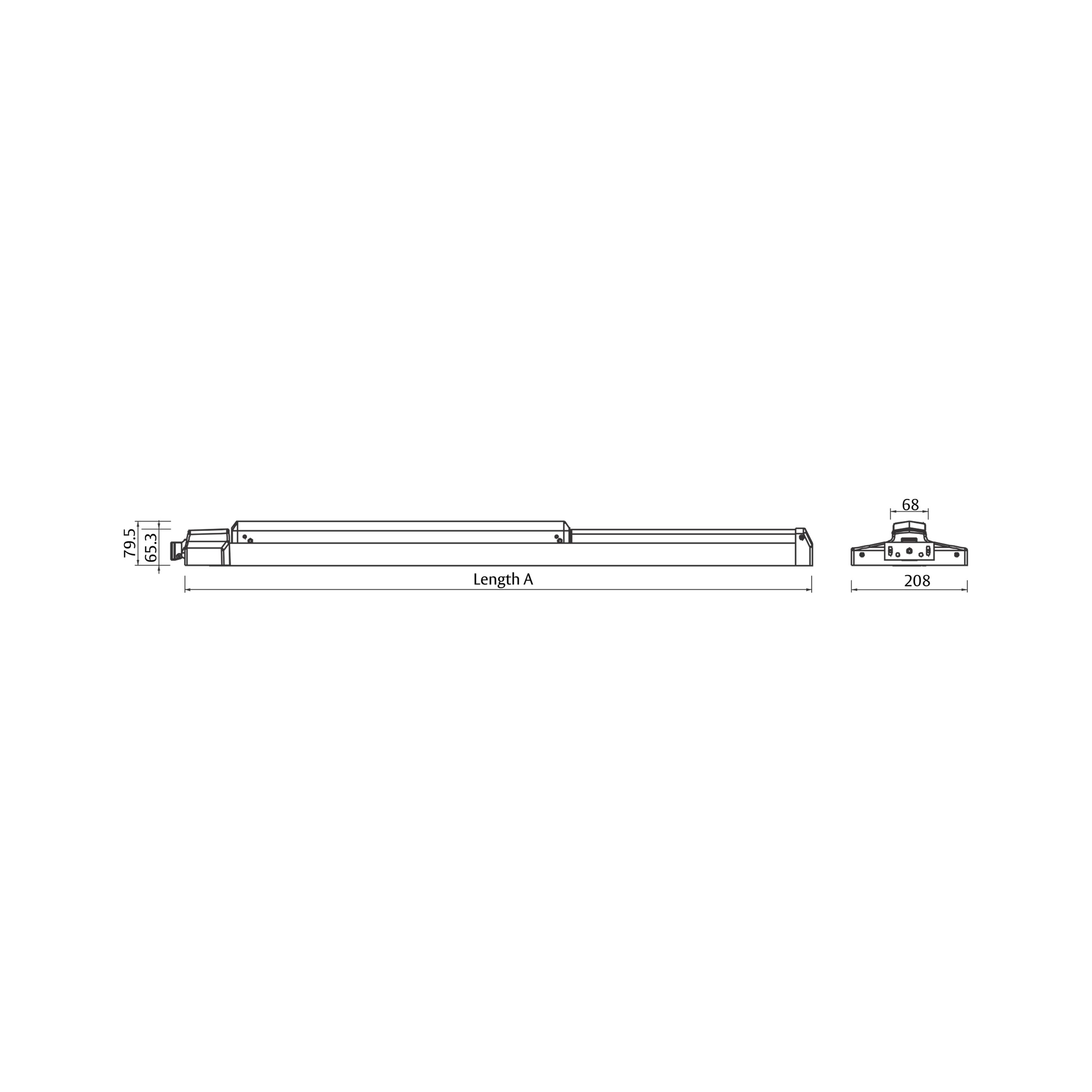

AA21M-Mortise
Electric Function (For AA21M)
Fail Safe (FSA)
Fail Secure (FSE)
480mA@12VDC (Standard)
240mA@24VDC
Electric Function (For Electric Trim ELEC)
Fail Safe (FSA)
Fail Secure (FSE)
1200mA@12VDC (Standard)
600mA@24VDC
Option
REX (Request to Exit)-An SPDT switch that monitors activation of the free lever (not available with knob trim). REX is available for all mechanical and electrified functions and can be supplied alone or with either LBM or DBM.
LBM (Latchbolt Monitor)-An SPDT switch that monitors full retraction of the main latch. LBM is available for all mechanical and electrified functions and can be supplied alone or with REX.
DBM (Deadbolt Monitor)-An SPDT switch that monitors full retraction of the deadbolt. DBM is available for all mechanical and electrified funtions with a deadbolt and can be supplied alone or with REX.
