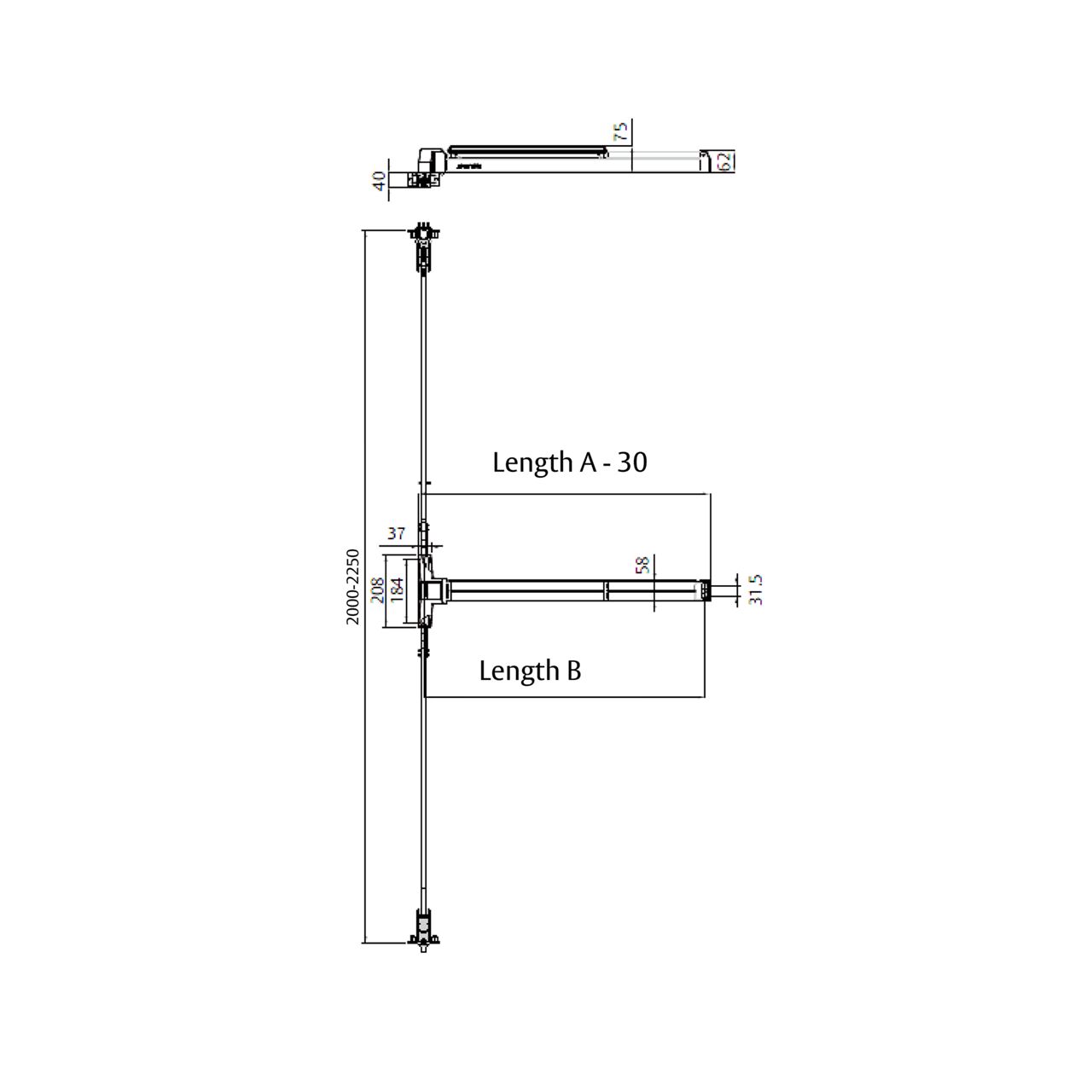

AA21CV

Technical details:

Door Suitability

• For emergency passage doors and anti-fire doors
• Suitable for single and double doors up to 1220mm wide and 2100mm in height (available up to 3000mm upon request)

Material

• Horizontal push bar made of 304 stainless steel
• Latchbolt made of sintering stainless and auxiliary bolt made of die-cast stainless steel
• Lever and trim made of 304 stainless steel
• Strike plate made of die-casting carbon steel with roller to reduce the friction of opening and closing Latchbolt
• Made of sintering stainless steel

Finish

• 630 Satin Stainless Steel Types
• AA21R- Rim
• AA21V- Vertical
• AA21M-Mortise

Electric Function (For AA21M)

• Fail Safe (FSA)
• Fail Secure (FSE)
• 480mA@12VDC (Standard)
• 240mA@24VDC

Electric Function (For Electric Trim ELEC)

• Fail Safe (FSA)
• Fail Secure (FSE)
• 1200mA@12VDC (Standard)
• 600mA@24VDC

Option

• REX (Request to Exit)-An SPDT switch that monitors activation of the free lever (not available with knob trim). REX is available for all mechanical and electrified functions and can be supplied alone or with either LBM or DBM.
• LBM (Latchbolt Monitor)-An SPDT switch that monitors full retraction of the main latch. LBM is available for all mechanical and electrified functions and can be supplied alone or with REX.
• DBM (Deadbolt Monitor)-An SPDT switch that monitors full retraction of the deadbolt. DBM is available for all mechanical and electrified funtions with a deadbolt and can be supplied alone or with REX.
