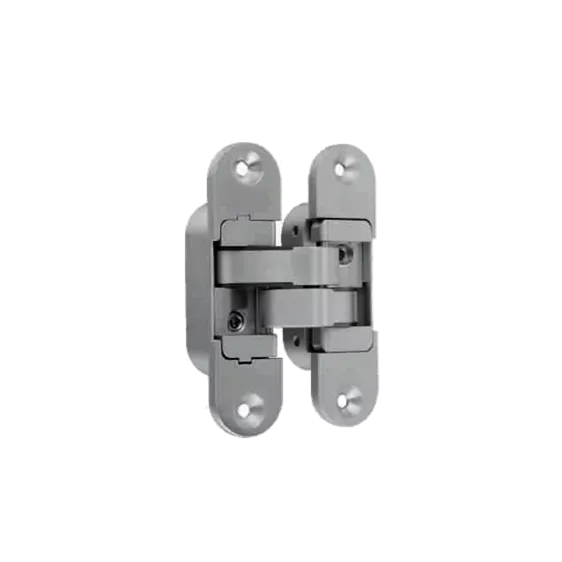

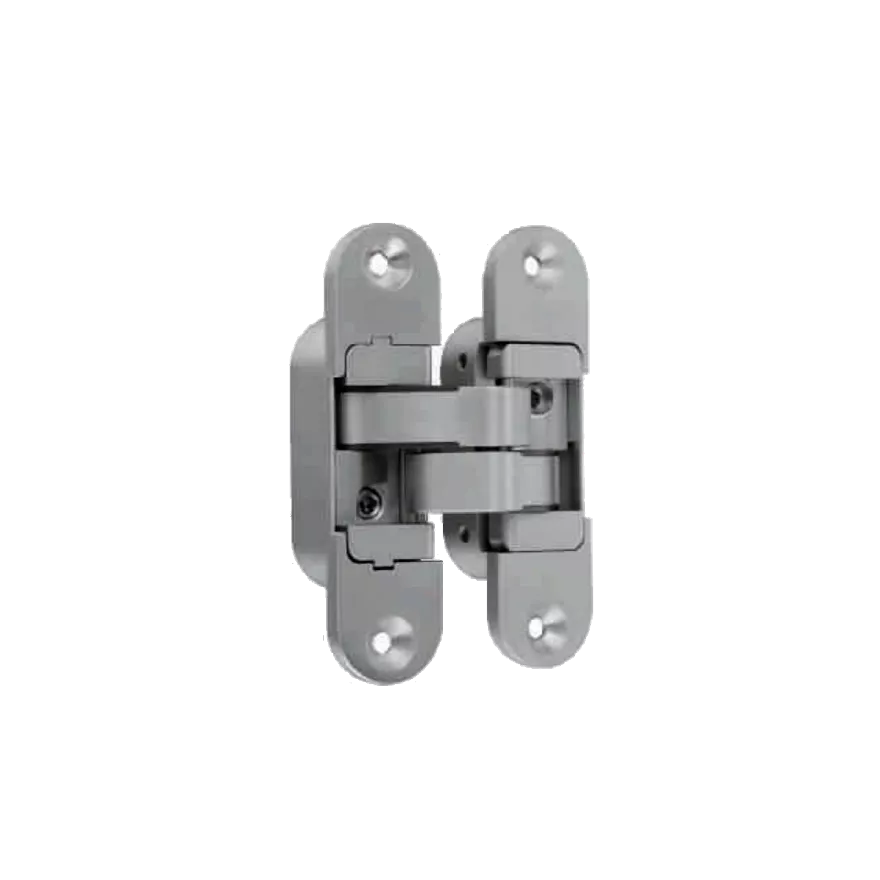

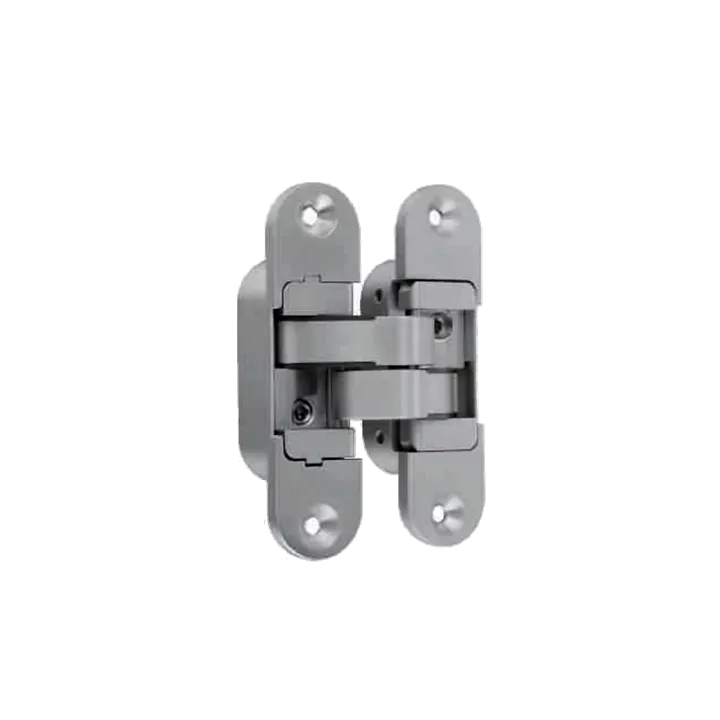

AA-3CH-01, AA-3CH-02
3D adjustable concealed hinge
Application: For wooden frames, for flush wooden interior doors
Door thickness: ≥35mm; Opening angle: <180˚
Door weight: AA-3CH-01-40 kg , AA-3CH-02-60 kg
Adjustment feature: Continuously 3D Adjustable - height, side and closing pressure ±1mm
Show more
AA-3CH-01, AA-3CH-02
1
of
8
Specifications
3D Adjustable Concealed Hinge Fitting Instructions (for wooden door)
Model No.:
AA-3CH-01
For non-rebated interior doors
Door Weight ≤40 kg / 2pc
Door Width ≤ 900mm
Door Thickness ≥ 35mm
3D Adjustable Concealed Hinge Fitting Instructions (for wooden door)
Model No.:
AA-3CH-02
For non-rebated interior doors
Door weight ≤60 kg / 2pc
Door width ≤ 900mm
Door thickness ≥ 35mm
Downloads
ASSA ABLOY Technical Spec Book for Hinges
(PDF, 4 MB)
