Digital door locks

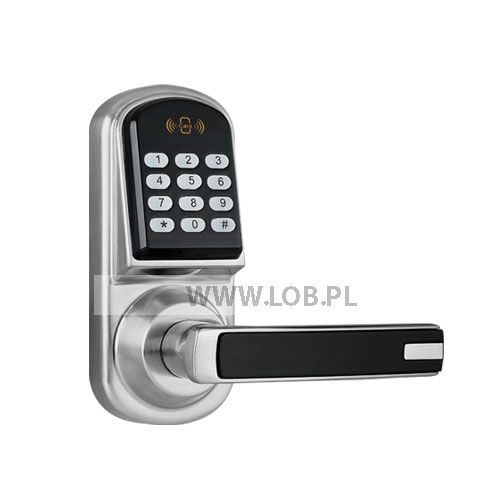

The LOB C003 electronic escutcheon allows the user to control door access using a PIN code or a proximity card. It replaces a door handle and cooperates with LOB mechanical locks and with most other mechanical door locks.

LOB C003 is ideal for passages with low or medium traffic intensity, where access control of entering persons is required. Those passages may include doors such as a door to an office room door or to a rented apartment. The advantages of the LOB C003 lock include easy installation and a wide range of access control settings.

Main features and characteristics:

• Opened with a PIN code or proximity card, or with a PIN code & proximity card combination.
• Opened with a single-use code
• Permanently open in specified hours (weekly calendar)
• Unrestricted passage in specified hours (conference mode)
• Blocking code for all users
• Access restricted for a time period defined individually for each user (from date to date, to the nearest minute)
• Illuminated keyboard
• Easy installation
• Hermetic housing resistant to water splash and dust
• Battery powered (4 LR6 "AA" batteries)

Finish

Stainless steel, plastic

Dimensions of escutcheon

157 x 69.5 mm (L x W), excl. handle

Door thickness

35 mm .. 50 mm

Spindle

7 mm

Working temperature

-20 .. +55 °C

Relative humidity

15% .. 93%

Mechanical life

> 100 000 cycles

Power source

6 V, 4 LR6 "AA" batteries

Battery life

> 10 000 cycles

Low voltage indication

4.8 V (±0.2 V)

Power consumption

< 20 µA in standby mode

RFID standard

ISO/IEC 14443

Range of proximity card

up to 2 cm

Entry time

appr. 6 seconds

Ordering indexes:

EZC3M-18L

LOB C003 RF independent escutcheon+keyb., silver, left

EZC3M-18P

LOB C003 RF independent escutcheon+keyb., silver, right

HI80MK-1

Proximity card for independent locks LOB C003 and RF, LOB logo

HI80MK-0

Proximity card for independent locks LOB C003 and RF, white

EI80MB

Proximity keyring for independent locks LOB C003 and RF

EXZC3

Latch lock, 7 mm spindle, 60-70mm backset to LOB C003 lock

EAT78-C3

Spindle with 7/8 adapter for LOB RF/C003

The LOB 5500MK electronic escutcheon allows the user to control door access using a PIN code or a proximity card. The escutcheon is suitable for installation on doors. It can be also mounted on existing doors.
LOB 5500MK is ideal for passages with medium or high traffic intensity, where access control of entering persons is required. Those passages may include doors to a corridor, office, pavilion, room or a rented apartment. The escutcheon is easy to install and robust.

Main features and characteristics:

• Opened with a PIN code or proximity card
• Unrestricted access (conference mode)
• Robust and long-lasting structure
• Easy installation
• Battery powered (4 LR6 "AA" batteries)
• Emergency power - contacts to an external 9V battery
• Emergency opening - mechanical key

Available finish

silver satin

PIN code memory capacity

31

RFID card memory capacity

62

Dimensions excl. handle

55.5 x 300 x 33 mm (W x H x D),

Door thickness

35 – 75 mm; (standard version: 40-45 mm)

Spindle

7.5 mm

Working temperature

-15 – +50 °C

Relative humidity

45% – 85%

Power source

6 V (4 LR6 "AA" batteries)

Low battery voltage indication

< 4.5 V, special sound signal

Power consumption in standby mode

< 100 µA

Battery life

appr. 10 000 openings

Type of proximity card

factory DES coded

Ordering indexes:

EZ55MK-18

LOB 5500MK electronic escutcheon, silver satin

HI50MK-0

Proximity card for LOB 5500MK escutcheon, white

EI50MB-4

Proximity keyring for LOB 5500MK escutcheon, blue

Delivery:

• External escutcheon
• Internal escutcheon
• 40 mm half cylinder insert with two keys
• Set of mounting bolts
• Spindle
• Mounting template
