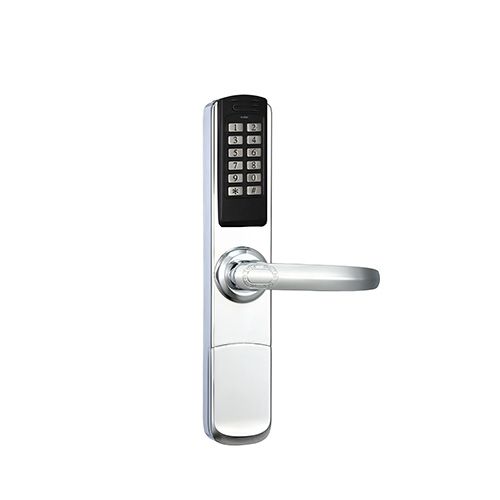

LOB 5500MK Adel electronic escutcheon
The LOB 5500MK electronic escutcheon allows the user to control door access using a PIN code or a proximity card. The escutcheon is suitable for installation on doors. It can be also mounted on existing doors.
LOB 5500MK is ideal for passages with medium or high traffic intensity, where access control of entering persons is required. Those passages may include doors to a corridor, office, pavilion, room or a rented apartment. The escutcheon is easy to install and robust.
Main features and characteristics:
- Opened with a PIN code or proximity card
- Unrestricted access (conference mode)
- Robust and long-lasting structure
- Easy installation
- Battery powered (4 LR6 "AA" batteries)
- Emergency power - contacts to an external 9V battery
- Emergency opening - mechanical key
| Available finish | silver satin |
| PIN code memory capacity | 31 |
| RFID card memory capacity | 62 |
| Dimensions excl. handle | 55.5 x 300 x 33 mm (W x H x D), |
| Door thickness | 35 – 75 mm; (standard version: 40-45 mm) |
| Spindle | 7.5 mm |
| Working temperature | -15 – +50 °C |
| Relative humidity | 45% – 85% |
| Power source | 6 V (4 LR6 "AA" batteries) |
| Low battery voltage indication | < 4.5 V, special sound signal |
| Power consumption in standby mode | < 100 µA |
| Battery life | appr. 10 000 openings |
| Type of proximity card | factory DES coded |
Ordering indexes:
| EZ55MK-18 | LOB 5500MK electronic escutcheon, silver satin |
| HI50MK-0 | Proximity card for LOB 5500MK escutcheon, white |
| EI50MB-4 | Proximity keyring for LOB 5500MK escutcheon, blue |
Delivery:
- External escutcheon
- Internal escutcheon
- 40 mm half cylinder insert with two keys
- Set of mounting bolts
- Spindle
- Mounting template
