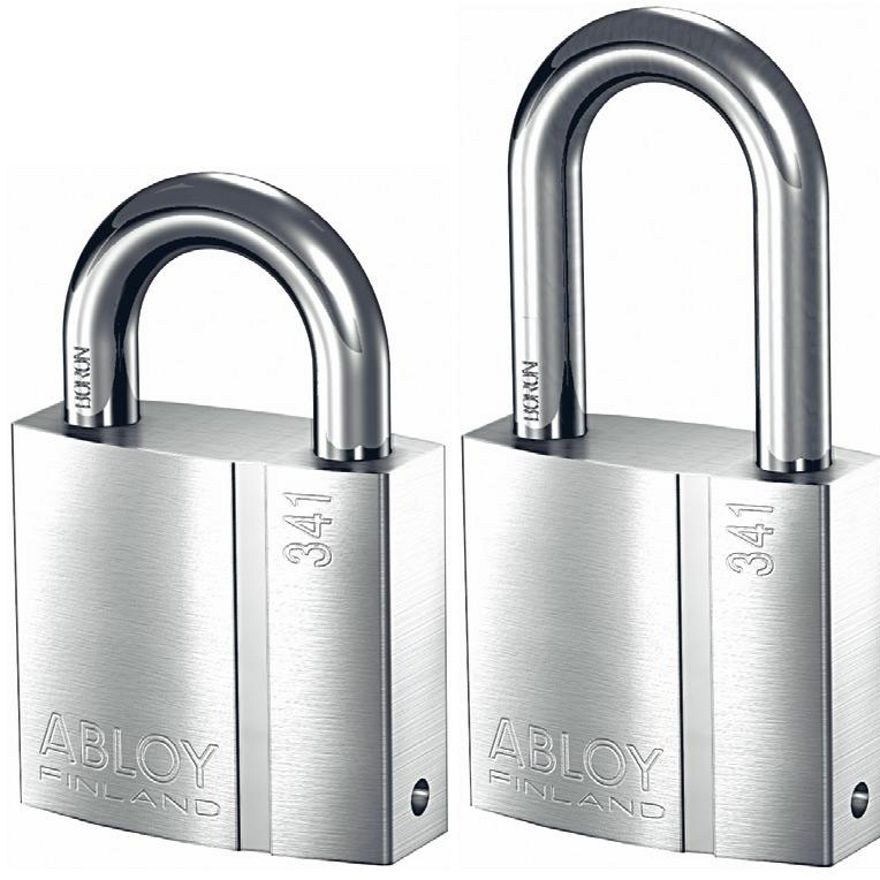

    ABLOY PL341 Brass Padlock

    • Distribution and logistics
    • Heavy industry
    • Transportation
    • Manufacturing
    • Mining
    • ABLOY

    ABLOY padlocks provide maximum resistance against physical attack. The hardened, free-spinning protection plate prevents drill bits from penetrating the lock. Further security is provided by the hardened stainless ball bearings locking the shackle at both ends. The highest security can be provided by non-rekeyable construction.

    The unique rotating disc cylinder system employed in ABLOY padlocks is effectively pick-proof and enables an extraordinarily wide range of comprehensive master keying options.

    A strong padlock for storage doors, gates and windows as well as trailers, protective bars, storage lockers, boats, roller-shutter doors etc.

    • Security Grade 3

    Equipped with hardened boron steel shackle, diameter 10 mm.


    ABLOY PL341 Brass Padlock


    PL341

    Grade: 3

    Body
    Material: Brass
    Finish: Chrome

    Shackle
    Material: Case-hardened boron steel
    Finish: Chrome
    Diameter: 10mm
    Vertical Clearance: 25mm
    Horizontal Clearance: 28mm

    Number of Discs: 11

    Key removable in locked position

    Keying Platforms

    ABLOY® PROTEC2 (T)
    ABLOY® PROTEC (N)
    ABLOY® CLASSIC (C)

    _________________________________________________________

    PL341/50

    Grade: 3

    Body
    Material: Brass
    Finish: Chrome

    Shackle
    Material: Case-hardened boron steel
    Finish: Chrome
    Diameter: 10mm
    Vertical Clearance: 50mm
    Horizontal Clearance: 28mm

    Number of Discs: 11

    Key removable in locked position

    Keying Platforms

    C = ABLOY CLASSIC
    N = ABLOY PROTEC



    Dimensions
