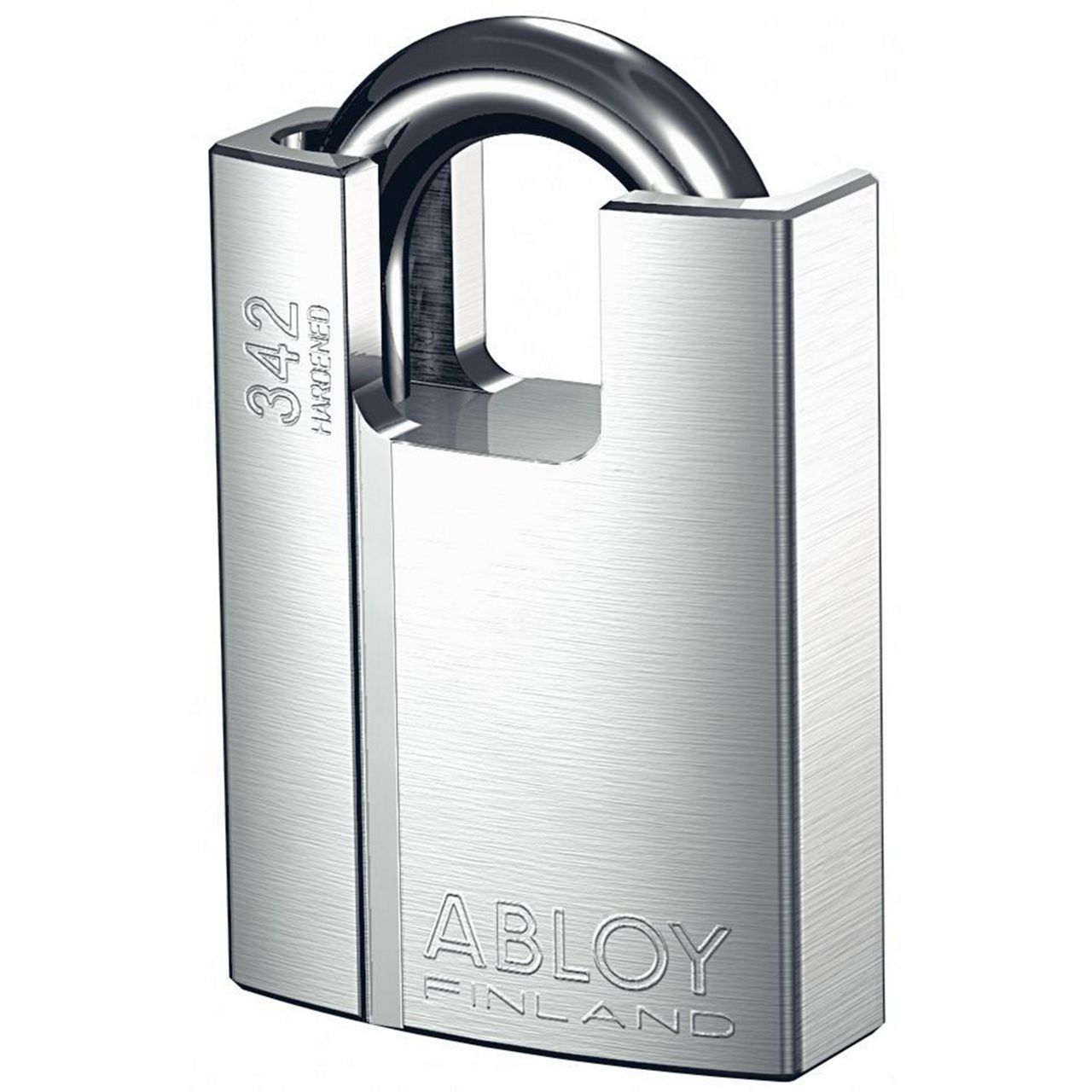

    ABLOY PL342 Steel Padlock with Raised Shoulders

    • Distribution and logistics
    • Heavy industry
    • Transportation
    • Manufacturing
    • Mining
    • ABLOY

    ABLOY padlocks provide maximum resistance against physical attack. The hardened, free-spinning protection plate prevents drill bits from penetrating the lock. Further security is provided by the hardened stainless ball bearings locking the shackle at both ends. The highest security can be provided by non-rekeyable construction.

    The unique rotating disc cylinder system employed in ABLOY padlocks is effectively pick-proof and enables an extraordinarily wide range of comprehensive master keying options.

    By extending the case-hardened steel body to surround the shackle we have made this padlock virtually impregnable against attack by cutting and prying tools.

    Suitable for heavy sliding doors, train wagons, trucks, warehouses etc.

    • Security Grade 4

    PL342 is equipped with case hardened boron steel shackle, diameter 10 mm.

    For SCEC endorsed secure area applications this padlock must be fitted with a non-rekeyable ABLOY PROTEC or Disklock Pro cylinder.


    ABLOY PL342 Steel Padlock with Raised Shoulders


    Grade: 4

    Body
    Material: Case-hardened steel
    Finish: Chrome

    Shackle
    Material: Case-hardened boron steel
    Finish: Chrome
    Diameter: 10mm
    Vertical Clearance: 25mm
    Horizontal Clearance: 25mm

    Number of Discs: 11

    Key removable in locked position

    Keying Platforms

    ABLOY® PROTEC2 (T)
    ABLOY® PROTEC (N)
    ABLOY® CLASSIC (C)



    Dimensions

    • abloy-padlocks-brochure.pdf(PDF, 1 MB)
