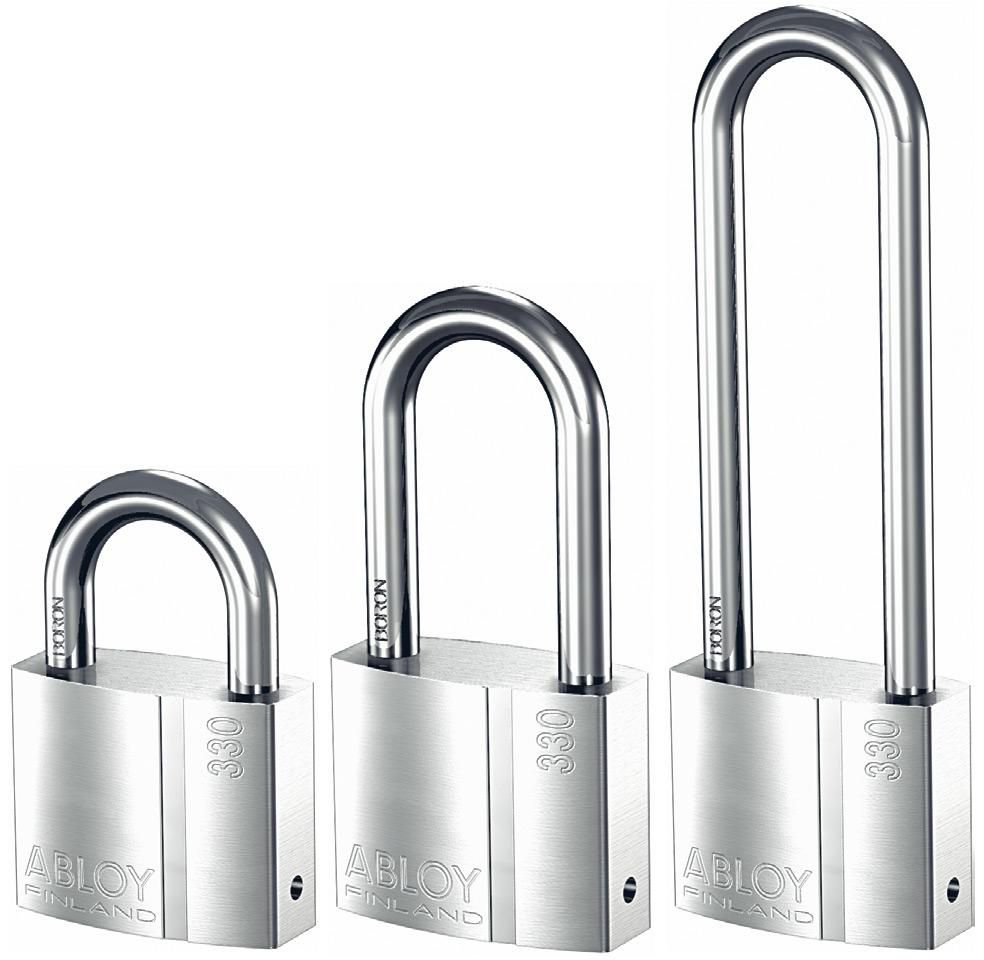

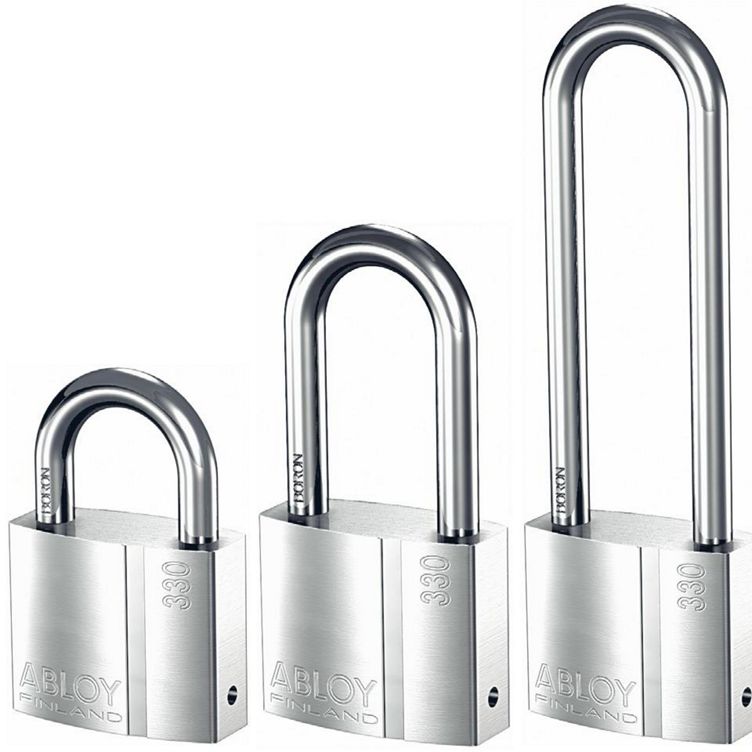

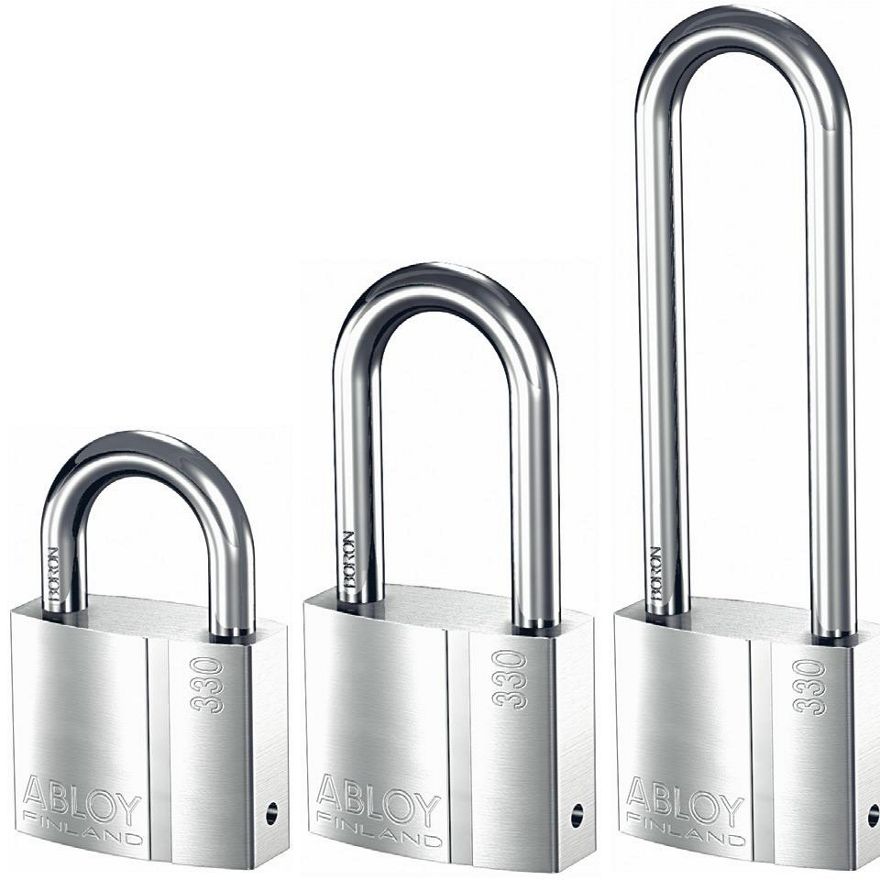

    ABLOY PL330 Brass Padlock

    • Distribution and logistics
    • Heavy industry
    • Transportation
    • Manufacturing
    • Mining
    • ABLOY

    ABLOY padlocks provide maximum resistance against physical attack. The hardened, free-spinning protection plate prevents drill bits from penetrating the lock. Further security is provided by the hardened stainless ball bearings locking the shackle at both ends. The highest security can be provided by non-rekeyable construction.

    The unique rotating disc cylinder system employed in ABLOY padlocks is effectively pick-proof and enables an extraordinarily wide range of comprehensive master keying options.

    An all-purpose padlock of durable construction for storage doors, motorcycles, gates, trailers, power station switches etc.

    Equipped with hardened boron steel shackle, diameter 8 mm.

    • Security Grade 3

    Also available with non-sparking brass or stainless steel shackle (security grading not tested).

    For SCEC endorsed intruder resistant area applicatons this padlock must be fitted with an ABLOY PROTEC or Disklock Pro cylinder.


    ABLOY PL330 Brass Padlock


    PL330

    Grade: 3

    Body
    Material: Brass
    Finish: Chrome

    Shackle
    Material: Case-hardened boron steel
    Finish: Chrome
    Diameter: 8mm
    Vertical Clearance: 25mm
    Horizontal Clearance: 25mm

    Number of Discs: 11

    Key removable in locked position

    Keying Platforms

    ABLOY® PROTEC2 (T)
    ABLOY® PROTEC (N)
    ABLOY® CLASSIC (C)

    _________________________________________________________

    PL330/50

    Grade: 3

    Body
    Material: Brass
    Finish: Chrome

    Shackle
    Material: Case-hardened boron steel
    Finish: Chrome
    Diameter: 8mm
    Vertical Clearance: 50mm
    Horizontal Clearance: 25mm

    Number of Discs: 11

    Key removable in locked position

    Keying Platforms

    C = ABLOY CLASSIC
    N = ABLOY PROTEC

    _________________________________________________________

    PL330/100

    Grade: Not tested

    Body
    Material: Brass
    Finish: Chrome

    Shackle
    Material: Case-hardened boron steel
    Finish: Chrome
    Diameter: 8mm
    Vertical Clearance: 100mm
    Horizontal Clearance: 25mm

    Number of Discs: 11

    Key removable in locked position

    Keying Platforms

    C = ABLOY CLASSIC
    N = ABLOY PROTEC



    Dimensions
