ASSA ABLOY DL6111SA Swingdock Autodock

Exceptionally robust and easy to use, hydraulic swing-lip dock levelers are safe, efficient, and low maintenance. The burned plates take heavy use and absorb impact—making them a long-lasting element of your loading operations. We’ve also tapered the lip to prevent material handling equipment from grounding out on docked trailer beds, and our open hinge design keeps dust and dirt from collecting where it shouldn’t. Choose from load capacity options of 100kN or 150kN.

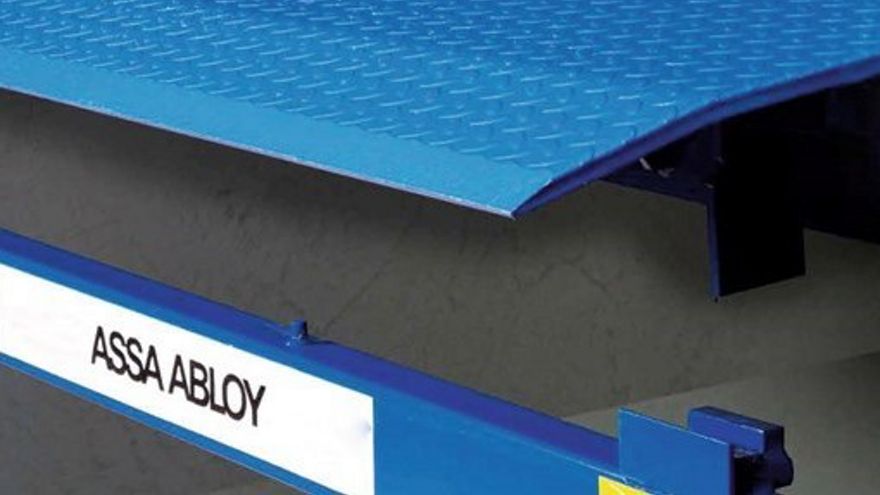

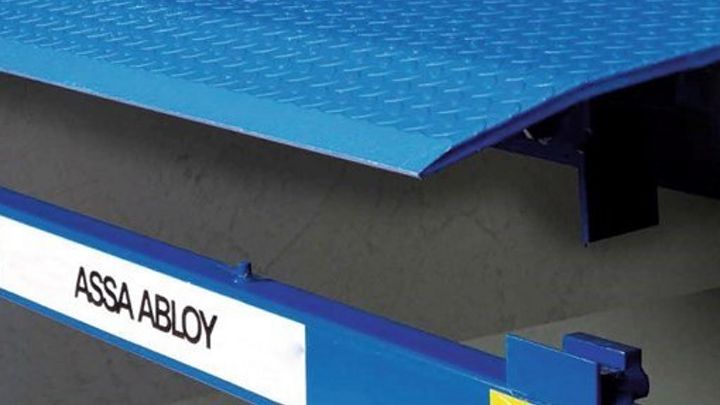

ASSA ABLOY DL6111S hydraulic swing-lip dock leveller

Easy integration

The DL5111SA has a self-supporting frame making it simple to integrate with your building. It makes the perfect base for a complete outside loadhouse—with leveler, shelter, and door offering a total docking solution. Link it to our 950 series docking control system, and you

Normal length: 2000, 2450, 3000, mm (other sizes on request)
Normal width AD: 3300, 3500, 3600, 3750 mm
Leveller width: 2000, 2200 mm
Load capacity; 100 kN (10 tonnes), 150 kN (15 tonnes)
Vertical working range 100 kN; Rise above dock up to 410 mm, Fall below dock down to 310 mm
Vertical working range 150 kN; Rise above dock up to 390 mm, Fall below dock down to 340 mm
Platform tear-plate thickness 100 kN: 8/10 mm

Platform tear-plate thickness 150 kN: 10/12 mm
Max point load leveller platform: 6,5 N/mm² (8 mm tear-plate & 10 mm tear-plate)
Lip material & length: Steel, 500 mm
Control unit protection class: IP 54
Nominal voltage: 400V 3-phase, 230V 3-phase
Nominal motor power: 1,5 kW
European standard: EN1398 dock levellers
