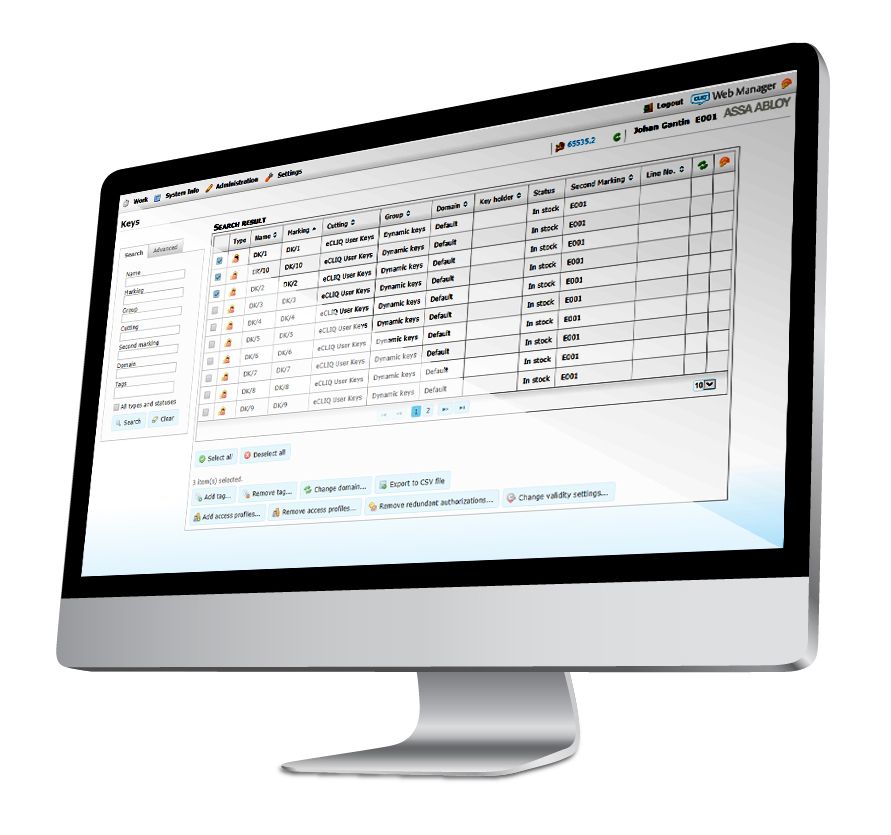

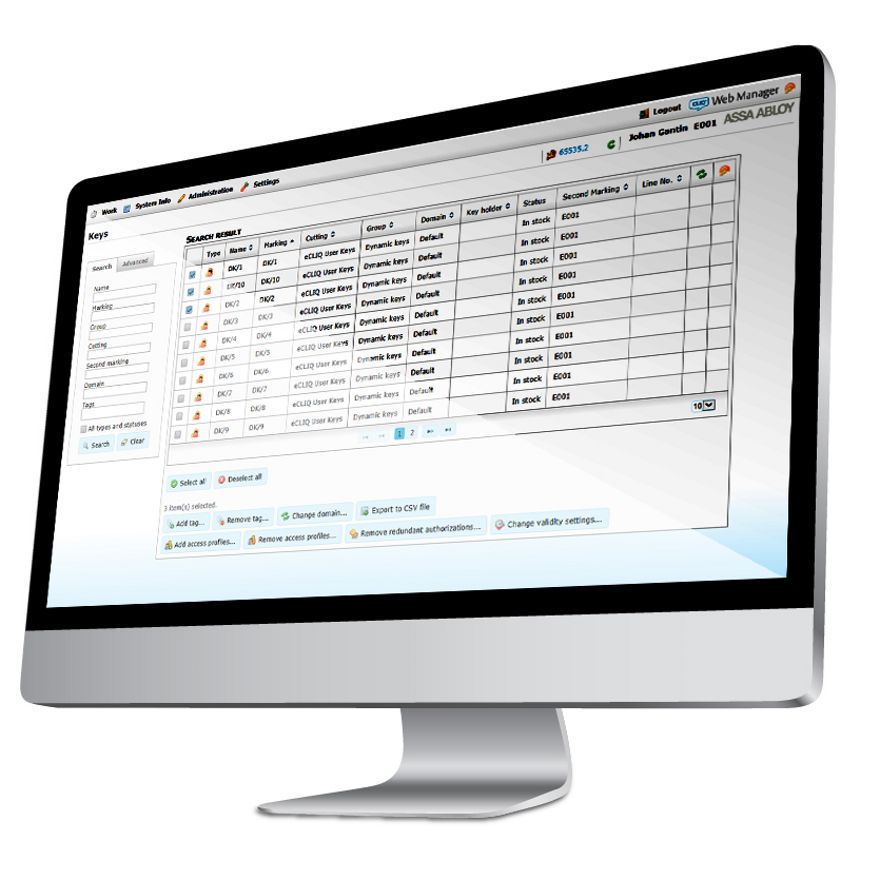

CLIQ Web Manager

An enterprise level access control software

CLIQ Web Manager is a full feature web based software for managing your eCLIQ system. CLIQ Web Manager provides easy, secure and flexible management of your eCLIQ keys and cylinders. CLIQ Web Manager is an enterprise full feature software suitable for all types of systems including large ones. It is powerful but a bit more complex and requires training. It has a lot of features designed for large systems. CLIQ Web Manager systems are created and extended in ASSA ABLOY’s factory in Melbourne while being sold and supported by your local locksmith.

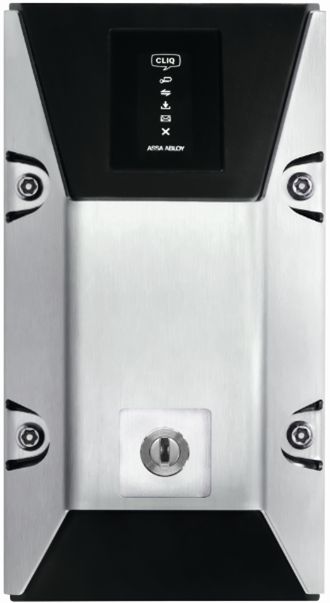

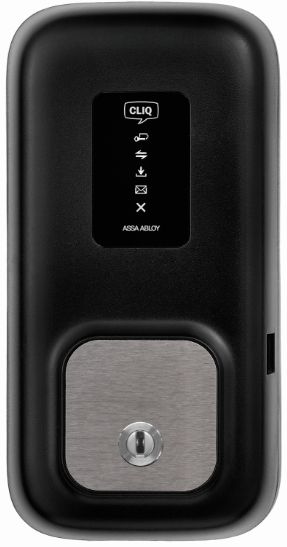

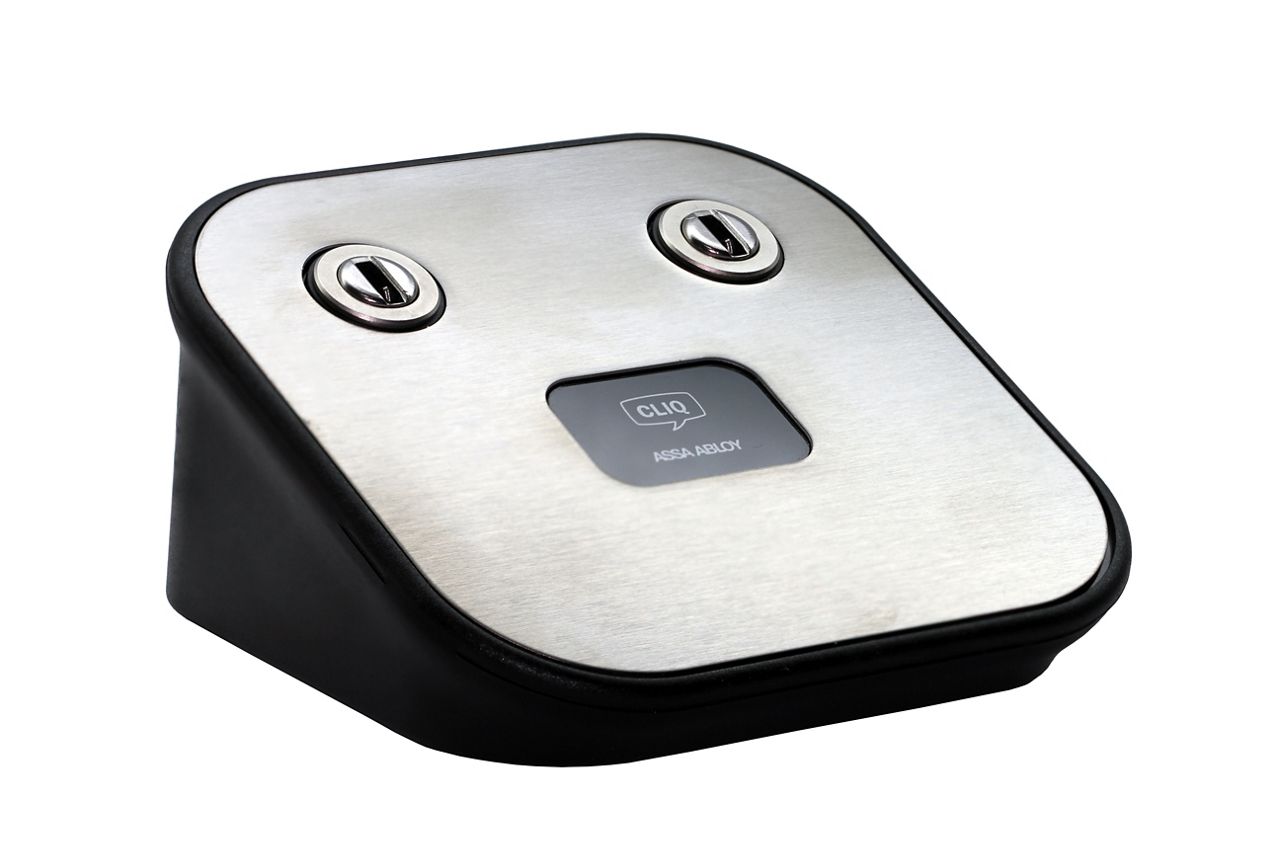

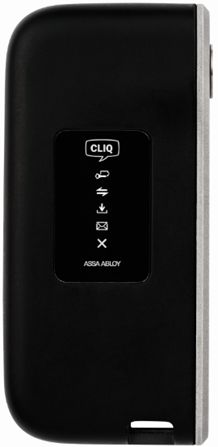

CLIQ Web Manager is accessible via web browsers from anywhere in the world. Access rights are easily managed on an induvial keys basis or for a range of keys in one go. The key holders can then update their keys via network connected CLIQ Remote programming devices placed on a wall or paired with a mobile phone.

All communication with CLIQ Web Manager is encrypted and a personal PIN code protected CLIQ C-key as well as a certificate in the web browser is required to login to the web site.

CLIQ Web Manager with CLIQ Remote enables many of the tasks involved in the management of an electronic keying system to be done automatically. Access right changes, audit trails collection and key validity extensions are examples of such tasks. This often eliminates the need to change the access rights in the cylinders, instead the access rights changes are done in the key when the key holders update their keys.

Features

• Full feature software
• No limitation in terms of system size
• Multiple administrators with various access rights in the software
• Advanced features such as remote programming of keys, revalidation, domains, bulk operations and email notifications to key holders
• Comes in two versions – hosted or installed in-house

Memory structure of keys and cylinders

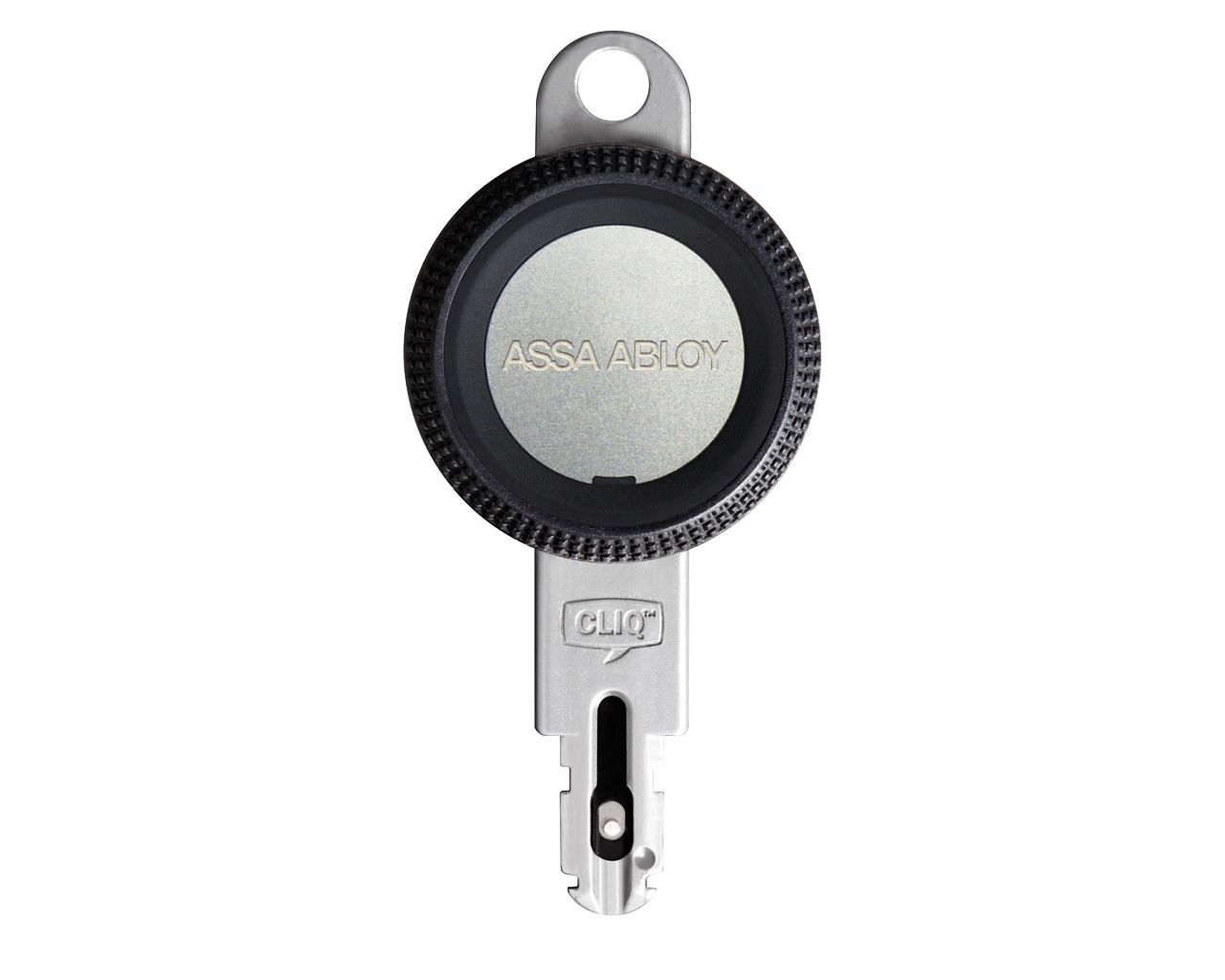

Dynamic Key:
Access to 1,500 cylinders can be programmed to the key.
1,000 audit trails are stored on the key.
10 audit trails from eCLIQ cylinders belonging to another system are stored on the key.

Normal Key:
The access rights for Normal keys are determined by the cylinders and the time settings on the keys. Normal keys could open an unlimited amount of cylinders.
1,000 audit trails are stored on the key.
10 audit trails from eCLIQ cylinders belonging to another system are stored on the key.

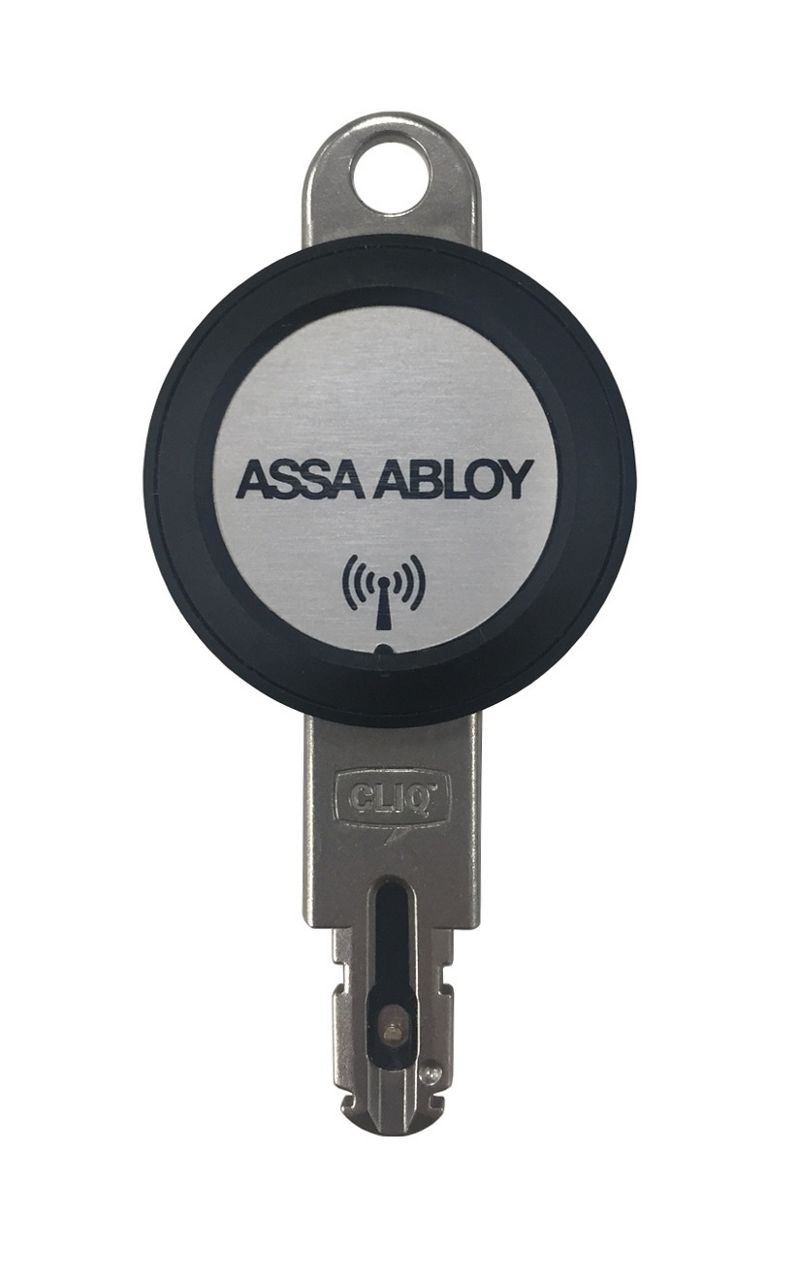

C-Key:
400 cylinder programming tasks (blocking/unblocking of lost/found keys or requests to extract the audit trails from cylinders) can be programmed to the key.
Audit trails from four full cylinders can be extracted at a time.

Cylinder:
1,000 key groups* or individual keys can be programmed in the cylinder’s list of authorized keys. The cylinders are pre-programmed with authorized key groups at delivery. So no programming of the access rights in the cylinders are needed unless a key has been lost or stolen or if a Normal key is to be black listed. Removing access for a Dynamic key is easily done by programming the key. However also Dynamic keys can be denied access to a cylinder by black listing the key in the cylinder.

3,000 individual keys can be stored in the black list.
500 audit trails are stored in the cylinder.
10 audit trails from eCLIQ keys belonging to another system are stored in the cylinder.

*Maximum 65.535 keys in each group.
