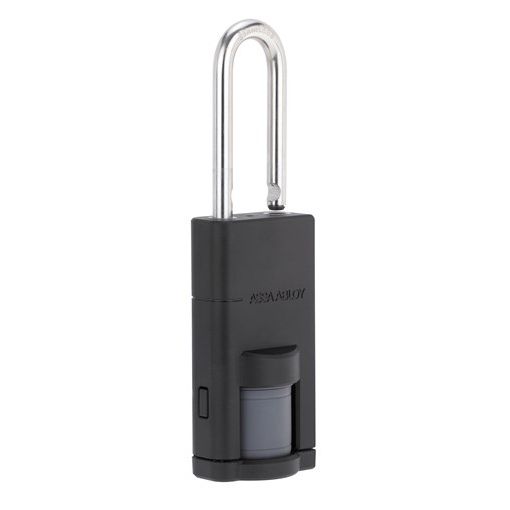

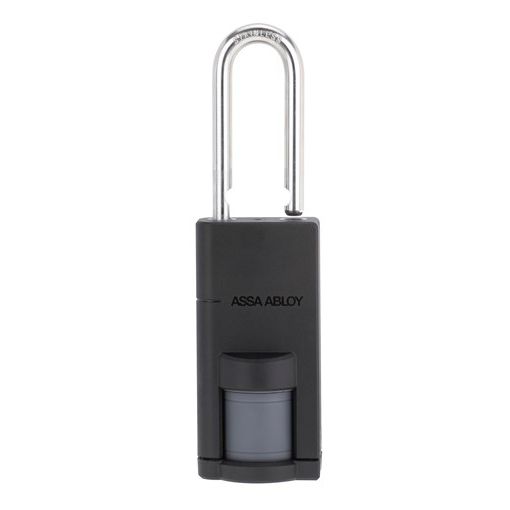

Aperio® P100 Padlock

The new Aperio P100 padlock is a revolutionary offering from ASSA ABLOY. With a unique, weather-protected design, the P100 is IP66 rated thereby making it the best fit for outdoor access control applications.

The P100 can work both as an online and as an offline lock, is compatible with all high frequency access control technologies and is cycle tested for 30,000 operations.

Features

  • Communication from hub via RS485 bus to the Online Access Control System (addressable) - access decision in the EAC system
  • Main electronics (RFID + radio) in the outside knob - secure electronics inside cylinder core
  • Freely rotating lock cam
  • Override Credentials: Up to 10 override credentials can be stored for an emergency access in case of failure or no communication with the access control or the hub
  • Smart Credential Handling: In addition to the override credentials, the last valid credentials (up to1000) can be cached automatically and for a limited time (up to 30 days), so that an opening can still be made without the intervention of the administrator
  • LED for status visualisation
  • Works with an online system or as an offline lock
  • The C100 provides Mobile Access (BLE) for use with Smart Phone Credentials
  • Supports the following RFID technologies: MIFARE Classic®, MIFARE Ultralight®, MIFARE® DESFire®, MIFARE Plus®, MIFARE® SE, MIFARE® DESFire®  SE; iCLASS SE; iCLASS Seos®, iCLASS Seos Elite

Scope of delivery

  • 1 Padlock assembly with battery inserted and install instructions
  • Battery change tool
