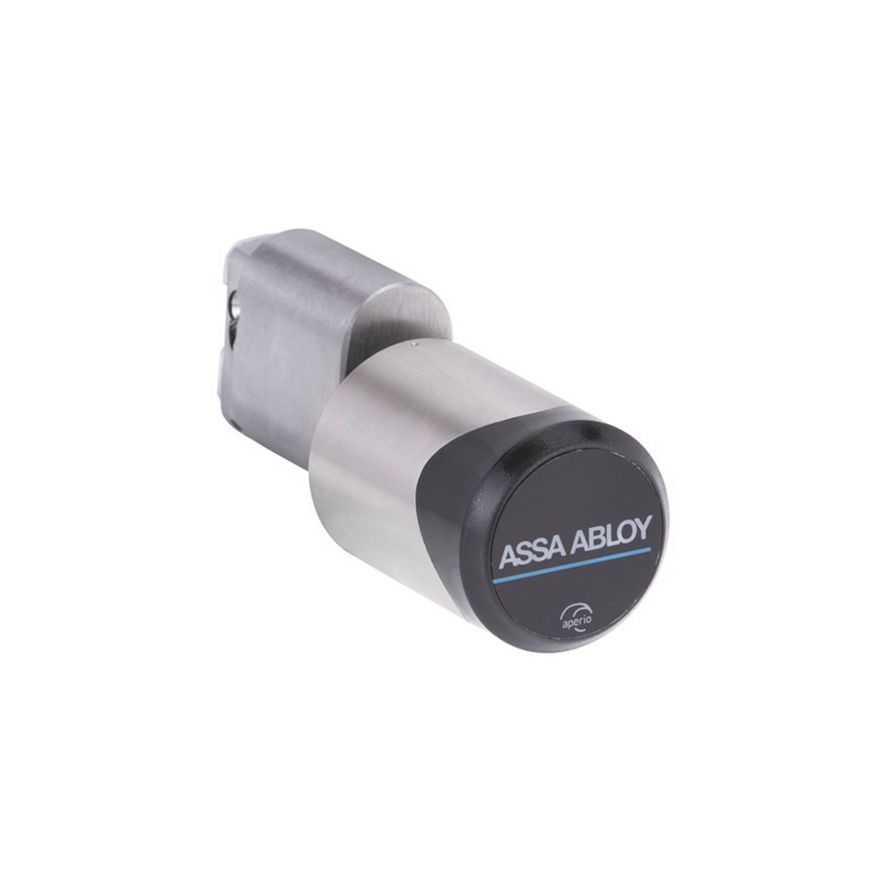

Aperio® C100 Knob Cylinder

Designed to fit the standard Lockwood oval 570 series cylinder, the C100 provides a unique & cost effective migration to an online electronic access control door.

The external housing contains a sophisticated battery powered proximity reader that communicates wirelessly to a hub. The hub is then wired directly to the access control system and enables standard online access control features at significantly reduced costs than that of a hard wired door.

Features

  • Communication from hub via RS485 bus to the Online Access Control System (addressable) - access decision in the EAC system
  • Compatible with Australian standard mortice lock
  • Main electronics (RFID + radio) in the outside knob - secure electronics inside cylinder core
  • Freely rotating lock cam
  • Override Credentials: Up to 10 override credentials can be stored for an emergency access in case of failure or no communication with the access control or the hub
  • Smart Credential Handling: In addition to the override credentials, the last valid credentials (up to1000) can be cached automatically and for a limited time (up to 30 days), so that an opening can still be made without the intervention of the administrator
  • LED for status visualisation (red/green/orange)
  • Works with an online system or as an offline lock
  • The C100 provides Mobile Access (BLE) for use with Smart Phone Credentials
  • Supports the following RFID technologies: MIFARE Classic®, MIFARE Ultralight®, MIFARE® DESFire®, MIFARE Plus®, MIFARE® SE, MIFARE® DESFire® SE; iCLASS SE; iCLASS Seos®, iCLASS Seos Elite

Scope of delivery

  • 1 single knob cylinder with battery (Lithium CR2) and installation instructions
  • Screws and fixing material
  • Battery change tool
  • X7 Cam fitted, A Cam supplied
