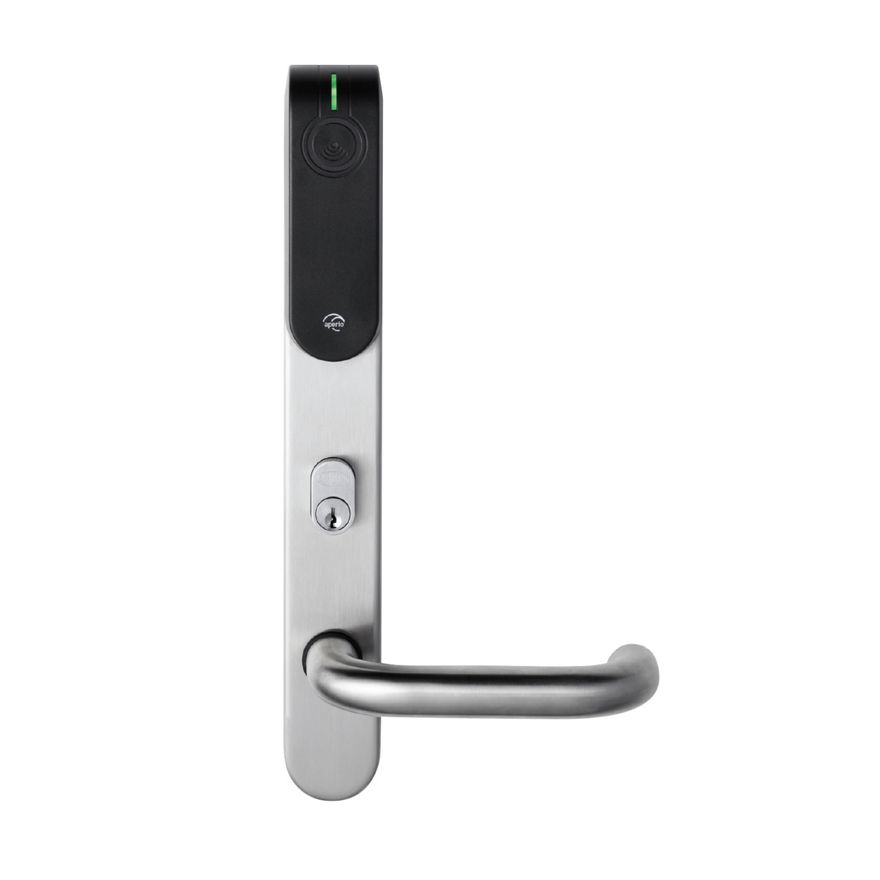

Aperio® E100 V3 Series Escutcheon
Authorisation updates in real time
The E100 V3 Series Escutcheon is engineered to retrofit seamlessly onto the Lockwood 3570 Series mechanical mortice lock, providing a cost‑effective migration path to a fully online electronic access control door. In addition to multi‑format card access, the external escutcheon supports key override, while the internal lever enables compliant, intuitive emergency egress.
Powered by the V3 wireless platform, even high‑frequency entrance doors can operate for up to two years on a standard battery—maintaining consistent remote‑opening performance, with typical communication times of around five seconds between the Aperio® lock and the access control system.
With faster response times and advanced electronics, Aperio® delivers the full functionality of online access control at a significantly lower cost than traditionally hard‑wired solutions.
Features
- Supports multiple RFID credentials and Seos mobile access
- Heartbeat communication: 5-10 seconds
- Remote door opening/locking functions
- Supports multiple high frequency RFID technologies and Seos mobile access
- Powerful new electronics with USB interface
- Audit trails and time zones managed through existing system
- Compatible with Lockwood 3570 series mechanical mortice locks
- Additional Key Override
- Emergency egress
- Lock can store up to 10 override credentials/prox cards
- Store last 200 events and audit trails locally in the lock
- Increase battery performance - to 40,000 operations
- LED status
- Battery low warning sent to EAC system
Function
- External lever is always locked. To unlock badge card and activate lever. Door automatically re locks after set time. Can also be opened via Key override.
- Internal lever is set to escape - free egress at all times.
Aperio® E100 V3 Series Escutcheon
