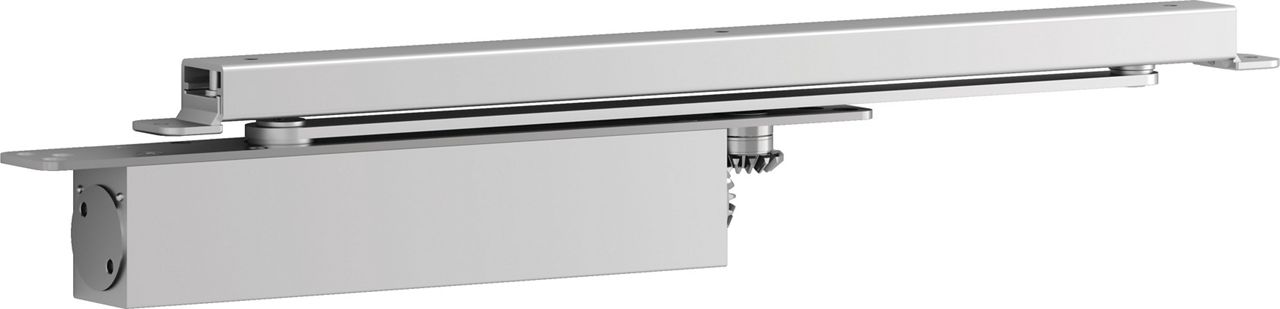

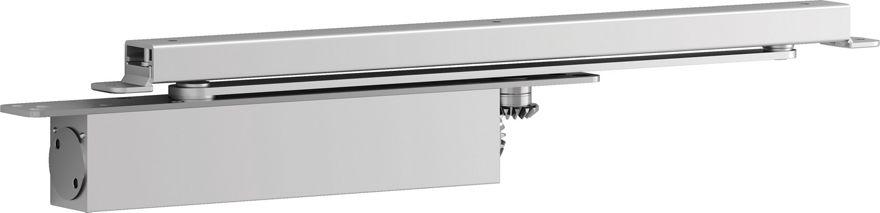

DC860
Concealed door closer with Cam-Motion® technology and guide rail
Description:
- Concealed door closer with Cam-Motion® technology and small standard concealed guide rail G892 or standard concealed guide rail G893
- Barrier-free in accordance with DIN18040 for door width up to max. 1250mm
- Meets the requirements of DIN SPEC 1104 / CEN15894
- Certified in compliance with EN 1154, size 1-5
- Suitable for fire and smoke protection doors
- For single action doors up to 1250 mm wide
Characteristics:
- Can be used for left and right-handed doors
- Closing speed and latching speed adjustable from top facing regulating valves
- Built-in backcheck
- Thermodynamic valves for consistent performance
- Opening angle up to 120°
- Large range of applications
- Versions with 4 mm and 8 mm spindle extensions
- Standard colours: silver EV1
Finish options
-
Silver, EV1
-
Customized colours on request
DC860
Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use
