DC700G-FM

Free-Motion

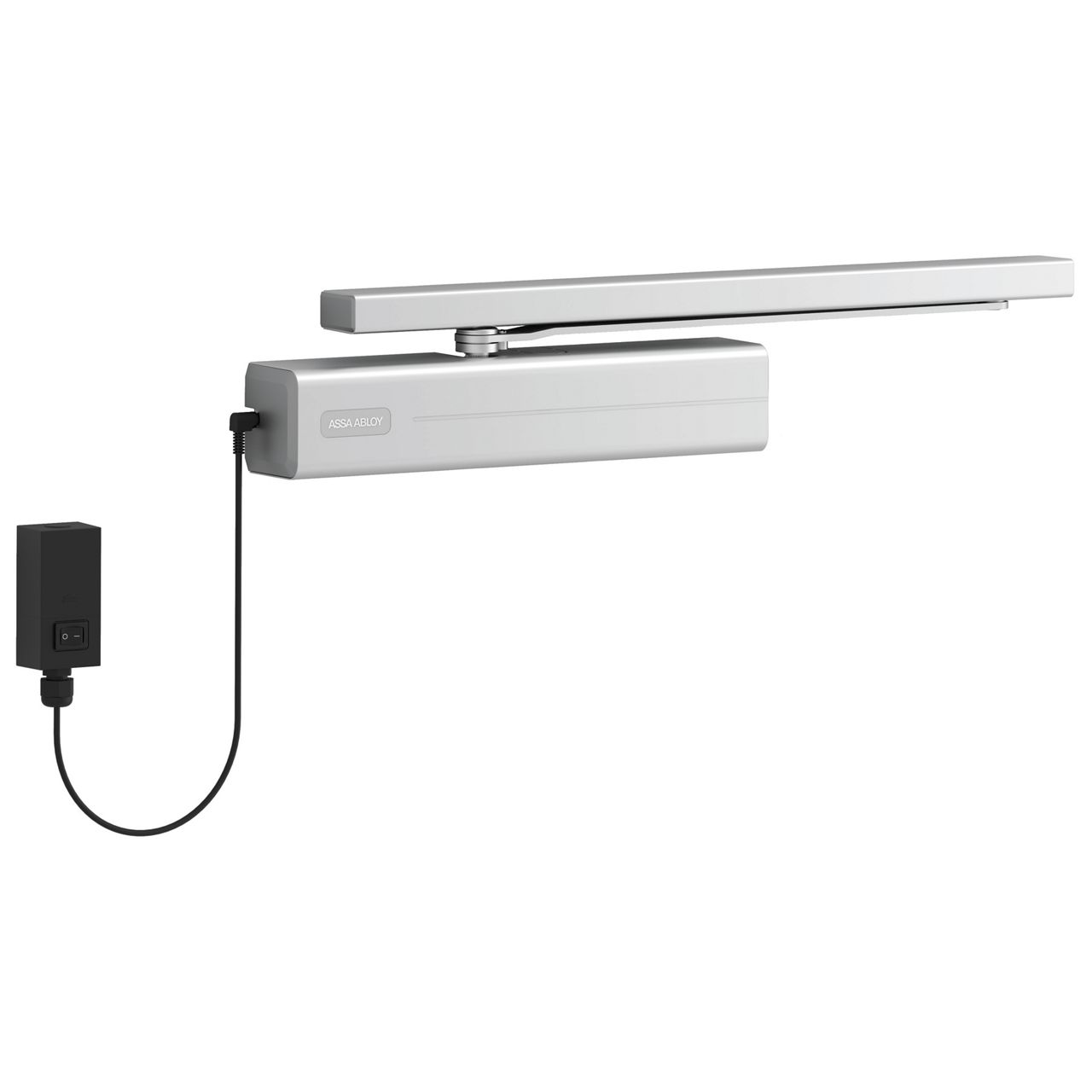

Free-Motion door closer with Cam-Motion^® technology, free-swing function and guide rail for single leaf doors, size 3-6

The DC700 series brings precise control for doors which must balance access and protection, contained within a stylish exterior to meet the demands of discerning environments. Combining Cam-Motion technology with free-swing function, Free-Motion door closers are designed for smooth opening with almost zero force.

Certified in compliance with EN 1154/1155, size 3-6

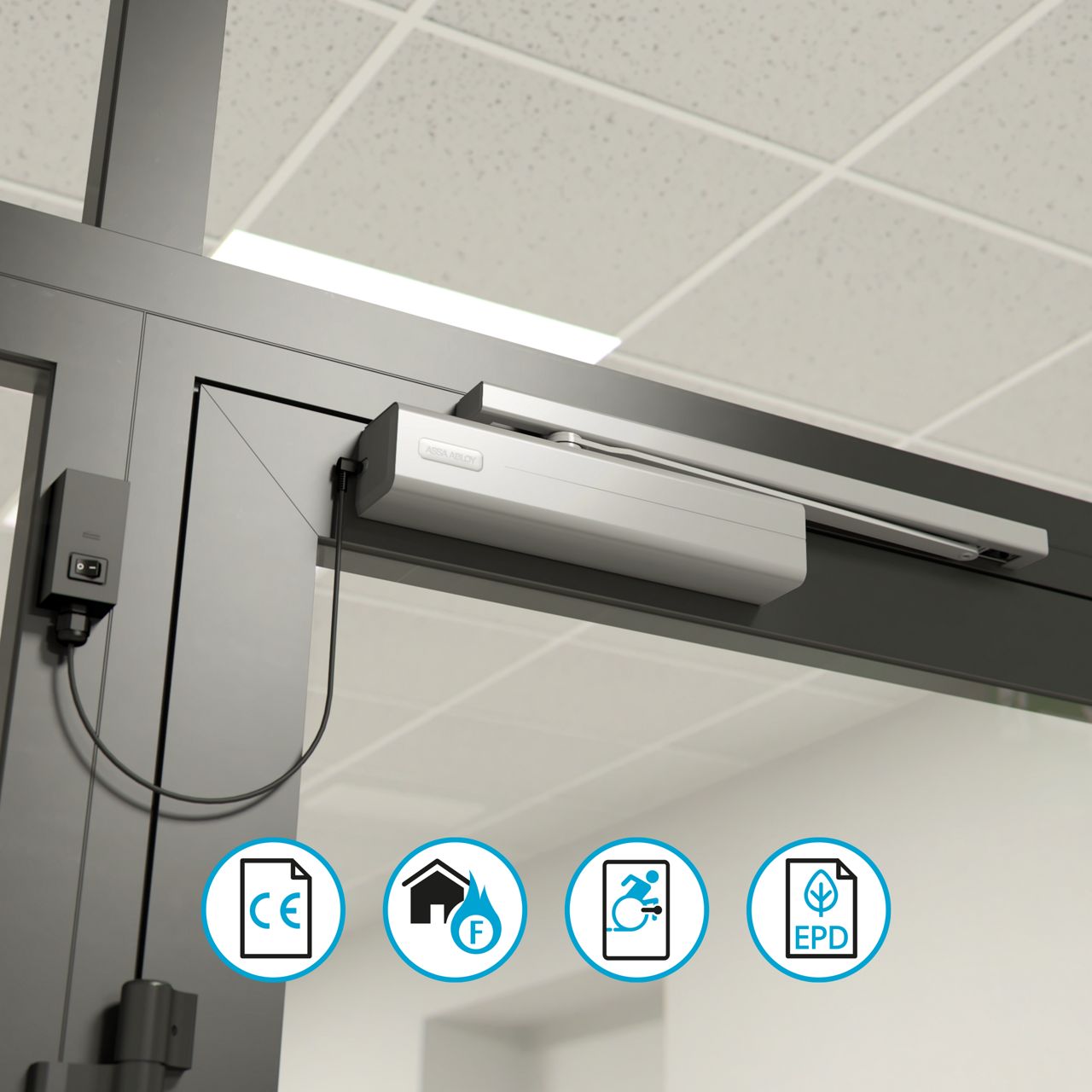

Suitable for fire and smoke protection doors
For single leaf doors up to 1400 mm width
Barrier-free according to DIN 18040 (max. leaf width 1250 mm) and CEN/TR 15894
DIBt tested as a hold-open system with various smoke detector systems

Colours

Silver, EV1
White, similar to RAL 9016
Stainless steel, design and full cover
Customized colours on request

1 of 3

Resistance-free opening
Even heavy fire and smoke doors open almost weightlessly providing greater freedom of movement
Step-by-step activation
Door can be left open at any angle from the very first degree allowing building users to circulate freely
Height-adjustable spindle
Offers flexibility, compensates installation mistakes and enables later adjustment without cost or time delays
Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use

Features

Rapidly decreasing opening force allows easy and barrier-free initial door opening
Free-swing function starts from a door opening angle ≥ 0° and is active until power supply is switched off
Height-adjustable, grooved spindle (14 mm) compensates installation mistakes
Closing and latch speeds can be raised and lowered independently
Durable, front-facing metal valves make adjustments easy and reliable
Consistent performance in a wide range of indoor/outdoor temperatures
Simplified stock management with universal parts and adaptable solutions

Guide rails and accessories

G795 height-adjustable (2 mm) free-swing guide rail with concealed fastening screws
A120 mounting plate for doors where direct mounting is not possible
A130 mounting plate for guide rail G795
A153 mechanical opening damper, continuously adjustable up to an opening angle of max. 130° (does not replace door stop)
A189 connection box for leaf mounting
1317-10 flush-mounted release button and
1316-10 surface-mounted release button for controlling fail-unlocked components, such as holding magnets and fail-unlocked strikes, and as a manual switch / control for arrester systems
RZ100 smoke detector station with integrated power supply and smoke detector to control arrester devices
RZ101 ceiling smoke detector

Datasheet
DC700G-FM_Datasheet(PDF, 2 MB)

Installation instructions and drilling template
DC700G-FM_Drilling-Template(PDF, 812 KB)
DC700G-FM_Installation-Instructions(PDF, 2 MB)

Specification texts
DC700G-FM_Specifications(DOCX, 29 KB)

Drawings in pdf format
DC700G-FM_Frame-installation_Hinge-side(PDF, 119 KB)
DC700G-FMB_Standard-installation_Hinge-side(PDF, 128 KB)

Drawings in dwg format
DC700G-FM_Frame-installation_Hinge-side(DWG, 551 KB)
DC700G-FMB_Standard-installation_Hinge-side(DWG, 645 KB)

Item	Part number	Type
DC700G-FMB, door leaf mounting with cable and connection box, EN size 3-6, silver, EV1	DC700FMB--DEV1-	Door closer
DC700G-FMB, door leaf mounting with cable and connection box, EN size 3-6, white, similar to RAL 9016	DC700FMB--D9016	Door closer
DC700G-FMB, door leaf mounting with cable and connection box, EN size 3-6, stainless steel design	DC700FMB--D35-	Door closer
DC700G-FMB, door leaf mounting with cable and connection box, EN size 3-6, customized finish	DC700FMB--DXXXX	Door closer
DC700G-FM, frame mounting, EN size 3-6, silver, EV1	DC700FM---DEV1-	Door closer
DC700G-FM, frame mounting, EN size 3-6, white, similar to RAL 9016	DC700FM---D9016	Door closer
DC700G-FM, frame mounting, EN size 3-6, stainless steel design	DC700FM---D35--	Door closer
DC700G-FM, frame mounting, EN size 3-6, customized finish	DC700FM---DXXXX	Door closer
Guide rail G795, silver, EV1	DCG795----DEV1-	Guide rail
Guide rail G795, white, similar to RAL 9016	DCG795----D9016	Guide rail
Guide rail G795, stainless steel	DCG795----D35--	Guide rail
Guide rail G795, customized finish	DCG795----DXXXX	Guide rail
Mounting plate A120, galvanized	DCA120-------40	Accessory
Mounting plate A130, silver, EV1	DCA130-----EV1-	Accessory
Mounting plate A130, white, similar to RAL 9016	DCA130-----9016	Accessory
Mounting plate A130, customized finish	DCA130-----XXXX	Accessory
Mechanical opening damper A153	DCA153---------	Accessory
Connection box A189	DCA189---------	Accessory
Interrupter push-button 1316-10, surface-mounted	1316-10------00	Accessory
Interrupter push-button 1317-10, flush-mounted	1317-10------00	Accessory
Smoke detector station RZ100, silver, EV1	DCRZ100---DEV1-	Accessory
Smoke detector station RZ100, white, similar to RAL 9016	DCRZ100---D9016	Accessory
Smoke detector station RZ100, stainless steel design	DCRZ100---D35--	Accessory
Smoke detector station RZ100, customized finish	DCRZ100---DXXXX	Accessory
Ceiling mounted smoke detector RZ101/ORS 142 with base, white, similar to RAL 9010	DCRZ101----9010	Accessory

Name	Value
Closing force	EN size 3-6
Maximum leaf width	1400 mm
Closing speed (C)	Variable between 170° and 10°
Latch speed (L)	Variable between 10° and 0°
Maximum opening angle	Hinge side ~160° \| Non-hinge side ~125°
Door system	Single leaf
Handing	Left- / right-handed
Mounting methods	Leaf mounting on hinge side (with connection box) \| Frame mounting on hinge and non-hinge side (without connection box)
Height-adjustable	Yes
Corrosion resistance	Grade 3 (96 hours)

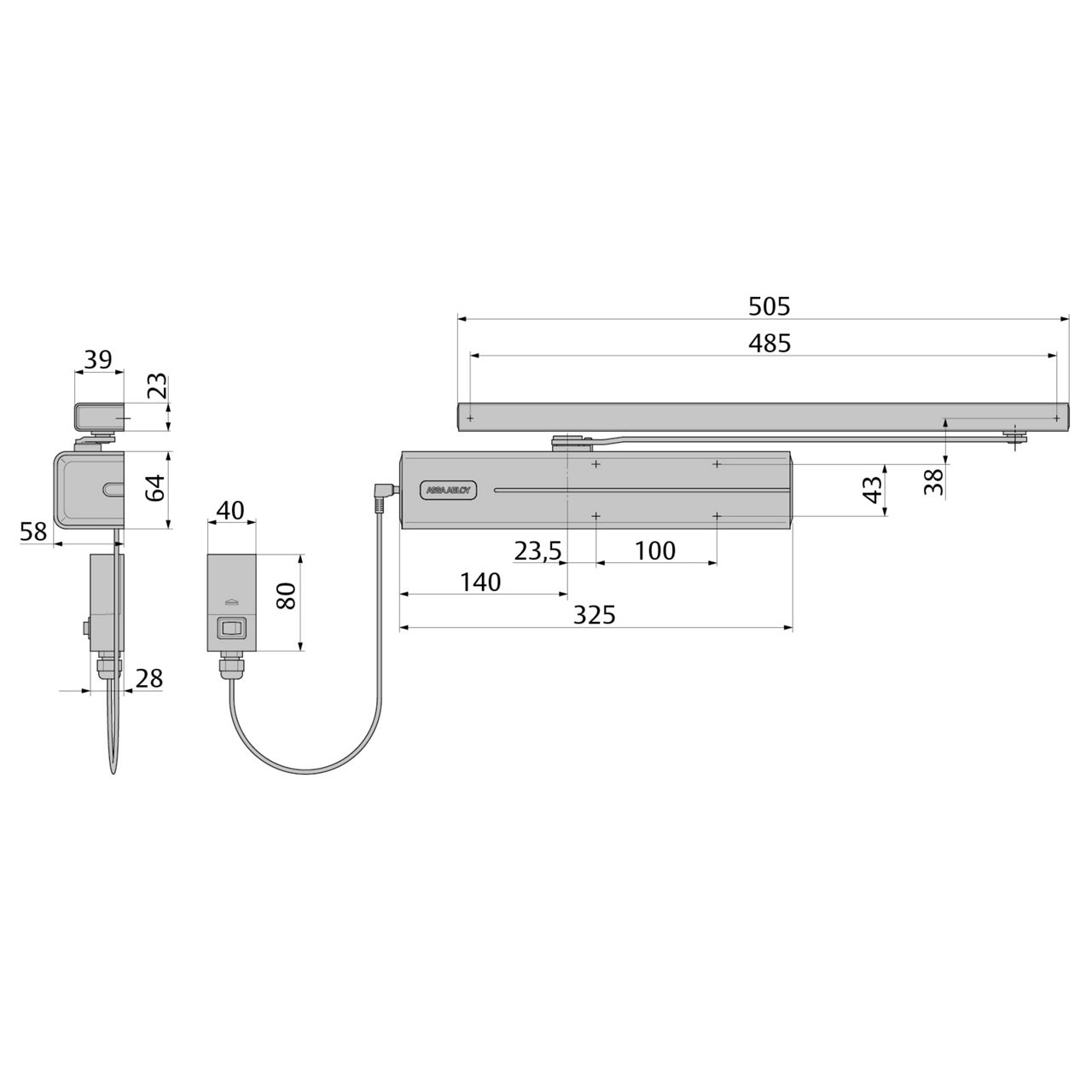

Dimensions (H x D x L)	64 x 58 x 325 mm
Required power supply	24 V DC
Rated power consumption	~90 mA
Duty cycle	100%
Certified in compliance with	EN 1154, EN 1155
CE classification	3 \| 8 \| 3-6 \| 1 \| 1 \| 3
CE / UKCA mark	Yes
Suitable for fire and smoke protection doors	Yes
Barrier-free according to	CEN/TR 15894 \| DIN 18040 (max. leaf width 1250 mm)
Third-party verified EPD	ISO 14025, EN 15804
Protection class	IP 43
