DC500

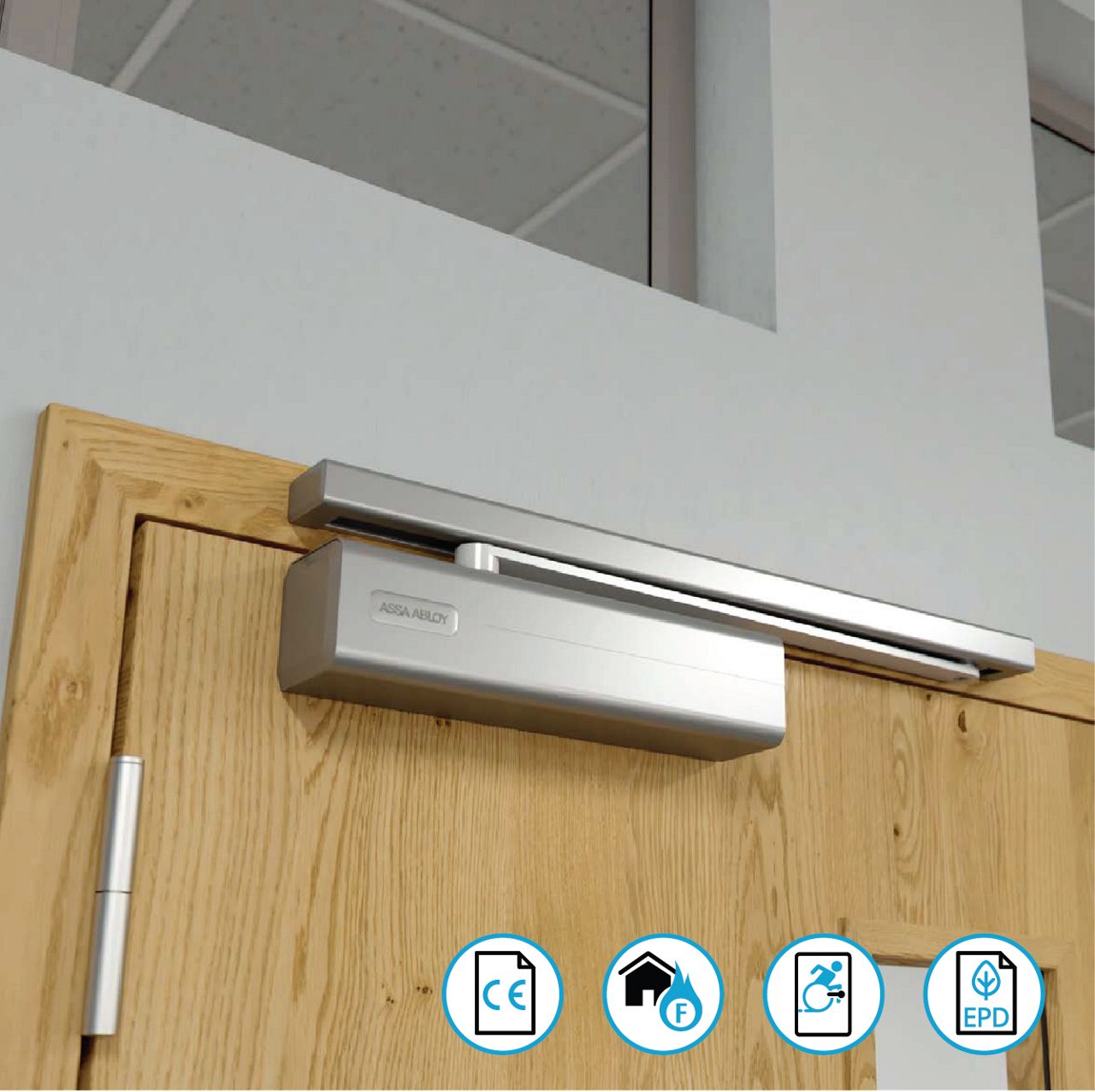

Door closer with Cam-Motion® technology and guide rail

Description:

  • Door closer with Cam-Motion® technology and height adjustable guide rail with rapidly decreasing opening torque.
  • Fulfils barrier-free building requirements (EA / CENTR 15894)
  • Certified in compliance with EN 1154, size 3-6
  • Suitable for fire and smoke protection doors
  • For single action doors up to 1100 mm wide
  • Can be used in four installation types: hinge andnon-hinge sides in standard and frame installation

Finish options

  • Silver, EV1

  • White, similar to RAL 9016

  • Black, similar to RAL 9005

  • Brown, similar to RAL 8014

  • Stainless steel, design and full cover

  • Customized Colors on request
