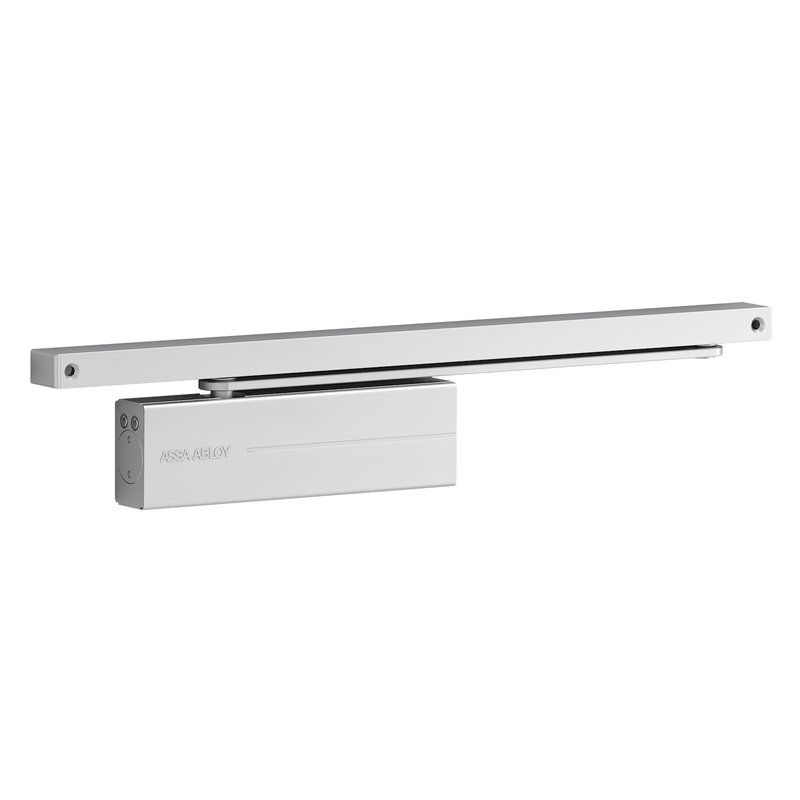

DC 175
- Door closer with Cam-Motion® technology and slide arm
- Meets the requirements for barrier-free construction in public buildings (EA / CEN TR 15894)
- Certified in accordance with the EN 1154 standard for controlled door closing devices, strength EN 3/4
- For single action leaves up to 950/1100 mm in width
Features
- Can be used with mounting plate on fire and smoke doors
- It can be used on doors with opening to the right and to the left in the four types of installation: hinge side and opposite hinge for assembly on the door or on the frame.
- Closing speed and final stroke adjustable by means of valves
- Compact design suitable for different architectural styles
- Thermodynamic valves for constant performance
- Opening angle up to 160 °
- Sled blaccio included in the package
- Standard finishes: EV1 Silver; black similar to RAL9005; white similar to RAL9016
- Certification CE
-1?wid=752)
DC175
