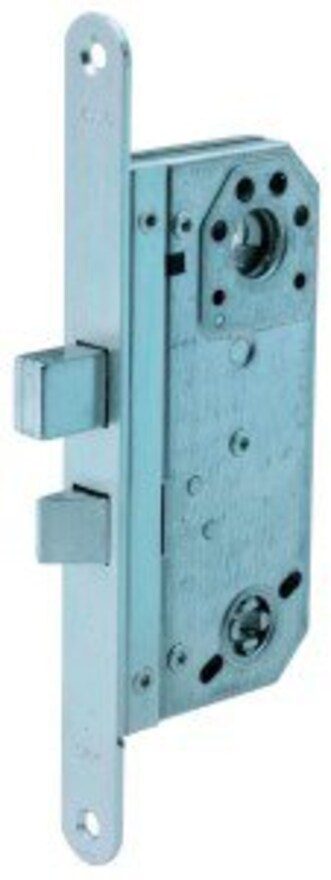

    ASSA Modular 765 sashlocks

    Our ASSA 765 sashlock is designed for shops and entrance doors to private properties or for situations where a key-operated deadlock is required, plus a latch and lever handles. Hardened steel deadbolt thrown 21mm by 90° turn of key or thumbturn.

    1 of 2

    Ideal for high frequency of use by public or others with little incentive to exercise care and with a high chance of misuse

    Hardened steel deadbolt thrown 21mm by 90° turn of key or thumb turn

    Cylinder and accessories can be bolted through the lockcase for added strength

    Key can be removed in locked or unlocked position

    Available with radius faceplate for installation using CNC machinery or square faceplate for on-site fitting

    • Datasheet

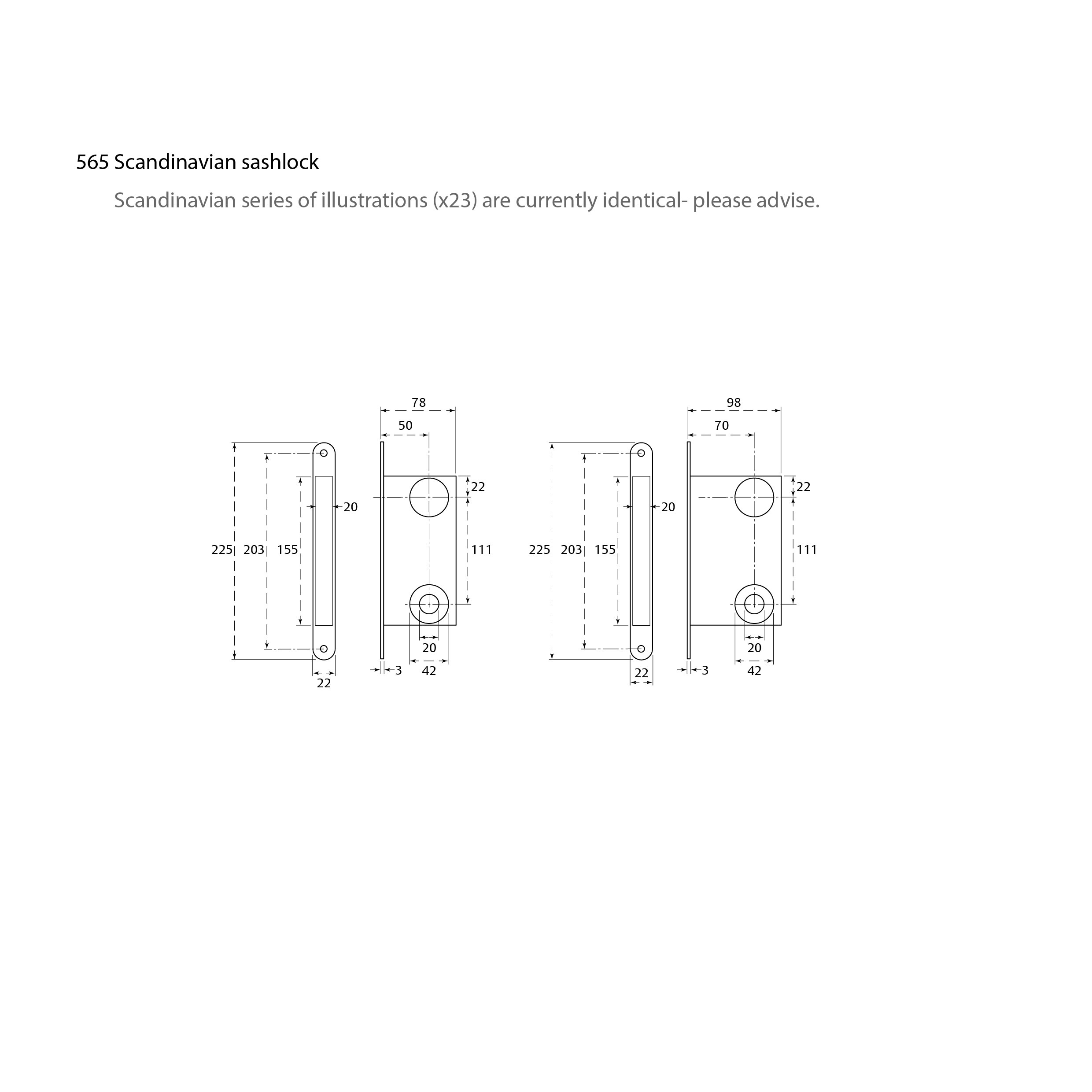

    • Dimensional Drawings
    • DoP
    NameValue
    StyleMortice
    Forend (mm)22 X 225
    Centres (mm)111mm
    HandingReversible
    FunctionSashlock
    Pack Qty1
    WarrantyNo
    Dimensions (mm)74 X 150 X 19
    MonitoringOptional
    Finish (Case)Zinc
    Forend StyleRadius
    Finish (Forend)Zinc
    Cylinder IncludedNo
    Follower Distance (mm)8
    Fire Door ApprovalYes
    Latch & Deadbolt FinishHardened Steel
    StandardsCE, EN 12209, EN 1634-1
    TypeScandinavian Lockcases
    FunctionSashlock
    ProductProduct IDAttributes
    ASSA Modular 765 sashlocks469106333057
    Finish: Satin Chrome
    Backset (mm): 50
    ASSA Modular 765 sashlocks46910662313
    Finish: Stainless Steel
    Backset (mm): 50
    ASSA Modular 765 sashlocks80307062313
    Finish: Stainless Steel
    Backset (mm): 70
