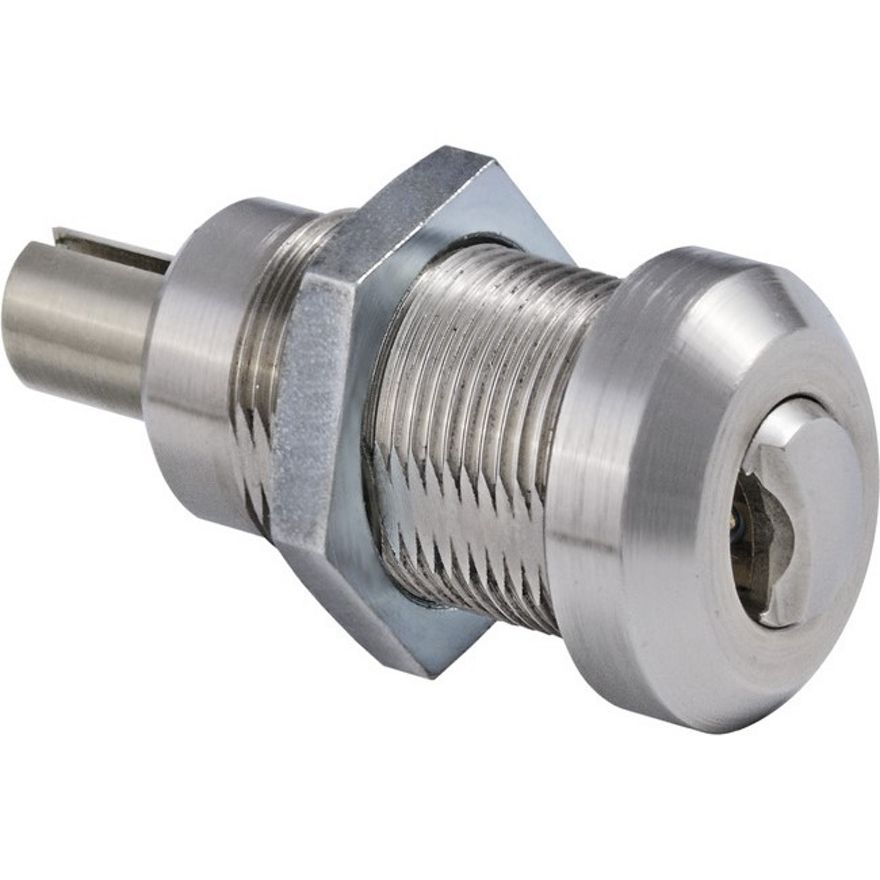

Furniture lock VERSO®CLIQ V924

Shaft diameter 19 mm - without key

Product description

Available as mechanical or electromechanical version (V=)
Closing travel 180°, key withdrawal at 0° and 180°
Brass cylinder housing components
Basic cylinder length 33 mm
Standard finish, satin nickel-plated (OF=MV)
With adapter for drive linkage
Tumbler elements with special wear-resistant alloy
Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb

Scope of delivery

1 furniture cylinder

Furniture lock VERSO®CLIQ V924

ATEX
For use in explosion-prone areas
Security Card

	Order number	Product
	V109,V=M	Key VERSO^®CLIQ
	V109,V=E1	Key VERSO^®CLIQ
	V109,V=E2	Key VERSO^®CLIQ
	V109,V=E3	Key VERSO^®CLIQ
	V109,V=B1/B2/B3	Key VERSO^®CLIQ
	V109,V=PR/PSM/PN	Key VERSO^®CLIQ
	V109,V=G1	Key VERSO^®CLIQ

Article number	OF= (Surface)	V= (Version)
V924	MV (Matt, nickel-plated)	M (Mechanical version)
	MV (Matt, nickel-plated)	E1 (Electromechanical version "Basic")
	MV (Matt, nickel-plated)	E2 (Electromechanical version "Time")

Special identification marking

Description	Info
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=)	per cylinder

Explosion protection

ATEX=	Description	Info
II 2G Ex ib IIC T4 Gb	Locking cylinders for Zone 1 hazardous areas	per cylinder

OF=	Area of application	Info
MV	For profile and locking lever cylinders	per cylinder
MC	For profile and locking lever cylinders	per cylinder
MP	For profile and locking lever cylinders	per cylinder
MG	For profile and locking lever cylinders	per cylinder

V2=	Description	Info
OHNE AUDIT	Cylinder without events list, frontal marking with symbol "§"	per cylinder
