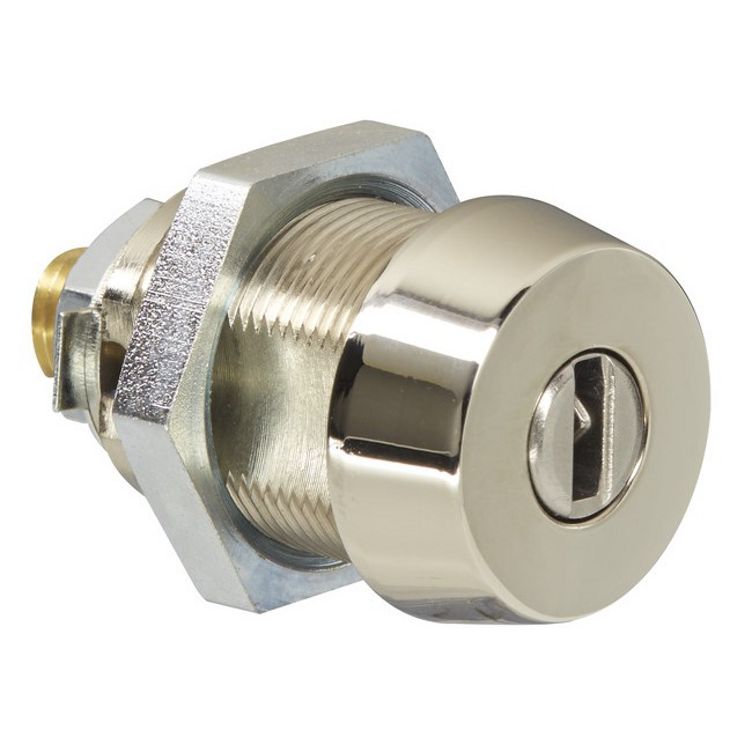

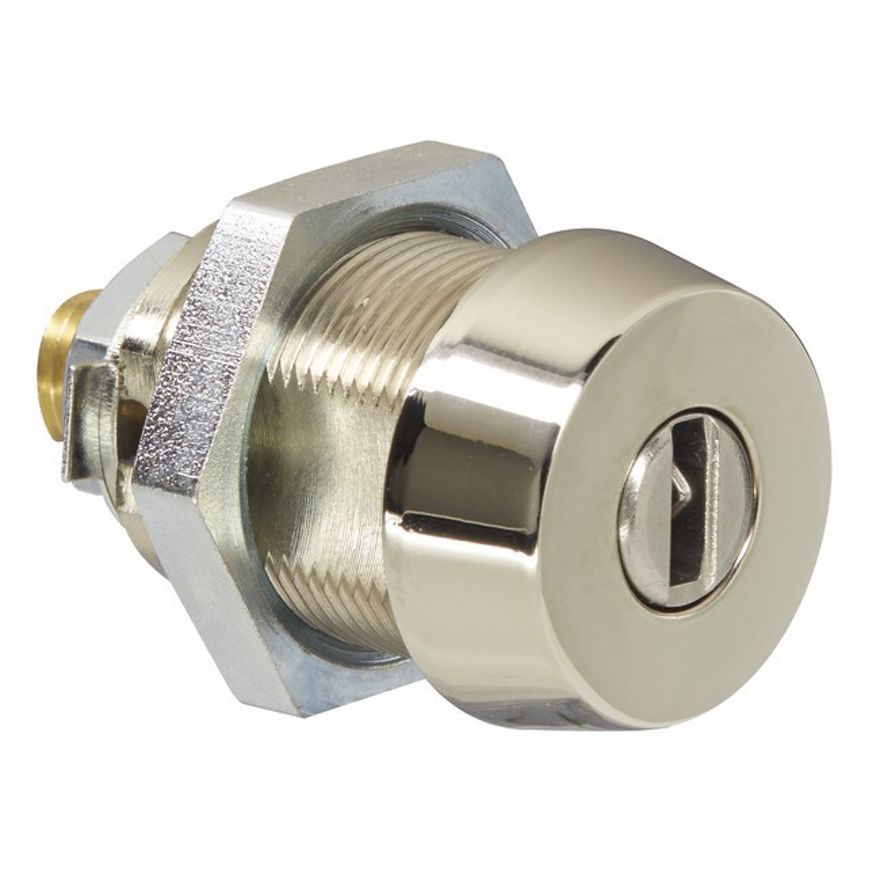

Locking lever cylinder eCLIQ NT02

21mm Diameter, laterally flattened to 17,8mm - without key, without locking lever

Product description

• Ideal for application in letter boxes, lockers and metal cabinets with cylinder lever locks 21mm
• Available as rotary secured or electronical version (V=)
• Standard with core output 8x8mm for mounting of locking levers (ABTR=M10S8)
• Optionally available with additional core outputs (ABTR=)
• Brass cylinder housing components
• Matt nickel-plated surface (OF = MV)
• Fixing with M21 x 1 x 5 housing nut
• Standard locking path and locking lever path 90º left or right (AUS=0) Key withdrawal at 0° and 180°
• Maintenance-free for up to 200,000 cycles
• Dust and rain cover available (SUR=1) IP55
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

• 1 locking lever cylinder - without locking lever
• 1 housing nut M21 x 1 x 5
• 1 core nut, M7 x 1 (for core output M7V05 and M7S6,) or M10 x 1 (for core output M10S8)

Note

• Please order locking levers and other additional parts separately - Part No. NTS1
